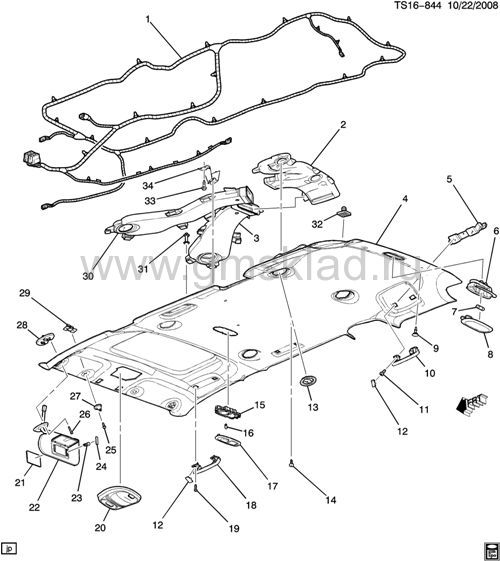

(TS16-844) - 2006 ST158(06) ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША И СОЛНЦЕЗАЩИТНЫЙ КОЗЫРЕК (ЛЮК CF5)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | | HARNESS, DM LP WRG (PART OF 4) | | 2006-2006 | | | | | 002 | | DUCT, RF AUX AIR OTLT (PART OF 4) | | 2006-2006 | | | | | 003 | | DUCT, RF AUX AIR OTLT (PART OF 4) | | 2006-2006 | | L | | | 004 | 19122055 | PANEL, HDLNG TR (INCLS 1-3, 30) (GRAY) (SUBSTRATE W/ЛЮК, XM & LESS RF RAIL AIRBAG) (USED W/3-WAY ONSTAR CONNECTOR) (FOR 1ST DES SEE 19151060) | ST158 (06) (CF5, DK7, 27I, 28I, 48I) (EXC U42) (2ND DES) | 2006-2006 | 01 | | узнать цену | | 004 | 19122057 | PANEL, HDLNG TR (INCLS 1-3, 30) (GRAY) (SUBSTRATE W/ ЛЮК, XM & RF RAIL AIRBAG) (LESS 3RD ROW LP) (USED W/3-WAY ONSTAR CONNECTOR) (FOR 1ST DES SEE 19151061) | ST158 (06) (CF5, DK7, 27I, 28I, 48I) (EXC U42) (2ND DES) | 2006-2006 | 01 | | узнать цену | | 004 | 19151060 | PANEL, HDLNG TR (INCLS 1-3, 30) (GRAY) (LESS ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122055) | ST158 (06) (CF5, DK7, 27I, 28I, 48I) (EXC U42) (1ST DES) | 2006-2006 | 01 | | узнать цену | | 004 | 19151061 | PANEL, HDLNG TR (INCLS 1-3, 30) (GRAY) (W/ROOF RAIL AIRBAG) (USED W/2-WAY ONSTAR CONNECTOR) (FOR 2ND DES SEE 19122057) | ST158 (06) (CF5, DK7, 27I, 28I, 48I) (EXC U42) (1ST DES) | 2006-2006 | 01 | | узнать цену | | 005 | | BRACKET, ASST HDL | | 2006-2006 | | | | | 006 | 88935735 | HOUSING, CARGO LP (RR DOME LAMP) | ST1 | 2006-2006 | 01 | | узнать цену | | 007 | 09431809 | BULB, 6CP TRADE #212-2 (CB XCVR HARN) (ACDelco #L212-2) | | 2006-2006 | 01 | | узнать цену | | 008 | 88935736 | LENS, CARGO LP (RR DOME LAMP) | ST1 | 2006-2006 | 01 | | узнать цену | | 009 | 89023762 | RETAINER, HDLNG TR MDL (PUSH IN) (GRAY) (14.640) | ST158 (06) | 2006-2006 | 02 | | узнать цену | | 010 | 15269144 | HANDLE, ASST (INCLS 11, 12) (GRAY) | ST158 (06) (27I, 28I, 47I, 48I) | 2006-2006 | 01 | L | узнать цену | | 010 | 15269146 | HANDLE, ASST (INCLS 11, 12) (GRAY) | ST158 (06) (27I, 28I, 47I, 48I) | 2006-2006 | 01 | R | узнать цену | | 011 | | БОЛТ, ASST HDL (PART OF 10) | | 2006-2006 | | | | | 012 | 10395950 | COVER, ASST HDL BOLT (PART OF 10, 18) (GRAY) | ST1 (27I, 28I, 47I, 48I) | 2006-2006 | AR | | узнать цену | | 013 | 15217394 | DEFLECTOR, AUX A/C AIR OTLT (GRAY) | ST158 (06) (27I, 28I, 47I, 48I) | 2006-2006 | 04 | | узнать цену | | 014 | 15111596 | RETAINER, HDLNG T/PNL (PUSH IN) | ST158 (06) (EXC U42) | 2006-2006 | 03 | | узнать цену | | 015 | 19115097 | HOUSING, DM & RDG LP | ST1 | 2006-2006 | 01 | | узнать цену | | 016 | 01999382 | BULB, (DM LP) (ACDelco #W5WLL) (LONGER LIFE)
[ЛАМПА W5WLL] | | 2006-2006 | 02 | | узнать цену | | 017 | 19115098 | BEZEL, DM & RDG LP (INCLS LENSES) | ST1 | 2006-2006 | 01 | | узнать цену | | 018 | 15269142 | HANDLE, ASST (INCLS 12, 19) (GRAY) | ST1 (27I, 28I, 47I, 48I) | 2006-2006 | 03 | | узнать цену | | 019 | | БОЛТ, ASST HDL (PART OF 18) | | 2006-2006 | | | | | 020 | | CONSOLE, RF (СМ. ГРУППУ 16.000 "КОНСОЛЬ/КРЫША" FOR DETAILED ILLUSTRATED VIEW) | | 2006-2006 | | | | | 021 | 15006352 | LABEL, INFL RST SYS WRNG (ENGLISH/FRENCH) | ST1 (06) (EXC VBW) | 2006-2006 | 02 | | узнать цену | | 021 | 15114992 | LABEL, INFL RST SYS WRNG (ENGLISH/ARABIC) | ST1 (AL0, VBX) (EXPORT) | 2006-2006 | 02 | | узнать цену | | 021 | 15116388 | LABEL, INFL RST SYS WRNG (ENGLISH/SPANISH)
[Наклейка самоклеящаяся] | ST1 (EXC VBW) | 2006-2006 | 02 | | узнать цену | | 022 | 15207768 | SUNSHADE, (INCLS 23, 24) (GRAY) | ST158 (06) (27I, 28I, 47I, 48I) (EXC DH2, VBW) | 2006-2006 | 01 | L | узнать цену | | 022 | 15207770 | SUNSHADE, (INCLS 23, 24) (GRAY) | ST158 (06) (27I, 28I, 47I, 48I) (EXC DH2, VBW) | 2006-2006 | 01 | R | узнать цену | | 022 | 15207777 | SUNSHADE, (INCLS 23, 24) (GRAY) | ST158 (06) (DH2, 27I, 28I, 47I, 48I) (EXC VBW) | 2006-2006 | 01 | L | узнать цену | | 022 | 15207778 | SUNSHADE, (INCLS 23, 24) (GRAY) | ST158 (06) (DH2, 27I, 28I, 47I, 48I) (EXC VBW) | 2006-2006 | 01 | R | узнать цену | | 023 | 09436789 | BULB, CP-.5 AMP-.9 L-.8 TRADE #37-12VOLT (PART OF 22) (ACDelco #L37) | | 2006-2006 | 04 | | узнать цену | | 024 | | LENS, S/S ILLUM MIR LP (PART OF 22) | | 2006-2006 | | | | | 025 | 89024603 | БОЛТ, S/S SUPT (8 X 8 X 20 MM) | ST158 | 2006-2006 | 02 | | узнать цену | | 026 | 11517072 | SCREW, PAN HD C/R TAP M4.2X1.41X30 AB POR (S/S RET) (8.913) | | 2006-2006 | 06 | | узнать цену | | 027 | 89024598 | RETAINER, S/S (GRAY) (PO PNL PKG & SUNSHADE PKG) | ST158 (06) (27I, 28I, 47I, 48I) | 2006-2006 | 01 | L | узнать цену | | 027 | 89024599 | RETAINER, S/S (GRAY) | ST158 (06) (27I, 28I, 47I, 48I) | 2006-2006 | 01 | R | узнать цену | | 028 | 89024851 | CLIP, S/S SUPT (RH MODULARITY CLIP) | ST158 | 2006-2006 | 01 | R | узнать цену | | 028 | 89024852 | CLIP, S/S SUPT (LH MODULARITY CLIP) | ST158 | 2006-2006 | 01 | L | узнать цену | | 029 | 03637204 | RETAINER, R/RL FRT ASST STRP BOLT (Z-AXIS PINCH TOP RET) (10.219) | ST158 | 2006-2006 | 02 | | узнать цену | | 030 | | DUCT, RF AUX AIR OTLT (PART OF 4) | | 2006-2006 | | R | | | 031 | 11588373 | SPACER, M10X52.5, NYLON 6/6 PER GMP.PA66.015, BRIGHT ORANGE (FOR ID) (HDLNG T/PNL) (16.742) | | 2006-2006 | 01 | | узнать цену | | 032 | 10280777 | RETAINER, HDLNG TR MDL (PUSH IN) (BLACK) (26.0 SQ X 7.5 DIA) (W/ VELCRO BACKING) (12.190) | ST158 (06) | 2006-2006 | 02 | | узнать цену | | 033 | 15714276 | SCREW, HWH, W/FL WA, SELF TAP, M4.2X1.41X18, 12.5 O.D., 6010M, PS (HDLNG T/PNL FRT BRKT) (8.977) | | 2006-2006 | 02 | | узнать цену | | 034 | 15099962 | BRACKET, HDLNG T/PNL FRT | ST158 (06) (CF5) | 2006-2006 | 01 | L | узнать цену | | 034 | 15099963 | BRACKET, HDLNG T/PNL FRT | ST158 (06) (CF5) | 2006-2006 | 01 | R | узнать цену |
|
|
