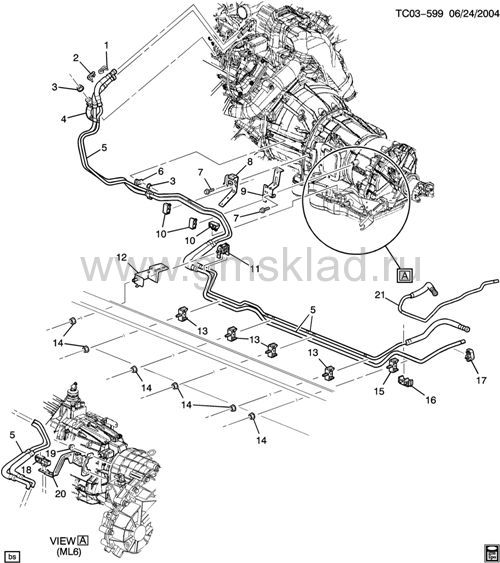

(TC03-599) - 2005 CK2,359 СИСТЕМА ТОПЛИВОСНАБЖЕНИЯ-FRONT (LLY/6.6-2 DIESEL)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 22695614 | RETAINER, FUEL RTN PIPE CONN (13 X 19 X 36MM) (ONE TUBE) (3.162)
[ОПОРНАЯ ПЛАНКА ТРУБКИ ТОПЛИВНОЙ СИСТЕМЫ] | CK2, 3 | 2005-2005 | 01 | | узнать цену | | 003 | 11514596 | ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED & RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596) | | 2001-2006 | 02 | | узнать цену | | 004 | 15035910 | BRACKET, FUEL FEED & RTN FRT HOSE (PART OF 5) (INCLS WELD STUD) | CK2, 3 (LLY) | 2004-2006 | 01 | | узнать цену | | 007 | 11570082 | БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FUEL FEED & EVAP EMIS & RTN PIPE CLIP BRKT) (ACDelco #11570082)
[БОЛТ М8] | | 2001-2006 | 02 | | узнать цену | | 008 | 15766809 | BRACKET, FUEL FEED & EVAP EMIS & RTN HOSE (132.58MM X 24.00MM) | CK2, 3 (ML6, M74) | 2001-2005 | 01 | | узнать цену | | 009 | 15013857 | BRACKET, FUEL FEED & EVAP EMIS & RTN HOSE (167.83MM X 32.00MM) | CK2, 3 (ML6, M74) | 2001-2005 | 01 | | узнать цену | | 012 | 15035910 | BRACKET, FUEL FEED & RTN FRT HOSE (PART OF 5) (INCLS WELD STUD) | CK2, 359 (LLY) | 2004-2006 | 01 | | узнать цену | | 014 | 11514519 | ГАЙКА, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (FUEL FEED & RTN FRT PIPE CLIP)
[ГАЙКА] | | 2001-2006 | 06 | | узнать цену | | 015 | | CLIP, FUEL FEED & RTN HOSE (PART OF 5) | | 2005-2005 | | | | | 018 | | CLIP, FUEL FEED & RTN HOSE (PART OF 20) | | 2005-2005 | | | | | 019 | 11514597 | ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (FUEL FEED & RTN FRT HOSE) (2.383) | | 2001-2006 | 02 | | узнать цену | | 020 | 15057730 | BRACKET, FUEL FEED & RTN FRT HOSE (INCLS 18) | K2, 3 (LLY, ML6) | 2005-2006 | 01 | | узнать цену | | 021 | | PIPE, FUEL RTN (PART OF 5) | | 2005-2005 | | | |
|
|
