| | Каталог запчастей > cadillac > Escalade Hybrid (4WD) 2012 > 04 - АВТОМАТИЧЕСКАЯ КОРОБКА ПЕРЕДАЧ > (TC04-975) 2008-2013 CK107(06) ТОРМОЗНЫЕ МАГИСТРАЛИ/INTERMEDIATE (J92) | |
|
|

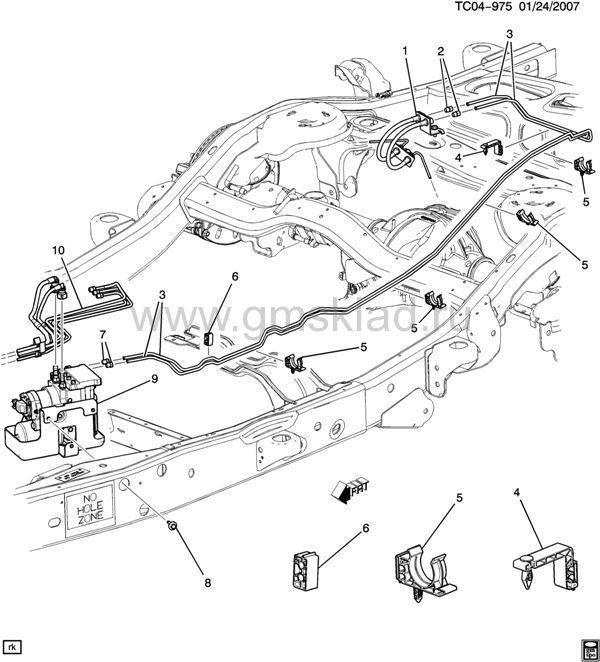

(TC04-975) 2008-2013 CK107(06) ТОРМОЗНЫЕ МАГИСТРАЛИ/INTERMEDIATE (J92)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | | PIPE, RR BRK C/OVR (SEE GROUP 04.000 "BRAKE LINES/REAR" FOR DETAILED ILLUSTRATED VIEW) | | 2008-2013 | | | | | 002 | 11518522 | NUT, HX FLARED TUBE, M12X1.0X20.5, 11 TUBE, SAE1010, GMW4707M (FRT BRK FRT PIPE) | | 2008-2013 | 02 | | узнать цену | | 003 | 88936298 | PIPE, BRK (STEEL) (1/4" X 16 FT ROLL) (BRK) | | 2008-2013 | AR | | узнать цену | | 004 | 11610034 | CLIP, RR BRK FRT PIPE (BROWN/BLACK) (8X22X44) (HOLDS (2)6.75 TUBES) (PRONG FITS 8 DIA HOLE IN 3.2 THK PNL) | CK107 (06) (J92) | 2008-2013 | 01 | | узнать цену | | 005 | 11610035 | CLIP, RR BRK FRT PIPE (BROWN/BLACK) (6.9 X 20.4/77.4 X 15) (HOLDS (1)4.8, (2)6.75 TUBES, & (1)32 HARNESS) (FITS 7.2 HOLE) | CK107 (06) (J92) | 2008-2013 | 05 | | узнать цену | | 006 | 11561578 | CLIP, FRT BRK PIPE (BLACK/GRAY) (31.72X17.07X15.0) (FOLD-OVER LOCKING ROUTING CLIP HOLDS (2)6.75 TUBES) | CK107 (06) (J92) | 2008-2013 | 01 | | узнать цену | | 007 | 11562075 | NUT, RR BRK FRT PIPE (M12X1.5X17) (INVERTED FLARE) | CK1, 2, 3 | 2011-2013 | 01 | | узнать цену | | 008 | 11589407 | BOLT, HWH, M8X1.25X35, 23.5 THD, 24 OD, 10.9, GMW3359, M-PT. (BRK PRESS MOD VLV BRKT) | | 2008-2013 | 03 | | узнать цену | | 009 | | MODULE, ELEK BRK CONT (W/BRKT & HYD BOOS & EMU & ECU) (SEE GROUP 04.000 "BRAKE CONTROL MODULE" FOR DETAILED ILLUSTRATED VIEW) | | 2008-2013 | | | | | 010 | | PIPE, BRK PRESS MOD VLV (SEE GROUP 04.000 "BRAKE LINES/FRONT PART 1" FOR DETAILED ILLUSTRATED VIEW) | | 2008-2013 | | | |
|
|
| |
|
|
|
|
|
