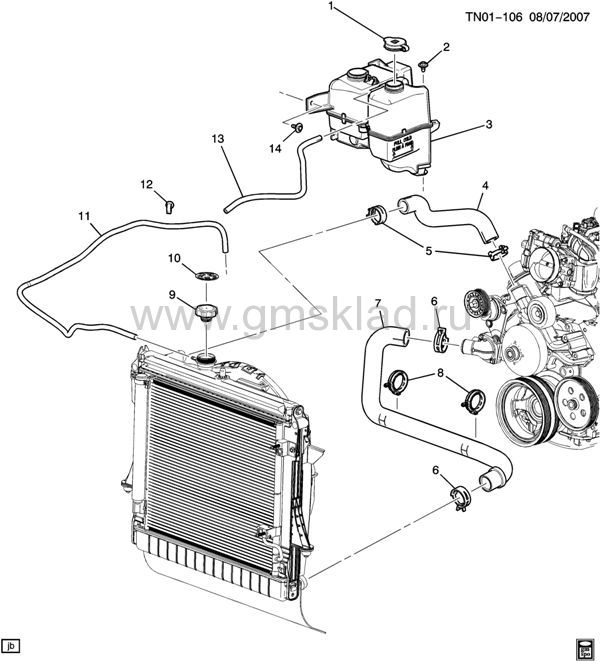

(TN01-106) 2010-2012 ST1 ШЛАНГИ РАДИАТОРА (LH9/5.3P)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15060681 | CAP, COOL RCVY RSVR (ASSEMBLY) (DEX-COOL) (SCREW ON CAP) | ST1 | 2009-2012 | 01 | | узнать цену | | 002 | 11515755 | BOLT, HEX, M8X1.25X16, 15 THD, 18 O.D., 10.9, 7114M (WSWA SOLV CNTNR) (T/W 12345493 REPLCS 25534835) | | 2009-2012 | 01 | | узнать цену | | 003 | 25792616 | CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) (SEE GROUP 16.000 "WIPER SYSTEM" FOR DETAILED ILLUSTRATED VIEW) (INTEGRATED COOLANT/WASHER CONTAINER) | ST1 | 2009-2012 | 01 | | узнать цену | | 003 | 25792616 | CONTAINER, WSWA SOLV (W/COOL RCVY RSVR) (SEE GROUP 16.000 "WIPER SYSTEM" FOR DETAILED ILLUSTRATED VIEW) (INTEGRATED COOLANT/WASHER CONTAINER) (16.065) | ST1 | 2009-2012 | 01 | | узнать цену | | 004 | 25802006 | HOSE, RAD INL | ST1 (LH9, JJA) | 2010-2012 | 01 | | узнать цену | | 005 | 11570618 | CLAMP, SPRINGBAND, 42 NOMINAL DIA, 20 THK, STL, ROBO (RAD INL HOSE) | | 2009-2012 | 02 | | узнать цену | | 006 | 11519578 | CLAMP, SPRING BAND 44.5 HOSE OD, 20 WIDTH, 6298M, 6164M (RAD OTLT HOSE) | | 2009-2012 | 02 | | узнать цену | | 007 | 25802007 | HOSE, RAD OTLT | ST1 (LH9, JJA) | 2010-2012 | 01 | | узнать цену | | 008 | 15035355 | CLIP, RAD OTLT HOSE (55MM DIA) | ST1 (LH9) | 2010-2012 | 02 | | узнать цену | | 009 | 15042975 | CAP, RAD FIL (INCLS 10) (ACDelco #RC85) | ST1 | 2009-2012 | 01 | | узнать цену | | 010 | 15063597 | LABEL, RAD FIL CAP CAUTION (PART OF 9) (DOMESTIC) | ST1 | 2009-2012 | 01 | | узнать цену | | 011 | 89018409 | HOSE, COOL RCVY RSVR INL | ST1 | 2009-2012 | 01 | | узнать цену | | 012 | 15955072 | CLIP, COOL RCVY RSVR HOSE (.650MM DIA) (2.343) | ST1 | 2009-2012 | 03 | | узнать цену | | 013 | 89018410 | HOSE, RAD OVFL | ST1 | 2009-2012 | 01 | | узнать цену | | 014 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (WSWA SOLV CNTNR) | | 2009-2012 | 02 | | узнать цену |
|
|
