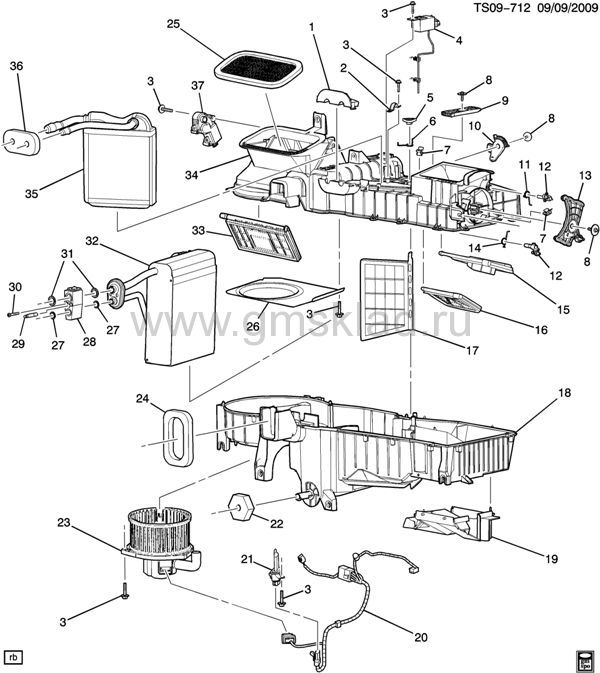

(TS09-712) 2007-2012 ST МОДУЛЬ КОНДИЦИОНЕРА И ОБОГРЕВАТЕЛЯ В СБОРЕ
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 89018348 | CLAMP, HTR CORE TUBE | ST1 | 2004-2012 | 01 | | узнать цену | | 001 | 89018348 | CLAMP, HTR CORE TUBE (8.846) | ST1 | 2004-2012 | 01 | | узнать цену | | 002 | 52474765 | CLAMP, HTR CORE (8.845) | ST1 | 2004-2012 | 01 | | узнать цену | | 003 | 11609829 | BOLT, A/C EVPR TUBE CLIP (M4.2X2.25X16) (9.786) | ST1 (03-43-53) (C60) | 2008-2012 | 01 | | узнать цену | | 004 | 89018791 | SENSOR, A/C REFRIG TEMP (ACDelco #15-50503) | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 005 | | LEVER, TEMP VLV (PART OF 17) | | 2007-2012 | | | | | 006 | 89018560 | SPRING, TEMP VLV LINK (PART OF 17) | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену | | 007 | 89018350 | CLIP, TEMP CONT & VENT CONT CBL (9.281) | ST1 (03-43-53) (C60) | 2004-2012 | 02 | | узнать цену | | 008 | 89018611 | BOLT, BLO MOT RES (BOLT- HWH, M4X2X20, 22 OD, HARDENED STEEL) | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 009 | | LEVER, PIVOT VLV (PART OF 17) | | 2007-2012 | | | | | 010 | | LEVER, DRIVE VLV (PART OF 17) | | 2007-2012 | | | | | 011 | 89018346 | SPRING, VENT OTLT VLV UPR PIV PIN | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену | | 012 | 15218263 | LEVER, MODE VLV | ST1 (03-43-53) (C60) | 2008-2012 | 01 | | узнать цену | | 013 | 89018840 | CAM, MODE CONT | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену | | 014 | 89018347 | SPRING, DEFR VLV SHF TORS | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену | | 015 | 89018341 | VALVE, VENT | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 016 | 15218259 | VALVE, DEFR (ACDelco #15-50550) | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 017 | 89019205 | VALVE, TEMP (INCLS 5, 6, 9, 10) | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену | | 018 | 15218255 | CASE, HTR & A/C EVPR & BLO LWR | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 019 | 15218257 | COVER, HTR MDL LWR | ST1 (03-53) | 2004-2012 | 01 | | узнать цену | | 020 | 89019303 | HARNESS, A/C MDL WRG | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену | | 021 | 15218254 | RESISTOR, BLO MOT (ACDelco #15-80521) | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 021 | 15218254 | RESISTOR, BLO MOT (9.215) (ACDelco #15-80521) | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 022 | | SEAL, HTR & A/C EVPR & BLO MDL DRN TUBE (*KIT1) | | 2007-2012 | | | | | 023 | 89019178 | MOTOR, BLO (W/IMPLR) (ACDelco #15-81131) (TO INSTALL:RMV KICKPANEL @ A-PILLAR OF PASS DR UNDER DASH.MAKE SURE ALIGNMENT PINS OF LWR CASE ARE THRU HOLES PROVIDED IN MOTOR FLANGE.) | ST1 (C60) | 2004-2012 | 01 | | узнать цену | | 023 | 89019178 | MOTOR, BLO (W/IMPLR) (8.855) (ACDelco #15-81131) (TO INSTALL:RMV KICKPANEL @ A-PILLAR OF PASS DR UNDER DASH.MAKE SURE ALIGNMENT PINS OF LWR CASE ARE THRU HOLES PROVIDED IN MOTOR FLANGE.) | ST1 (C60) | 2004-2012 | 01 | | узнать цену | | 024 | | SEAL, A/C EVPR (*KIT1) | | 2007-2012 | | | | | 025 | | SEAL, AIR INL (*KIT1) | | 2007-2012 | | | | | 026 | 15218258 | PLATE, BLO ORIFICE | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 027 | 52474373 | SEAL, A/C CMPR & CNDSR HOSE (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) | ST1 | 2004-2012 | 02 | | узнать цену | | 028 | 19257722 | VALVE, A/C EVPR THERMAL EXPN (ACDelco #15-51276) | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену | | 029 | 11562519 | STUD, A/C EVPR HOSE | ST1 (03-43-53) | 2006-2012 | 01 | | узнать цену | | 030 | 10308604 | BOLT, A/C EVPR TXV (M5X.8X53MM) (PART OF MODULE) (9.242) | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 031 | 89019245 | SEAL, A/C CMPR HOSE (23.5 OD X 15.5MM ID) (ACDelco #15-33898) | ST1 (C60) | 2008-2012 | 01 | | узнать цену | | 032 | 89018984 | EVAPORATOR, A/C (ACDelco #15-63413) | ST1 (03-43-53) (C60) | 2006-2012 | 01 | | узнать цену | | 033 | 15218262 | VALVE, AIR INL | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену | | 034 | 89018336 | CASE, HTR & A/C EVPR & BLO UPR | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену | | 035 | 89019085 | CORE, HTR (ACDelco #15-63539) | ST1 (03-43-53) (C60) | 2008-2012 | 01 | | узнать цену | | 036 | | SEAL, HTR CORE (*KIT1) | | 2007-2012 | | | | | 037 | 88970277 | ACTUATOR, AIR INL VLV (ACDelco #15-72794) | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | K01 | 89018661 | SEAL KIT, HTR & A/C EVPR & BLO MDL (INCLS 22, 24, 25, 36) (ACDelco #89018661) | ST1 (03-43-53) (C60) | 2004-2012 | 01 | | узнать цену |
|
|
