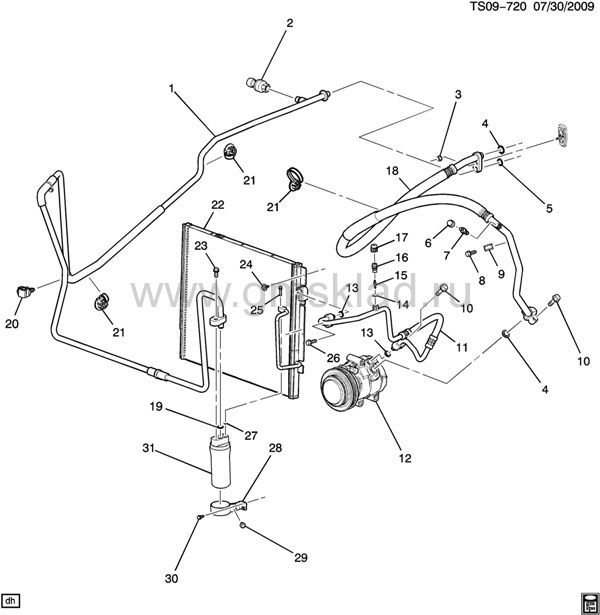

(TS09-720) 2008-2012 ST СИСТЕМА ОХЛАЖДЕНИЯ КОНДИЦИОНЕРА (LLV/2.9-9,LLR/3.7E)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 19257630 | TUBE, A/C EVPR RR (FRT & RR ONE PIECE DESIGN) (INCLS 2, 5, 20, 21) (ACDelco #15-33843) | ST1 (LLR, LLV, C60) | 2007-2012 | 01 | | узнать цену | | 002 | 22678731 | SENSOR, A/C REFRIG PRESS (PART OF 1) (HIGH PRESSURE) (ALUMINUM W/O COATING) | ST1 | 2007-2012 | 01 | | узнать цену | | 003 | 11514596 | NUT, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (A/C EVPR) (8.915) (ACDelco #11514596) | | 2007-2012 | 01 | | узнать цену | | 004 | 02724966 | SEAL, A/C CMPR & CNDSR HOSE (25MM OD X 17MM ID, 3/4IN DIA) (PART OF 18) (ACDelco #15-31101) | ST1 | 2007-2012 | 02 | | узнать цену | | 005 | 52474373 | SEAL, A/C CMPR & CNDSR HOSE (PART OF 1) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) | ST1 | 2007-2012 | 01 | | узнать цену | | 006 | 20911239 | CAP, A/C REFRIG SERV VLV (PART OF 18) (M8X1.0) (SHORT THREADED, TETHERED CAP) (ACDelco #15-34400) | ST1 | 2010-2012 | 02 | | узнать цену | | 006 | 52471377 | CAP, A/C REFRIG SERV VLV (PART OF 18) (BLACK) (M8X1.0MM) (LOW SIDE FILL PORT) (9.220) (ACDelco #15-32645) | ST1 | 2007-2012 | 01 | | узнать цену | | 007 | 03041827 | CORE, A/C REFRIG SERV VLV (INCLS SPRING, W/O O-RING, 13/64-36 THD) (PART OF 18) (W/O FITTING) (ACDelco #15-1119) | ST1 (LLR, LLV, C60) | 2007-2012 | 01 | | узнать цену | | 008 | | BOLT, A/C EVPR HOSE CLIP (PART OF 18) | | 2008-2012 | | | | | 009 | | BRACKET, A/C CMPR & CNDSR HOSE CLIP (PART OF 18) | | 2008-2012 | | | | | 010 | 11515759 | BOLT, FLG HD (M8-1.25X35)9.8 ZOR (A/C EVPR HOSE) | | 2007-2012 | 02 | | узнать цену | | 011 | 15191367 | HOSE, A/C CMPR & CNDSR (INCLS 13-17) (9.225) (ACDelco #15-32574) | ST1 (LLV, C60) | 2007-2012 | 01 | | узнать цену | | 011 | 15191366 | HOSE, A/C CMPR & CNDSR (INCLS 13-17) (9.225) (ACDelco #15-32573) | ST1 (LLR, C60) | 2007-2012 | 01 | | узнать цену | | 012 | | COMPRESSOR, A/C (SEE GROUP 09.000 "A/C COMPRESSOR ASSEMBLY" FOR DETAILED ILLUSTRATED VIEW) | | 2007-2012 | | | | | 013 | 52474373 | SEAL, A/C CMPR & CNDSR HOSE (PART OF 11) (BLACK) (SLIMLINE WASHER) (19MM OD X 11MM ID, 1/2IN DIA) (SMOOTH-SIDED) (ACDelco #15-31055) | ST1 | 2007-2012 | 02 | | узнать цену | | 014 | | SEAL, A/C REFRIG SERV VLV (O RING) (PART OF 11, 16) | | 2008-2012 | | | | | 015 | | CORE, A/C REFRIG SERV VLV (PART OF 11, 16) | | 2008-2012 | | | | | 016 | 52458184 | VALVE, A/C REFRIG SERV (INCLS O-RINGS, CORE, FEMALE FITTING & SEAL) (INCLS 14, 15) (PART OF 11) (M12X1.5 THD) (INCLS FITTING & SEAL) (ACDelco #15-5438) | ST1 | 2007-2012 | 01 | | узнать цену | | 017 | 52458768 | CAP, A/C REFRIG SERV VLV (PART OF 11) (M8X1.0) (WITH SEAL) (LONG THREADED, NON-TETHERED CAP) (ACDelco #15-33289) | ST1 | 2007-2012 | 01 | | узнать цену | | 018 | 25904918 | HOSE, A/C EVPR (INCLS 4, 6-9, 21) (ACDelco #15-33885) | ST1 | 2007-2012 | 01 | | узнать цену | | 019 | 52477087 | SEAL, A/C EVPR TUBE (PART OF 31) (16MM OD X 8MM ID) (METAL/RUBBER) (ACDelco #15-31054) | ST1 | 2007-2012 | 02 | | узнать цену | | 020 | 10317605 | CLIP, A/C EVPR TUBE (PART OF 1) (6.8MM HOLE) | ST1 | 2007-2012 | 01 | | узнать цену | | 021 | 15796446 | CLIP, A/C CNDSR TUBE (PART OF 1, 18) | ST1 | 2008-2012 | 02 | | узнать цену | | 022 | 89019343 | CONDENSER, A/C (ACDelco #15-63345) | ST1 (LLV, MA5, M30, C60) | 2007-2012 | 01 | | узнать цену | | 022 | 89019343 | CONDENSER, A/C (ACDelco #15-63345) | ST1 (LLR, M30, C60) | 2007-2012 | 01 | | узнать цену | | 023 | 11570507 | BOLT, A/C EVPR TUBE (8.900) | ST1 (LLR, LLV, C60) | 2008-2012 | 01 | | узнать цену | | 024 | 11518449 | BOLT, HFH, W/ADH, M6X1.0X16, 13.5THD, 14.2 O.D., 8.8, GMW3359 (A/C CNDSR) | | 2007-2012 | 02 | | узнать цену | | 025 | 11609989 | BOLT, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (A/C EVPR TUBE CLIP) | | 2007-2012 | 01 | | узнать цену | | 026 | 11519170 | BOLT, HFH, M8X1.25X45, 22 THD, 18 OD, 8.8, 3359GMW, REDUCED BODY. (A/C CNDSR HOSE) | | 2007-2012 | 01 | | узнать цену | | 027 | 89018408 | SEAL, A/C RCVR & DEHYDR FTG (O RING) (ACDelco #15-32984) | ST1 (LLR, LLV) | 2007-2012 | 01 | | узнать цену | | 028 | 89018407 | BRACKET, A/C RCVR & DEHYDR (INCLS 29) | ST1 (LLR, LLV) | 2007-2012 | 01 | | узнать цену | | 029 | 11514623 | BOLT, HEX W/CON WA, M6X1X20 (PART OF 28) | | 2007-2012 | 01 | | узнать цену | | 030 | 03055566 | BOLT, A/C CNDSR (9.211) | ST1 | 2007-2012 | 02 | | узнать цену | | 031 | 89019119 | RECEIVER & DEHYDRATOR, A/C (INCLS 19) (ACDelco #15-10721) (T/W LABEL 25813857) | ST1 (LLV, MA5, M30, C60) | 2007-2012 | 01 | | узнать цену | | 031 | 89019119 | RECEIVER & DEHYDRATOR, A/C (INCLS 19) (ACDelco #15-10721) (T/W LABEL 25813857) | ST1 (LLR, M30, C60) | 2007-2012 | 01 | | узнать цену |
|
|
