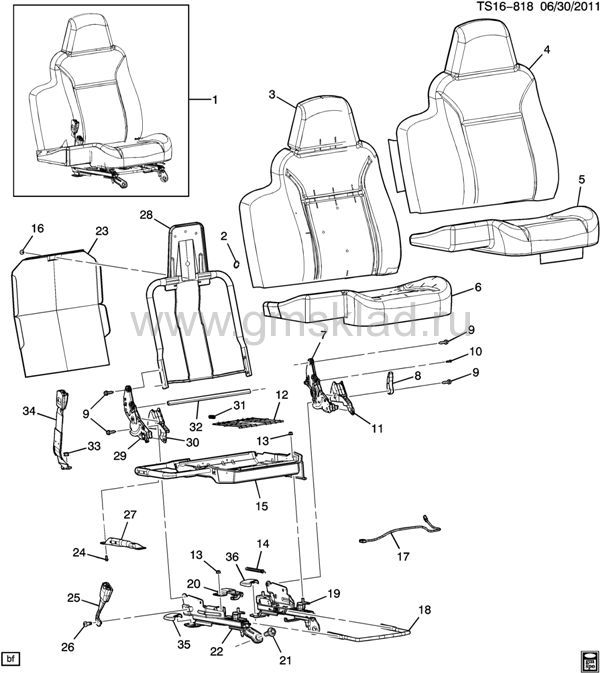

(TS16-818) 2010-2012 ST(53) СИДЕНЬЕ ВОДИТЕЛЯ/SPLIT BENCH "W" TRIMS(AM6,MA5)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20815946 | SEAT, DRVR (INCLS 2-36) (PEWTER) | ST1 (03-53) (MA5, AM6, YC3, 92W) | 2011-2012 | 01 | | узнать цену | | 002 | 06616858 | RING, HOG (3/4" C TYPE, SS, BLUNT POINT) (F/SEAT CUSH CVR HOG) | | 2004-2012 | 01 | | узнать цену | | 003 | 19257274 | PAD, D/SEAT BK | ST1 (03-53) (AM6, YC3, 92W) | 2011-2012 | 01 | | узнать цену | | 004 | 19257272 | COVER, D/SEAT BK (PEWTER) | ST1 (03-53) (AM6, YC3, 92W) | 2011-2012 | 01 | | узнать цену | | 005 | 89042784 | COVER, D/SEAT CUSH (PEWTER) | ST1 (03-53) (AM6, 92W) | 2010-2012 | 01 | | узнать цену | | 006 | 89041468 | PAD, D/SEAT CUSH | ST1 (LLR, LLV, AM6) | 2009-2012 | 01 | | узнать цену | | 007 | 89041556 | LATCH, D/SEAT BK OTR (FOLD FORWARD/NON-RECLINE) (16.682) | ST1 (03-53) (AM6, YC3, 92W) | 2009-2012 | 01 | | узнать цену | | 008 | 12377749 | HANDLE, D/SEAT BK LAT REL (PEWTER) | ST1 (03-53) (AM6, 92W) | 2008-2012 | 01 | | узнать цену | | 008 | 12377749 | HANDLE, D/SEAT BK LAT REL (PEWTER) | ST1 (03-53) (AM6, 92W) (EXC 9X5) | 2008-2012 | 01 | | узнать цену | | 009 | 12474329 | BOLT, D/SEAT RECL (M8X1.25X35) (16.679) | ST1 | 2004-2012 | 04 | | узнать цену | | 010 | 15208539 | BOLT, D/SEAT RECL HDL (M4.2X1.4X20) (HANDLE BOLTS) (16.715) | ST1 | 2004-2012 | AR | | узнать цену | | 011 | 89042776 | COVER, D/SEAT RECL FIN (PEWTER) (INBOARD) | ST1 (03-53) (92W) | 2004-2012 | 01 | L | узнать цену | | 012 | 89027021 | SPRING, D/SEAT CUSH PAD SUPT WIRE | ST1 | 2004-2012 | 01 | | узнать цену | | 013 | 11609746 | NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (D/SEAT) | | 2004-2012 | 06 | | узнать цену | | 014 | 89041466 | SPRING, D/SEAT ADJR RTN | ST1 | 2004-2012 | 01 | | узнать цену | | 015 | 89041508 | FRAME, D/SEAT CUSH | ST1 (AM6) | 2005-2012 | 01 | | узнать цену | | 016 | 88948904 | RETAINER, D/SEAT BK INR FIN PNL (22.86MM X 17.78 MM X HOLE DIA 6.35MM) (16.716) | ST1 | 2005-2012 | 01 | | узнать цену | | 017 | | HARNESS, D/SEAT POSN SEN WRG | (M30) | 2004-2012 | | | | | 018 | 20984563 | BAR, D/SEAT INR & OTR ADJR TIE | ST1 | 2004-2012 | 01 | | узнать цену | | 019 | 10388137 | ADJUSTER, D/SEAT OTR (MANUAL, 2-WAY) | ST1 | 2004-2012 | 01 | | узнать цену | | 020 | 19121283 | SENSOR, F/SEAT HORIZ ADJR POSN (INCLUDES BRACKET) (MANUAL SEATS) | ST1 (EXC AG1, AG2) | 2004-2012 | 02 | | узнать цену | | 021 | 11519940 | BOLT, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (F/SEAT) | | 2004-2012 | 08 | | узнать цену | | 022 | 89041464 | ADJUSTER, D/SEAT INR (MANUAL, 2-WAY) | ST1 | 2004-2012 | 01 | | узнать цену | | 023 | 89041558 | PANEL, D/SEAT BK FIN | ST1 (03-53) (AM6, YC3, 92W) | 2009-2012 | 01 | | узнать цену | | 024 | 12548811 | BOLT, D/SEAT A/RST (M6X1X26) | ST1 | 2004-2012 | 02 | | узнать цену | | 025 | 19258614 | BELT KIT, D/SEAT (BKL SI) (INCLS 26) (EBONY) | ST1 (03-43-53) (AM6) | 2005-2012 | 01 | | узнать цену | | 026 | | BOLT, D/SEAT BELT (BKL SI) (PART OF 25) | | 2010-2012 | | | | | 027 | 89041509 | SUPPORT, D/SEAT A/RST | ST1 (AM6) | 2004-2012 | 01 | | узнать цену | | 028 | 19257995 | FRAME, D/SEAT BK (40%) | ST1 (03-53) (AM6, YC3, 92W) | 2011-2012 | 01 | | узнать цену | | 029 | 89041557 | LATCH, D/SEAT BK INR (FOLD FORWARD/NON-RECLINE) (16.682) | ST1 (03-53) (AM6, YC3, 92W) | 2009-2012 | 01 | | узнать цену | | 030 | 89042774 | COVER, D/SEAT RECL FIN (PEWTER) (INBOARD) | ST1 (03-53) (AM6, 92I) | 2004-2012 | 01 | R | узнать цену | | 031 | 15692668 | SPRING, D/SEAT CUSH PAD SUPT | ST1 | 2004-2012 | 04 | | узнать цену | | 032 | 12377742 | ROD, D/SEAT ADJR LAT (16.720) | ST1 (03-53) | 2011-2012 | 01 | | узнать цену | | 033 | 19121871 | GROMMET, D/SEAT BELT | ST1 (03-43-53) | 2006-2012 | 01 | | узнать цену | | 034 | 19169132 | BELT KIT, F/SEAT CTR (LAT SI) (EBONY) | ST1 (03-43-53) | 2004-2012 | 01 | | узнать цену | | 035 | 15264928 | COVER, D/SEAT INR ADJR FIN (EBONY) (W/SNAP FEATURE) (MANUAL I/B) | ST1 (53) (AJ2, AM6) | 2004-2012 | 01 | | узнать цену | | 036 | 15264930 | COVER, D/SEAT OTR ADJR FIN (EBONY) | ST1 (43-53) (AM6, AR9, B30) (EXC AG1, AG2) | 2007-2012 | 01 | | узнать цену |
|
|
