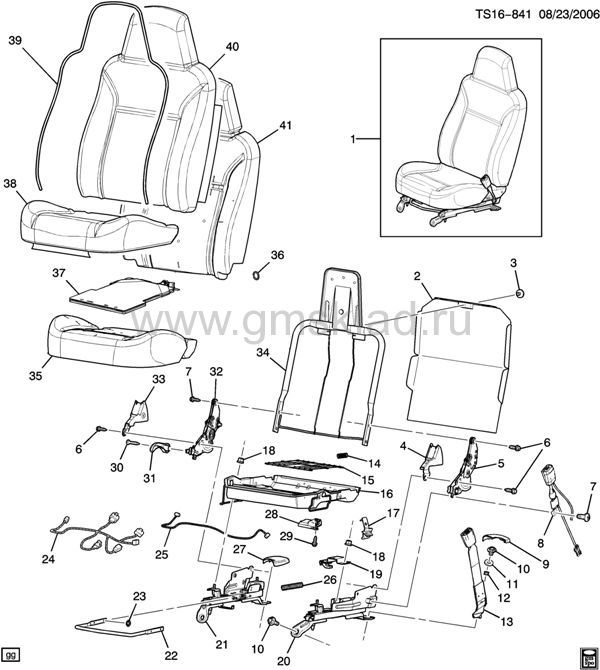

(TS16-841) 2006-2012 ST(43-53) СИДЕНЬЕ ПАССАЖИРА/SPLIT BENCH "J" TRIMS(AM6)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20816049 | SEAT, PASS (INCLS 2-41) (CASHMERE) | ST1 (53) (AL0, AM6, YC3, 31J) | 2011-2012 | 01 | | узнать цену | | 001 | 20879178 | SEAT, PASS (INCLS 2-41) (CASHMERE) | ST1 (53) (AM6, YC3, 31J) (EXC AL0) | 2011-2012 | 01 | | узнать цену | | 001 | 20981546 | SEAT, PASS (INCLS 2-41) (EBONY) | ST1 (53) (AM6, YC3, 19J) (EXC AL0) | 2012-2012 | 01 | | узнать цену | | 001 | 20981534 | SEAT, PASS (INCLS 2-41) (EBONY) | ST1 (53) (AL0, AM6, YC3, 19J) | 2012-2012 | 01 | | узнать цену | | 002 | 89041455 | PANEL, P/SEAT BK FIN | ST1 (AM6, YC3, 19J, 31J) | 2006-2012 | 01 | | узнать цену | | 003 | 15252127 | RETAINER, P/SEAT BK FIN PNL (PUSH PIN FOR SOFTBOARD PANEL TO BACK FRAME) (16.670) | ST1 | 2006-2012 | 01 | | узнать цену | | 004 | 19121875 | COVER, P/SEAT RECL FIN (CASHMERE) (INBOARD) (MANUAL) | ST1 (31I) | 2006-2012 | 01 | L | узнать цену | | 004 | 89039153 | COVER, P/SEAT RECL FIN (EBONY) (INBOARD) (MANUAL) | ST1 (19I) | 2006-2012 | 01 | L | узнать цену | | 005 | 19257279 | RECLINER, P/SEAT INR | ST1 (43-53) (AM6, YC3, 19J, 31J) (EXC AL0) | 2010-2012 | 01 | | узнать цену | | 006 | 88895203 | BOLT, P/SEAT (TO RISER) (M8X1.25X30MM) (11.561) | ST1 | 2006-2012 | 04 | | узнать цену | | 007 | | BOLT, P/SEAT BELT (BKL SI) (PART OF 8) | | 2006-2012 | | | | | 008 | 19258613 | BELT KIT, P/SEAT (BKL SI) (INCLS 7) (EBONY) | ST1 (03-43-53) (AM6) | 2006-2012 | 01 | | узнать цену | | 009 | 15264931 | COVER, P/SEAT INR ADJR FIN (EBONY) (W/SNAP FEATURE) | ST1 (53) (AJ2, AM6) | 2008-2012 | 01 | | узнать цену | | 010 | 11519940 | BOLT, HEX W/CON WA, M12X1.75X34.5, 28 OD, 6202M, 4345M, TAP, TR-PT (F/SEAT) | | 2006-2012 | 08 | | узнать цену | | 011 | 89042557 | SPACER, P/SEAT | ST1 (AM6) | 2006-2012 | 01 | | узнать цену | | 012 | 19121871 | GROMMET, P/SEAT BELT | ST1 (03-43-53) | 2006-2012 | 01 | | узнать цену | | 013 | 89022977 | BELT KIT, F/SEAT CTR (BKL SI) (EBONY) | ST1 | 2006-2012 | 01 | | узнать цену | | 014 | 15692668 | SPRING, P/SEAT CUSH PAD SUPT | ST1 | 2006-2012 | 04 | | узнать цену | | 015 | 89027021 | SPRING, P/SEAT CUSH PAD SUPT WIRE | ST1 | 2006-2012 | 01 | | узнать цену | | 016 | 10388124 | FRAME, P/SEAT CUSH (MANUAL) (W/O 3 HOLES FOR HARN. PUSH PINS, CLIP CONNECTOR) | ST1 (AM6) | 2006-2012 | 01 | | узнать цену | | 016 | 25971450 | FRAME, P/SEAT CUSH (W/3 HOLES FOR HARNESS PUSH PINS) | ST1 (AM6, 19J, 31J) | 2006-2012 | 01 | | узнать цену | | 017 | 15254765 | BRACKET, P/SEAT AIRBAG SUPPRESSION MDL | ST1 | 2006-2012 | 01 | | узнать цену | | 018 | 11609746 | NUT, HFH, M8X1.25, 8.9THK, 17.6 O.D., 10 STL, GMW3200, PREV TORQUE (P/SEAT ADJR) | | 2006-2012 | 02 | | узнать цену | | 019 | 19121283 | SENSOR, F/SEAT HORIZ ADJR POSN (INCLUDES BRACKET) (MANUAL SEATS) | ST1 (EXC AG1, AG2) | 2006-2012 | 02 | | узнать цену | | 020 | 25885647 | ADJUSTER, P/SEAT INR (MANUAL, 2-WAY, I/B, W/O ISO-FIX) | ST1 | 2006-2012 | 01 | | узнать цену | | 021 | 89041575 | ADJUSTER, P/SEAT OTR (3-WAY) | ST1 (AM6, AR9) | 2006-2012 | 01 | | узнать цену | | 022 | 20984563 | BAR, P/SEAT INR & OTR ADJR TIE | ST1 | 2006-2012 | 01 | | узнать цену | | 023 | 89026246 | NUT, F/SEAT BK ASST STRP | ST1 | 2006-2012 | AR | | узнать цену | | 024 | 19257289 | HARNESS, P/SEAT ADJR WRG | ST1 (43-53) (AM6, YC3, 19J, 31J) (EXC AL0) | 2011-2012 | 01 | | узнать цену | | 025 | 89042785 | CABLE, P/SEAT RECL ACTR | ST1 | 2006-2012 | 01 | | узнать цену | | 026 | 89041466 | SPRING, P/SEAT ADJR RTN | ST1 | 2006-2012 | 01 | | узнать цену | | 027 | 15264930 | COVER, P/SEAT OTR ADJR FIN (EBONY) | ST1 (43-53) (AM6, AR9, B30) (EXC AG2) | 2007-2012 | 01 | | узнать цену | | 028 | 19122003 | MODULE KIT, AIRBAG FRT PASS PRESENCE (W/ SEN) (INCLS 35, 37) (W/ PAD) (MANUAL) | ST1 (03-43-53) | 2006-2012 | 01 | | узнать цену | | 029 | 11571250 | BOLT, P/SEAT AIRBAG SUPPRESSION MDL (M4.2X1.41X15.7, 11 OD) | ST1 | 2011-2012 | 01 | | узнать цену | | 030 | 15208539 | BOLT, P/SEAT RECL HDL (M4.2X1.4X20) (HANDLE BOLTS) (16.715) | ST1 | 2006-2012 | AR | | узнать цену | | 031 | 22759582 | HANDLE, P/SEAT RECL (CASHMERE) (FRT SEAT MANUAL RECL HANDLE) | ST1 | 2011-2012 | 01 | | узнать цену | | 031 | 22759581 | HANDLE, P/SEAT RECL (EBONY) (FRT SEAT MANUAL RECL HANDLE) | ST1 (AM6, YC3, 193, 19J) | 2011-2012 | 01 | | узнать цену | | 032 | 89039103 | RECLINER, P/SEAT OTR (NON-DUMP) | ST1 (43-53) (AM6, YC3, 19J, 31J) | 2006-2012 | 01 | | узнать цену | | 033 | 19121874 | COVER, P/SEAT RECL FIN (CASHMERE) (OUTBOARD) | ST1 (31I) | 2006-2012 | 01 | L | узнать цену | | 033 | 89039154 | COVER, P/SEAT RECL FIN (EBONY) (OUTBOARD) (MANUAL) | ST1 (19I) | 2006-2012 | 01 | R | узнать цену | | 034 | 19257995 | FRAME, P/SEAT BK (40%) | ST1 (03-43-53) (AM6, YC3, 19J, 31J) | 2011-2012 | 01 | | узнать цену | | 035 | | PAD, P/SEAT CUSH (PART OF 28) | | 2006-2012 | | | | | 036 | 06616858 | RING, HOG (3/4" C TYPE, SS, BLUNT POINT) (F/SEAT CUSH CVR HOG) | | 2006-2012 | 01 | | узнать цену | | 037 | | SENSOR, AIRBAG FRT PASS PRESENCE (PART OF 28) | | 2006-2012 | | | | | 038 | 19121949 | COVER, P/SEAT CUSH (PEWTER/CASHMERE) | ST1 (AM6, YC3, 31J) | 2006-2012 | 01 | | узнать цену | | 038 | 19258332 | COVER, P/SEAT CUSH (EBONY) | ST1 (43-53) (AM6, YC3, 19J) | 2012-2012 | 01 | | узнать цену | | 039 | 89041462 | WIRE, P/SEAT BK PAD | ST1 | 2006-2012 | 01 | | узнать цену | | 040 | 19257290 | COVER, P/SEAT BK (CASHMERE) | ST1 (03-53) (AM6, YC3, 31J) | 2011-2012 | 01 | | узнать цену | | 040 | 19258330 | COVER, P/SEAT BK (EBONY) | ST1 (53) (AM6, YC3, 19J) | 2012-2012 | 01 | | узнать цену | | 041 | 19257292 | PAD, P/SEAT BK (W/INTEGRATED HEADREST) | ST1 (AM6, YC3, 19J, 31J) | 2011-2012 | 01 | | узнать цену |
|
|
