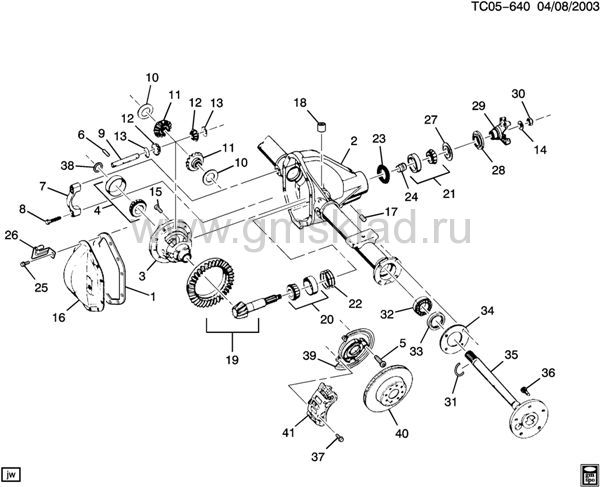

(TC05-640) - 2003-2006 C1 ЗАДНЯЯ ОСЬ В СБОРЕ 8.625 RING GEAR (MEXICO P96)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 15807693 | ПРОКЛАДКА, R/AXL HSG CVR (10 BOLT HOLES) [Прокладка крышки дифференциала] | C1 | 2003-2007 | 01 | узнать цену | |
| 002 | 88967075 | HOUSING, R/AXL (INCLS 7) | C157 (06) (L59, GT4, JH2, PPV) (EXC G80) | 2006-2006 | 01 | узнать цену | |
| 003 | CASE, DIFF (INCLS 6, 9-13) | 2003-2007 | |||||
| 004 | 25824250 | BEARING, DIFF (PART OF 3) (ACDelco #S1380) [Подшипник дифференциала] | C1 | 2003-2007 | 02 | узнать цену | |
| 005 | БОЛТ, PARK BRK | 2003-2007 | |||||
| 006 | PIN, DIFF P/GR SHF LK (PART OF 3) | 2003-2007 | |||||
| 007 | CAP, DIFF CARRIER BEARING (PART OF 2) | 2003-2006 | |||||
| 008 | 00454947 | БОЛТ, HEX .437-14X2.250 CL-2A CAD/ZC (DIFF BRG CAP) | 2003-2007 | 04 | узнать цену | ||
| 009 | SHAFT, DIFF P/GR (PART OF 3) | 2003-2007 | |||||
| 010 | WASHER, DIFF SI GR THR (PART OF 3) | 2003-2007 | |||||
| 011 | GEAR, DIFF SI (PART OF 3) | 2003-2006 | |||||
| 012 | GEAR, DIFF PINION (PART OF 3) | 2003-2007 | |||||
| 013 | 03984818 | WASHER, DIFF P/GR THR (PART OF 3) (.797 I.D. 1.70 O.D.) | C1 (EXC G80) | 2003-2007 | 01 | узнать цену | |
| 014 | 00517900 | WASHER, DIFF DRV P/GR (PART OF 29) (.890X1.625X.190) | C1 | 2003-2007 | 01 | узнать цену | |
| 015 | 14066913 | БОЛТ, RR DIFF R/GR (PART OF 19) (7/16-20X7/8) (HEX) | C1 | 2003-2007 | 10 | узнать цену | |
| 016 | COVER, R/AXL HSG | 2003-2007 | |||||
| 017 | PLUG, R/AXL HSG FILL | 2003-2007 | |||||
| 018 | 15743069 | VENT, R/AXL | C1, 2, 3 | 2003-2007 | 01 | узнать цену | |
| 019 | 12479056 | GEAR SET, DIFF RING & DRV PINION | C1 (GT5) | 2003-2007 | 01 | узнать цену | |
| 019 | 12479129 | GEAR SET, DIFF RING & DRV PINION (INCLS BOLTS, PINION, RING & SPACER) [Шестерня] | C1 (GU6) | 2005-2007 | 01 | узнать цену | |
| 019 | 12479316 | GEAR SET, DIFF RING & DRV PINION | C1 (GT4) | 2003-2007 | 01 | узнать цену | |
| 020 | 09418356 | BEARING, DIFF DRV P/GR INR (INCLS CUP AND CONE, TIMKEN, M802048-M802011, 1 5/8 IN ID X 3 1/4 IN OD X 1 1/32 IN THK) (ACDelco #S33) | C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) | 2004-2006 | 01 | узнать цену | |
| 020 | 15286375 | BEARING, DIFF DRV P/GR INR (INCLS CUP AND CONE) (ACDelco #S1371) | C1 | 2003-2007 | 01 | узнать цену | |
| 021 | 15286376 | BEARING, DIFF DRV P/GR OTR (INCLS CUP AND CONE, TIMKEN, M88048-M88010, 1 5/16 IN ID X 2 11/16 IN OD X 7/8 IN THK) (5.484) (ACDelco #S1372) [Подшипник дифференциала] | C1 | 2003-2007 | 01 | узнать цену | |
| 022 | 01394892 | SHIM KIT, DIFF DRV P/GR BRG (.020-.024" THK) [Шайба регулировочная,020-,024"] | C1 | 2003-2007 | 01 | узнать цену | |
| 022 | 01394893 | SHIM KIT, DIFF DRV P/GR BRG (.025-.029" THK) [Шайба регулировочная,025-,029"] | C1 | 2003-2007 | 01 | узнать цену | |
| 022 | 01394894 | SHIM KIT, DIFF DRV P/GR BRG (.030-.034" THK) | C1 | 2003-2007 | 01 | узнать цену | |
| 022 | 01394895 | SHIM KIT, DIFF DRV P/GR BRG (.035-.039" THK) [Шайба регулировочная,035-,039"] | C1 | 2003-2007 | 01 | узнать цену | |
| 022 | 26043991 | SHIM KIT, DIFF DRV P/GR BRG (.040-.044" THK) | C1 | 2003-2007 | 01 | узнать цену | |
| 022 | 26043992 | SHIM KIT, DIFF DRV P/GR BRG (.045-.049" THK) [Регулир.прокладка дифференциала (шайба)] | C1 | 2003-2007 | 01 | узнать цену | |
| 023 | DEFLECTOR, DIFF DRV P/GR DIRT | 2003-2007 | |||||
| 024 | 12479162 | SPACER, DIFF DRV P/GR BRG (.062-.068" THK) [Шайба дифференциала] | C1 | 2003-2007 | 01 | узнать цену | |
| 025 | БОЛТ, R/AXL HSG CVR | 2003-2007 | |||||
| 026 | 15186902 | BRACKET, RR BRK C/OVR PIPE (ACDelco #15186902) | C1 (06-36) (JH2) | 2004-2006 | 01 | узнать цену | |
| 026 | 15752275 | BRACKET, RR BRK C/OVR PIPE (8.625 R/GR) | C1 (06-36) (JH2) | 2006-2006 | 01 | узнать цену | |
| 028 | SEAL, DIFF DRV P/GR | 2003-2006 | |||||
| 029 | YOKE, DIFF DRV P/GR (INCLS 14, 27, 30) | 2003-2007 | |||||
| 030 | 88891763 | ГАЙКА, DIFF DRV P/GR (PART OF 29) (M10) [Гайка М10] | C1 | 2003-2007 | 01 | узнать цену | |
| 031 | 03833322 | LOCK, R/AXL SHF (39.43 X 19.94MM) [КОЛЬЦО ЗАПОРНОЕ ЗАДН ПОЛУОСИ] | C1 | 2003-2007 | 02 | узнать цену | |
| 032 | BEARING, R/AXL SHF | 2003-2007 | |||||
| 034 | ПРОКЛАДКА, R/AXL SHF | 2003-2006 | |||||
| 035 | 12479285 | SHAFT, R/AXL (INCLS 36) | C1 (06-36) (JH2) | 2005-2006 | 02 | узнать цену | |
| 035 | 88967062 | SHAFT, R/AXL (INCLS 36) | C157 (06) (L59, GT4, JH2, PPV) (EXC G80) | 2005-2006 | 02 | узнать цену | |
| 036 | БОЛТ, RR WHL (PART OF 35) | 2003-2007 | |||||
| 037 | 15012506 | БОЛТ, RR BRK CLPR (M14X2.0X37, 37THD) (27.3-OD., 10.9, GM6174M) (BRACKET TO FLANGE) [Болт М14х2] | C1 | 2005-2007 | 04 | узнать цену | |
| 038 | 12471362 | SHIM KIT, DIFF BRG (1.016-1.118MM RANGE) (RR AXLE) [Комплект регулир.прокладок дифференциала (2шт)] | C1 | 2003-2007 | 01 | узнать цену | |
| 038 | 12471363 | SHIM KIT, DIFF BRG (1.168-1.372MM RANGE) (RR AXLE) [Комплект регулир.прокладок дифференциала (2шт)] | C1 | 2003-2007 | 01 | узнать цену | |
| 038 | 12471364 | SHIM KIT, DIFF BRG (1.422-1.626MM RANGE) (RR AXLE) [Комплект регулир.прокладок дифференциала (2шт)] | C1 | 2003-2007 | 01 | узнать цену | |
| 038 | 12471365 | SHIM KIT, DIFF BRG (1.676-1.880MM RANGE) (RR AXLE) [Комплект регулир.прокладок дифференциала (2шт)] | C1 | 2003-2007 | 01 | узнать цену | |
| 038 | 12471366 | SHIM KIT, DIFF BRG (1.930-2.134MM RANGE) (RR AXLE) [Комплект регулир.прокладок дифференциала (2шт)] | C1 | 2003-2007 | 01 | узнать цену | |
| 038 | 12471367 | SHIM KIT, DIFF BRG (2.184-2.388MM RANGE) (RR AXLE) [Комплект регулир.прокладок дифференциала (2шт)] | C1 | 2003-2007 | 01 | узнать цену | |
| 038 | 12471368 | SHIM KIT, DIFF BRG (2.438-2.540MM RANGE) (RR AXLE) [Упорное кольцо дифференциала] | C1 | 2003-2007 | 01 | узнать цену | |
| 039 | 19178785 | SHIELD, RR BRK (СМ. ГРУППУ 4.000 "PARKING BRK ASM" FOR DETAILED ILLUSTRATED VIEW) [Тормозной щит] | C1 (06-36) (JH2) | 2004-2006 | 02 | узнать цену | |
| 040 | 25757802 | ROTOR, RR BRK (330MM DIA, 90MM LONG, STMPD 25757801, 30 MM THICK) (STMPD 25757801) (30 MM THICK) (ACDelco #177-902) [Тормозной диск] | C1 (06-36) (JH2) | 2004-2006 | 02 | узнать цену |
