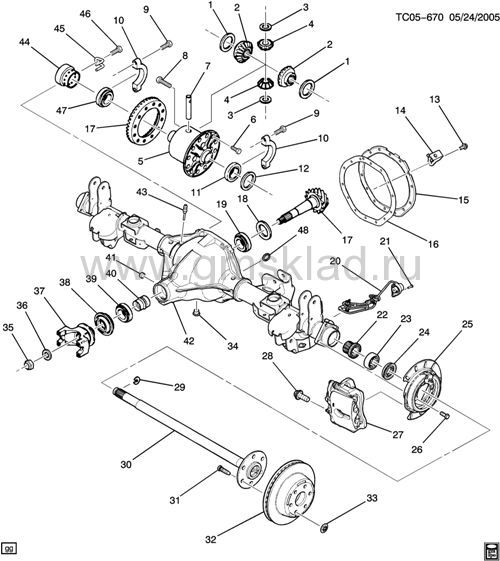

(TC05-670) - 2005-2006 C157(06) ЗАДНЯЯ ОСЬ В СБОРЕ 9.50 RING GEAR ЧАСТЬ 1 (AXN, ACTIVE BRAKE JL4)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | WASHER, DIFF SI GR THR (PART OF 5) (*KIT2) | (G80) | 2005-2006 | ||||
| 002 | GEAR, DIFF SI (*KIT2) | 2005-2006 | |||||
| 004 | GEAR, DIFF PINION (*KIT2) | 2005-2006 | |||||
| 010 | CAP, DIFF BRG (PART OF 42) | 2005-2006 | |||||
| 011 | 11505123 | BEARING, DIFF (INCLS CUP AND CONE, TIMKEN, JLM506849-JLM506811, 55MM ID X 90MM OD X 25MM THK) (ACDelco #S1198) [Подшипник дифференциала] | C157 (06) | 2005-2006 | 02 | узнать цену | |
| 017 | GEAR KIT, DIFF RING & PINION (*KIT1) | 2006-2006 | |||||
| 017 | GEAR SET, DIFF RING & DRV PINION (*KIT1) | 2005-2006 | |||||
| 019 | 09418356 | BEARING, DIFF DRV P/GR INR (INCLS CUP AND CONE, TIMKEN, M802048-M802011, 1 5/8 IN ID X 3 1/4 IN OD X 1 1/32 IN THK) (ACDelco #S33) | C157, 159 (06) (LM7, GT4, JH2, P96) (EXPORT) | 2005-2006 | 01 | узнать цену | |
| 020 | 15063810 | ДАТЧИК, RR WHL SPD (ACDelco #15063810) | C1 (06-36) (JH2, JL4) | 2005-2006 | 02 | узнать цену | |
| 021 | 15960191 | БОЛТ, WHL SPD SEN (M6X1X12) | C1, 2, 3 | 2005-2006 | 02 | узнать цену | |
| 022 | 12479286 | RING, WHL SPD SEN RELUCTOR (R/AXLE) | C1 (06-36) (JH2, JL4) | 2005-2006 | 02 | узнать цену | |
| 023 | 12479031 | BEARING, RR WHL (TORRINGTON) (ACDelco #RW20-10) [Подшипник ступицы колеса 60мм] | C157 (06) (JH2) | 2005-2006 | 02 | узнать цену | |
| 025 | SHIELD, RR BRK (СМ. ГРУППУ 04.000 "PARKING BRK ASM" FOR DETAILED ILLUSTRATED VIEW) | 2005-2006 | |||||
| 026 | БОЛТ, RR BRK BKG PLT | 2005-2006 | |||||
| 027 | CALIPER, RR BRK (СМ. ГРУППУ 04.000 "СУППОРТ ТОРМОЗА/ЗАДНИЙ" FOR DETAILED ILLUSTRATED VIEW) | 2005-2006 | |||||
| 031 | 11588811 | STUD, RR WHL (M14X1.5X24, 58 TOTAL LENGTH) [Шпилька М14] | C157 (06) | 2006-2006 | 12 | узнать цену | |
| 032 | 25757802 | ROTOR, RR BRK (330MM DIA, 90MM LONG, STMPD 25757801, 30 MM THICK) (STMPD 25757801) (30 MM THICK) (ACDelco #177-902) [Тормозной диск] | C1 (06-36) (JH2) | 2005-2006 | 02 | узнать цену | |
| 033 | RETAINER, RR BRK ROT (PUSH ON) | 2005-2006 | |||||
| 041 | 00444788 | PLUG, HEADLESS SQ SOCKET 1/2" (DIFF CARR FILL) | 2005-2006 | 01 | узнать цену | ||
| 043 | 26063647 | CONNECTOR, R/AXL VENT HOSE | C1, 2, 3 | 2005-2006 | 01 | узнать цену | |
| 047 | 11505123 | BEARING, DIFF (INCLS CUP AND CONE, TIMKEN, JLM506849-JLM506811, 55MM ID X 90MM OD X 25MM THK) (ACDelco #S1198) [Подшипник дифференциала] | C157 (06) | 2005-2006 | 02 | узнать цену | |
| 048 | 12471607 | MAGNET, R/AXL HSG CHIP COLLECTOR (4.105) (ACDelco #12471607) | C1, 2, 3 | 2005-2006 | 01 | узнать цену |
