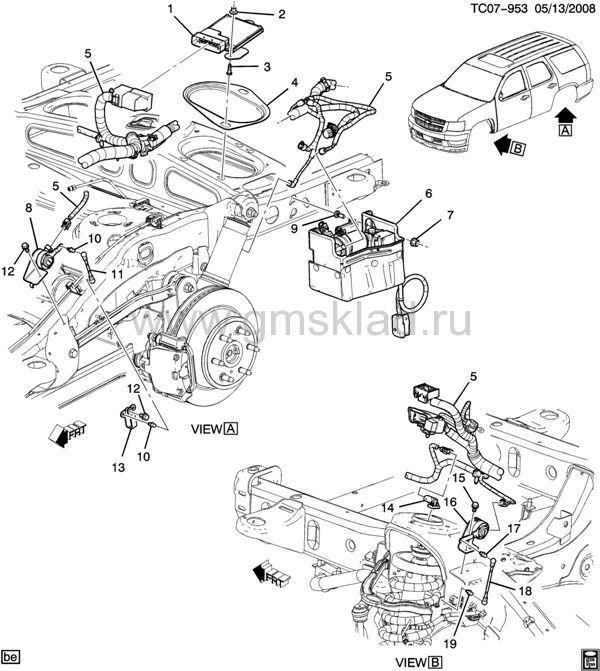

(TC07-953) 2009-2010 CK1(06) ЭЛЕМЕНТЫ УПРАВЛЕНИЯ ПОДВЕСКОЙ/ЭЛЕКТРОНИКА (MAGNERIDE Z95, HYBRID HP2)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25971218 | MODULE, ELEK SUSP CONT (INCLS 2, 3) (LABELED 25971218) | CK1 (06-36) (Z95) | 2009-2010 | 01 | | узнать цену | | 002 | | NUT, ELEK SUSP CONT MDL (PART OF 1) | | 2009-2010 | | | | | 003 | | BOLT, ELEK SUSP CONT MDL (PART OF 1) | | 2009-2010 | | | | | 004 | 25867635 | SHIELD, ELEK SUSP CONT MDL | CK107 (06) (HP2, Z95) | 2009-2010 | 01 | | узнать цену | | 005 | | HARNESS, CHAS WRG (SEE GROUP 02.000 "WIRING HARNESS/CHASSIS" FOR DETAILED ILLUSTRATED VIEW) (INCLS 14) | | 2009-2010 | | | | | 006 | 22941806 | COMPRESSOR, AUTO LVL CONT AIR (INCLS 7, 9) (SEE GROUP 07.000 "LEVEL CONTROL COMPRESSOR/AUTOMATIC" FOR DETAILED ILLUSTRATED VIEW) (CODE 1806) | CK1 (06-36) (Z55, Z95) | 2009-2010 | 01 | | узнать цену | | 007 | | NUT, AUTO LVL CONT AIR CMPR (PART OF 6) | | 2009-2010 | | | | | 008 | 20917434 | SENSOR, ELEK SUSP RR POSN (FITS ON STAMPED ARM) (INCLS 10, 11, 13) | CK1 (06-36) (Z55, Z95) | 2010-2010 | 01 | L | узнать цену | | 008 | 20917435 | SENSOR, ELEK SUSP RR POSN (FITS ON STAMPED ARM) (INCLS 10, 11, 13) | CK1 (06-36) (Z55, Z95) | 2010-2010 | 01 | R | узнать цену | | 008 | 15128648 | SENSOR, ELEK SUSP RR POSN (FITS ON CAST ARM) (INCLS 10, 11, 13) (FULL ASM) | CK1 (06-36) (Z95) | 2010-2010 | 01 | L | узнать цену | | 008 | 15128649 | SENSOR, ELEK SUSP RR POSN (FITS ON CAST ARM) (INCLS 10, 11, 13) (FULL ASM) | CK1 (06-36) (Z95) | 2010-2010 | 01 | R | узнать цену | | 009 | | BOLT, AUTO LVL CONT AIR CMPR BR (PART OF 6) | | 2009-2010 | | | | | 010 | | STUD, ELEK SUSP RR POSN SEN LINK BALL (PART OF 8, 13) | | 2009-2010 | | | | | 011 | 22189722 | LINK, ELEK SUSP RR POSN SEN (PART OF 8) | CK1 (06-36) (Z95) | 2009-2010 | 02 | | узнать цену | | 012 | 11516885 | SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP RR POSN SEN BRKT) | | 2009-2010 | 04 | | узнать цену | | 013 | 22189896 | BRACKET, ELEK SUSP FRT POSN SEN (PART OF 8) (INCLS 10) (ELEK SUSP RR POSN) (FITS ON CAST ARM) (NO COMPARABLE PART FOR STAMPED ARM) | CK1 (06-36) (Z55, Z95) | 2010-2010 | 01 | L | узнать цену | | 013 | 22189897 | BRACKET, ELEK SUSP FRT POSN SEN (PART OF 8) (INCLS 10) (ELEK SUSP RR POSN) (FITS ON CAST ARM) (NO COMPARABLE PART FOR STAMPED ARM) | CK1 (06-36) (Z55, Z95) | 2010-2010 | 01 | R | узнать цену | | 014 | | CONNECTOR, SOL-S/ABS ELEK SUSP CONT ACTR (PART OF 5) | | 2009-2010 | | | | | 015 | 11516885 | SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (ELEK SUSP FRT POSN SEN BRKT) | | 2009-2010 | 02 | | узнать цену | | 016 | 15098628 | SENSOR, ELEK SUSP FRT POSN (INCLS 17, 18) | CK1 (06-36) (Z95) | 2009-2010 | 01 | L | узнать цену | | 016 | 15098629 | SENSOR, ELEK SUSP FRT POSN (INCLS 17, 18) | CK1 (06-36) (Z95) | 2009-2010 | 01 | R | узнать цену | | 017 | | STUD, ELEK SUSP FRT POSN SEN LINK BALL (PART OF 16) | | 2009-2010 | | | | | 018 | 25379115 | LINK, ELEK SUSP FRT POSN SEN (PART OF 16) | CK1 (06-36) (Z95) | 2009-2010 | 02 | | узнать цену | | 019 | 11609404 | STUD, ELEK SUSP FRT POSN SEN LINK BALL (M6X1X9.5) (HEX, 8 DIA BALL STYLE) | CK1 (06-36) (Z95) | 2009-2010 | 02 | | узнать цену |
|
|
