| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |

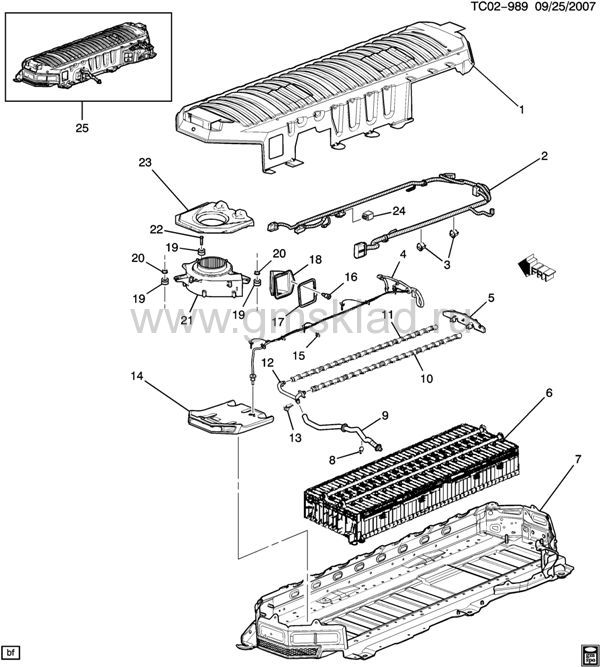

| 001 | 25926174 | COVER, DRV MOT BAT (SEE GROUP 02.000 "BATTERY/DRIVE MOTOR PART 2" FOR DETAILED ILLUSTRATED VIEW) (REAR) (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 002 | 20839874 | HARNESS KIT, DRV MOT BAT CONT MDL (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 003 | 25925265 | CLIP, BAT CBL (USED FOR HIGH VOLTAGE OUTPUT CABLE) (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 003 | 25925268 | CLIP, BAT CBL (USED FOR LOW VOLTAGE WIRE HARNESS) (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 04 | | узнать цену |
| 003 | 19116354 | CLIP, BAT CBL (*KIT2) | CK1 (9L4) | 2010-2010 | 01 | | узнать цену |
| 004 | 25870508 | HARNESS, DRV MOT BAT SEN MDL WRG (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 005 | 25926169 | RETAINER, BAT VENT HOSE (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 006 | | BATTERY, DRV MOT GEN (*KIT2) | | 2008-2013 | | | |
| 007 | | CARRIER, GEN BAT (*KIT2) | | 2008-2013 | | | |
| 008 | 25925265 | CLIP, BAT CBL (USED FOR HIGH VOLTAGE OUTPUT CABLE) (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 008 | 25925268 | CLIP, BAT CBL (USED FOR LOW VOLTAGE WIRE HARNESS) (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 04 | | узнать цену |
| 008 | 19116354 | CLIP, BAT CBL (*KIT2) | CK1 (9L4) | 2010-2010 | 01 | | узнать цену |
| 009 | 20839876 | TUBE, BAT VENT (DRAIN HOSE ASM) (*KIT2) (ACDelco #20839876) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 010 | 25925266 | TUBE, BAT VENT (TUBE ASM, BAT. NO. 1) (*KIT2) (ACDelco #25925266) | CK1 (06) (HP2) | 2008-2012 | 01 | | узнать цену |
| 011 | 25925260 | TUBE, BAT VENT (BAT NO. 2) (*KIT2) (ACDelco #25925260) | CK1 (06) (HP2) | 2008-2012 | 01 | | узнать цену |
| 012 | 25925262 | TUBE, BAT VENT (HOSE, TUBE CONNECT) (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 013 | 25926169 | RETAINER, BAT VENT HOSE (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 014 | | DUCT, DRV MOT BAT CLG AIR INL (*KIT2) | | 2008-2013 | | | |
| 015 | 25926167 | CLIP, DRV MOT BAT TEMP SEN (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 04 | | узнать цену |
| 016 | | RETAINER, BAT VENT (*KIT2) | | 2008-2013 | | | |
| 017 | | SEAL, DRV MOT BAT CLG AIR OTLT DUCT (PART OF 18) (*KIT2) | | 2008-2013 | | | |
| 018 | 25925287 | DUCT, DRV MOT GEN BAT CLG OTLT (INCLS 17) (*KIT2) (2.335) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 019 | 25926177 | INSULATOR, DRV MOT BAT VENT FAN (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 03 | | узнать цену |
| 020 | | NUT, DRV MOT BAT (*KIT2) | | 2008-2013 | | | |
| 021 | 25870518 | FAN, GEN BAT VENT (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 022 | | BOLT, DRV MOT BAT CLG BLO (*KIT2) | | 2008-2013 | | | |
| 023 | 25925258 | DUCT, DRV MOT BAT CLG BLO OTLT (*KIT2) (2.335) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 024 | 25870510 | RELAY, GEN BAT VENT FAN (*KIT2) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
| 025 | | BATTERY, DRV MOT GEN (SEE PART 2 FOR ADDITIONAL COMPONENTS) (*KIT2) | | 2008-2013 | | | |
| K02 | 19180442 | BATTERY KIT, DRV MOT (INCLS COMPLETE BATTERY ASM, NEG TERM CVR & 4 SCREWS) (INCLS 1-25) | CK1 (06) (HP2) | 2008-2013 | 01 | | узнать цену |
