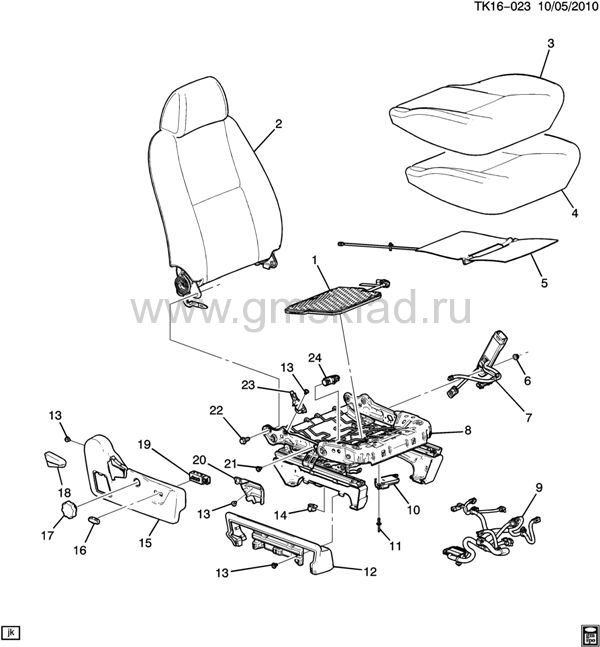

(TK16-023) 2010-2011 CK1(06) СИДЕНЬЕ ПАССАЖИРА/BUCKET-CUSHION (A95, HYBRID HP2)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25983391 | MODULE KIT, AIRBAG P/SEAT SUPPRESSION (INCLS 4, 10, 11) | CK1 (06) | 2010-2011 | 01 | | узнать цену | | 002 | 25983263 | PAD, P/SEAT BK (SEE GROUP 16.000 "PASSENGER SEAT/BUCKET-BACK" FOR DETAILED ILLUSTRATED VIEW) | CK1 (06) (A95, HP2) | 2010-2011 | 01 | | узнать цену | | 002 | 20772175 | PAD, P/SEAT BK (SEE GROUP 16.000 "PASSENGER SEAT/BUCKET-BACK" FOR DETAILED ILLUSTRATED VIEW) | CK1, 2 (06-36) (AG1, AG2, A95, 193, 19V) | 2010-2011 | 01 | | узнать цену | | 003 | 25983366 | COVER, P/SEAT CUSH (INCLS 5) (EBONY) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) | 2010-2011 | 01 | | узнать цену | | 003 | 25983368 | COVER, P/SEAT CUSH (INCLS 5) (TITANIUM) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) | 2010-2011 | 01 | | узнать цену | | 003 | 25983367 | COVER, P/SEAT CUSH (INCLS 5) (CASHMERE) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) | 2010-2011 | 01 | | узнать цену | | 004 | | PAD, P/SEAT CUSH (PART OF 1) | | 2010-2011 | | | | | 005 | | HEATER, P/SEAT CUSH (PART OF 3) | | 2010-2011 | | | | | 006 | 15035434 | NUT, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) | CK1, 2, 3 | 2010-2011 | 04 | | узнать цену | | 007 | 19178408 | BELT KIT, P/SEAT (BKL SI) (W/PRE-TENSR) (EBONY) | CK1 (06) (A95, AG2, AL0, AM1, HP2, 193) | 2010-2011 | 01 | | узнать цену | | 007 | 19178410 | BELT KIT, P/SEAT (BKL SI) (W/PRE-TENSR) (TITANIUM) | CK1 (06) (A95, AG2, AL0, AM1, HP2, 833) | 2010-2011 | 01 | | узнать цену | | 007 | 19178409 | BELT KIT, P/SEAT (BKL SI) (W/PRE-TENSR) (CASHMERE) | CK1 (06) (A95, AG2, AL0, AM1, HP2, 333) | 2010-2011 | 01 | | узнать цену | | 008 | 25944101 | ADJUSTER, P/SEAT (INCLS 21, 24) (POWER 6-WAY) (INCLS MOTORS) (W/O MEMORY) | CK1 (06) (A95, HP2) | 2010-2011 | 01 | | узнать цену | | 009 | 25892835 | HARNESS, P/SEAT WRG | CK1 (06) (AG2, AL0, AM1, A95, HP2, 193, 333, 833) | 2010-2011 | 01 | | узнать цену | | 010 | | MODULE, AIRBAG P/SEAT SUPPRESSION (PART OF 1) | | 2010-2011 | | | | | 011 | 11516807 | RIVET, POP, 4.8 DIA, 19.9 LONG, 16 OD, 5-5.25 HOLE, 1-9 GRIP RANGE, AL, BLACK (PART OF 1) | | 2010-2011 | 02 | | узнать цену | | 012 | 25993429 | COVER, P/SEAT ADJR BOLT FIN (EBONY) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) | 2010-2011 | 01 | | узнать цену | | 012 | 25993431 | COVER, P/SEAT ADJR BOLT FIN (TITANIUM) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) | 2010-2011 | 01 | | узнать цену | | 012 | 25993430 | COVER, P/SEAT ADJR BOLT FIN (CASHMERE) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) | 2010-2011 | 01 | | узнать цену | | 013 | 11610936 | SCREW, PAN, M4X0.7X9, 7 THD, 10 OD, 1018, GMW3044, TAPPING (P/SEAT) | | 2010-2011 | 14 | | узнать цену | | 014 | 11562261 | CLIP, P/SEAT WRG | CK1 (AG2, AL0, AM1, A95, HP2, 193, 333, 833) | 2010-2011 | 02 | | узнать цену | | 015 | 25886549 | COVER, P/SEAT CUSH OTR FIN PNL (EBONY) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) | 2010-2011 | 01 | | узнать цену | | 015 | 25886551 | COVER, P/SEAT CUSH OTR FIN PNL (TITANIUM) (16.720) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) | 2010-2011 | 01 | | узнать цену | | 015 | 25886550 | COVER, P/SEAT CUSH OTR FIN PNL (CASHMERE) (16.720) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) | 2010-2011 | 01 | | узнать цену | | 016 | 10325879 | KNOB, P/SEAT ADJR SW (EBONY) (11.558) | CK1, 2 (06-36) (19I, 22I, 84I) | 2010-2011 | 01 | | узнать цену | | 016 | 15222981 | KNOB, P/SEAT ADJR SW (TITANIUM) (11.558) | CK1, 2 (06-36) (83I) | 2010-2011 | 01 | | узнать цену | | 016 | 15222980 | KNOB, P/SEAT ADJR SW (CASHMERE) (11.558) | CK1, 2 (06-36) (33I) | 2010-2011 | 01 | | узнать цену | | 017 | 25830335 | LEVER, P/SEAT LUMBAR SUPT ACTR (CASHMERE) (16.716) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 313, 333) | 2010-2011 | 01 | | узнать цену | | 017 | 25830336 | LEVER, P/SEAT LUMBAR SUPT ACTR (TITANIUM) (16.716) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) | 2010-2011 | 01 | | узнать цену | | 017 | 25830334 | LEVER, P/SEAT LUMBAR SUPT ACTR (EBONY) (16.716) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) | 2010-2011 | 01 | | узнать цену | | 018 | 25830532 | HANDLE, P/SEAT RECL (EBONY) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) | 2010-2011 | 01 | | узнать цену | | 018 | 25830534 | HANDLE, P/SEAT RECL (TITANIUM) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) | 2010-2011 | 01 | | узнать цену | | 018 | 25830533 | HANDLE, P/SEAT RECL (CASHMERE) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) | 2010-2011 | 01 | | узнать цену | | 018 | 15232598 | HANDLE, P/SEAT RECL (EBONY) | CK1, 2 (06-36) (A95, 19I, 88I) | 2010-2011 | 01 | | узнать цену | | 019 | 12451495 | SWITCH, P/SEAT ADJR (6-WAY) (11.558) | CK1, 2 (06) (AE7, AZ3, A95, AG2) | 2010-2011 | 01 | | узнать цену | | 020 | 25830503 | COVER, P/SEAT INR ADJR TRK RR FIN (EBONY) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) | 2010-2011 | 01 | | узнать цену | | 020 | 25830505 | COVER, P/SEAT INR ADJR TRK RR FIN (TITANIUM) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) | 2010-2011 | 01 | | узнать цену | | 020 | 25830504 | COVER, P/SEAT INR ADJR TRK RR FIN (CASHMERE) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) | 2010-2011 | 01 | | узнать цену | | 021 | | BOLT, P/SEAT ADJR TRK RLR (PART OF 8) | | 2010-2011 | | | | | 022 | 11561962 | BOLT, P/SEAT (M10X1.25X25) (11.377) | CK1 (HP2) | 2010-2011 | 04 | | узнать цену | | 023 | 25830383 | COVER, P/SEAT RECL FIN (EBONY) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 193) | 2010-2011 | 01 | R | узнать цену | | 023 | 25830385 | COVER, P/SEAT RECL FIN (TITANIUM) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 833) | 2010-2011 | 01 | R | узнать цену | | 023 | 25830384 | COVER, P/SEAT RECL FIN (CASHMERE) | CK1 (06) (AG2, AL0, AM1, A95, HP2, 333) | 2010-2011 | 01 | R | узнать цену | | 024 | 25902538 | ACTUATOR, F/SEAT LUMBAR SUPT (PART OF 8) | CK1 (06) (HP2) | 2010-2011 | 01 | R | узнать цену |
|
|
