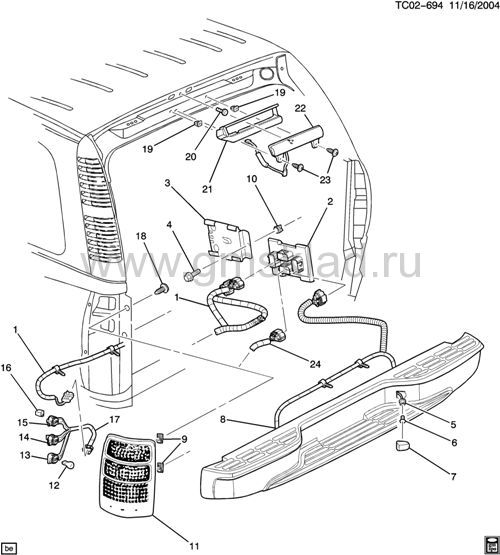

(TC02-694) - 2005-2006 CK1,2(06) ФАРЫ ЗАДНИЕ (CHEVROLET X88/G.M.C. Z88)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | HARNESS, CHAS WRG (СМ. ГРУППУ 02.000 "ЖГУТ ПРОВОДОВ/ШАССИ" FOR DETAILED ILLUSTRATED VIEW) | 2005-2006 | |||||
| 002 | 15304995 | BLOCK, RR LP WRG HARN JUNC [Шкив] | CK1, 2, 3 | 2005-2006 | 01 | узнать цену | |
| 003 | 15084541 | BRACKET, RR LP WRG HARN J/BLK | CK1, 2 (06-36) | 2005-2006 | 01 | узнать цену | |
| 004 | 11516885 | SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (RR LP WRG HARN J/BLK) | 2005-2006 | 01 | узнать цену | ||
| 005 | 88986416 | SOCKET, RR LIC PLT LP (PART OF 8) (GRAY) (2-WAY FEMALE) (W/LEADS) (2.596) (ACDelco #LS44) [Патрон лампы боков.повторителя] | CK1, 2, 3 | 2005-2006 | 02 | узнать цену | |
| 006 | 09421330 | BULB, TRADE#194, 12V, 2CP (RR LIC PLT LP) (ACDelco #L194) [ЛАМПА L194 5W] | 2005-2006 | 02 | узнать цену | ||
| 007 | 15082619 | LAMP, RR LIC PLT (BLACK) (GRAINED) (MAY NEED TO REPLACE IN PAIRS DUE TO COLOR CHANGE) | CK1, 2 (06) (VB3, V43) | 2005-2006 | 02 | узнать цену | |
| 008 | 15240525 | HARNESS, RR LIC PLT LP WRG (INCLS 5) | CK1, 2 (06) (X88, Z88) (EXC NYS) | 2005-2005 | 01 | узнать цену | |
| 009 | 05954007 | ГАЙКА, SPRING (FOR 8MM FASTENER) (PART OF 11) | 2005-2006 | 06 | узнать цену | ||
| 010 | 15042820 | ГАЙКА, CHAS RR WRG HARN BRKT (M6X1, 19X14) (9.665) [Гайка М6] | CK1, 2 | 2005-2006 | 01 | узнать цену | |
| 011 | 15224181 | LAMP, TAIL (INCLS 9, 12-17) (INCLS HARNESS) | CK1, 2 (06) (EXC T89, Y91) | 2005-2006 | 01 | L | узнать цену |
| 011 | 15224183 | LAMP, TAIL (INCLS 9, 12-17) (INCLS HARNESS) [Задний фонарь] | CK1, 2 (06) (T89) (EXPORT) | 2005-2006 | 01 | L | узнать цену |
| 011 | 15224184 | LAMP, TAIL (INCLS 9, 12-16, 24) (INCLS HARNESS) [Задний фонарь] | CK1, 2 (06) (T89) (EXPORT) | 2005-2006 | 01 | R | узнать цену |
| 011 | 15832092 | LAMP, TAIL (INCLS 9, 12-16, 24) (INCLS HARNESS) | CK1, 2 (06) (EXC T89, Y91) | 2005-2006 | 01 | R | узнать цену |
| 011 | 19169992 | LAMP, TAIL (INCLS 9, 12-17) (W/O HARNESS) (DLR MAY HAVE TO REUSE OR ORDER HARN : 16532723 FOR SERV USG ONLY.) | CK1, 2 (06) (EXC T89, Y91) | 2005-2006 | 01 | L | узнать цену |
| 011 | 19169993 | LAMP, TAIL (INCLS 9, 12-16, 24) (W/O HARNESS) (DLR MAY HAVE TO REUSE OR ORDER HARN : 16532724 FOR SERV USG ONLY.) | CK1, 2 (06) (EXC T89, Y91) | 2005-2006 | 01 | R | узнать цену |
| 012 | 12450108 | BULB, TRADE #3157KX (PART OF 11) (2.679) (ACDelco #3157KX) (LONGER LIFE KRYPTON) [Лампочка накаливания фары 15 Вт] | 2005-2006 | 06 | узнать цену | ||
| 013 | 12159662 | SOCKET, STOP & T/LP (PART OF 11, 17, 24) (GRAY) (3-WAY FEMALE) (W/LEADS) (2.594) (ACDelco #LS54) [Контактный разъем] | CK1, 2 (06-36) | 2005-2006 | 02 | узнать цену | |
| 014 | 12085330 | SOCKET, B/U LP (PART OF 11, 17, 24) (GRAY) (2-WAY FEMALE W/LEADS) (ACDelco #LS17) | CK1, 2, 3 | 2005-2006 | 02 | узнать цену | |
| 015 | 15306312 | SOCKET, RR T/SIG LP (PART OF 11, 17, 24) (2-WAY FEMALE) (WEDGE TYPE) (SEALED W/LEADS) (RT ANGLE) (ACDelco #LS97) | CK1, 2 (06-36) | 2005-2006 | 02 | узнать цену | |
| 016 | 16517099 | CAP, T/LP VENT OPG (PART OF 11) | CK1, 2, 3 | 2005-2006 | 02 | узнать цену | |
| 017 | 16526129 | HARNESS, T/LP WRG (INCLS 13-15) (PART OF 11) (FOR VEHICLES BUILT 08/22/04 & PRIOR; 2ND DES SEE 16532723.) [Жгут проводов левого фонаря] | CK1, 2 (06) (EXC T89, Y91) (1ST DES) | 2005-2005 | 01 | L | узнать цену |
| 017 | 16526129 | HARNESS, T/LP WRG (INCLS 13-15) (PART OF 11) (FOR VEHICLES BUILT 08/22/04 & PRIOR; 2ND DES SEE 16532723.) [Жгут проводов левого фонаря] | CK1, 2 (06) (T89) (1ST DES) | 2005-2005 | 01 | L | узнать цену |
| 017 | 16532723 | HARNESS, T/LP WRG (INCLS 13-15) (PART OF 11) (FOR VEHICLES BUILT AFTER 08/22/04; 1ST DES SEE 16526129.) [Жгут проводов] | CK1, 2 (06) (EXC T89, Y91) (2ND DES) | 2005-2005 | 01 | L | узнать цену |
| 017 | 16532723 | HARNESS, T/LP WRG (INCLS 13-15) (PART OF 11) (FOR VEHICLES BUILT AFTER 08/22/04; 1ST DES SEE 16526129.) [Жгут проводов] | CK1, 2 (06) (T89) (2ND DES) | 2005-2005 | 01 | L | узнать цену |
| 018 | 11508765 | SCREW, TORX, W/ RD WA, M4.2X1.41X16, 11.1 O.D., STL, NIOR (T/LP) | 2005-2006 | 04 | узнать цену | ||
| 019 | 11609857 | NUT - M4.2X1.41, SAE 1050 STL, GMW3044 (HIGH MT S/LP) | 2005-2006 | 02 | узнать цену | ||
| 020 | 15954398 | SEAL, HIGH MT S/LP BOLT HOLE PLUG | CK1, 2 (06) (E52) | 2005-2006 | 01 | узнать цену | |
| 021 | 15718603 | SEAL, HIGH MT S/LP (PART OF 22) | CK1, 2 (06) (E52) | 2005-2006 | 01 | узнать цену | |
| 022 | 15170955 | LAMP, HIGH MT STOP (INCLS 21) [Лампа стоп-сигнала] | CK1, 2 (06) (E52, X88, Z88) | 2005-2006 | 01 | узнать цену | |
| 023 | 11515007 | SCREW, TORX, W/RD WA , M4.2X1.4X25, 11.1 OD, 6010M, NO (HIGH MT S/LP) [Саморез М4.2х25] | 2005-2006 | 02 | узнать цену | ||
| 024 | 16531490 | HARNESS, T/LP WRG (INCLS 13-15) (PART OF 11) (FOR VEHICLES BUILT 08/22/04 & PRIOR; 2ND DES SEE 16532724.) [Жгут проводов] | CK1, 2 (06) (EXC T89, Y91) (1ST DES) | 2005-2005 | 01 | R | узнать цену |
| 024 | 16531490 | HARNESS, T/LP WRG (INCLS 13-15) (PART OF 11) (FOR VEHICLES BUILT 08/22/04 & PRIOR; 2ND DES SEE 16532724.) [Жгут проводов] | CK1, 2 (06) (T89) (1ST DES) (EXPORT) | 2005-2005 | 01 | R | узнать цену |
| 024 | 16532724 | HARNESS, T/LP WRG (INCLS 13-15) (PART OF 11) (FOR VEHICLES BUILT AFTER 08/22/04; 1ST DES SEE 16531490.) | CK1, 2 (06) (EXC T89, Y91) (2ND DES) | 2005-2005 | 01 | R | узнать цену |
| 024 | 16532724 | HARNESS, T/LP WRG (INCLS 13-15) (PART OF 11) (FOR VEHICLES BUILT AFTER 08/22/04; 1ST DES SEE 16531490.) | CK1, 2 (06) (T89) (2ND DES) (EXPORT) | 2005-2005 | 01 | R | узнать цену |
