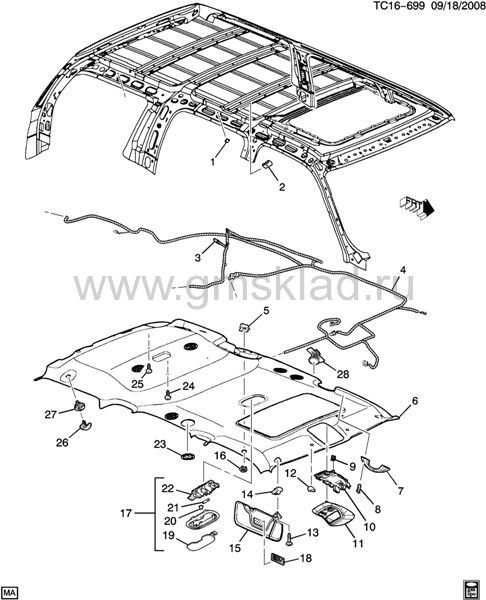

(TC16-699) - 2000-2006 CK157(06) ВНУТРЕННЯЯ ОТДЕЛКА - КРЫША (CF5)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 15763887 | RETAINER, HDLNG T/PNL (BLACK) (SQ 26.0 X DIA 7.89) (W/VELCRO) | CK157 (06) (CF5) (EXC U42) | 2005-2006 | 02 | узнать цену | |
| 002 | 11518121 | ГАЙКА, U, M6X1, MULTI THD, .5'-4.0' THK PNL (I/P DRVR KNEE BOLS REINF) | 2000-2006 | 13 | узнать цену | ||
| 003 | 12160947 | ДАТЧИК, DUCT AIR TEMP (37.54MM) (PART OF 4) (ACDelco #15-5632) [Датчик температура воздуха] | CK1, 2, 3 | 2001-2006 | 01 | узнать цену | |
| 004 | 15143657 | HARNESS, RF ACSRY WRG (INCLS 3) | CK157 (06) (CF5, CJ2, C36, DK8) (EXC U42) | 2003-2006 | 01 | узнать цену | |
| 004 | 15143668 | HARNESS, RF ACSRY WRG (INCLS 3) | CK157 (06) (CF5, CJ2, C36, DK8, U42) | 2003-2006 | 01 | узнать цену | |
| 005 | 25903301 | ASPIRATOR, I/S AIR TEMP SEN (PART OF 6) (ACDelco #15-51256) [Датчик температуры воздуха] | CK1, 2 (06) | 2003-2006 | 02 | узнать цену | |
| 006 | 15787433 | PANEL, HDLNG TR (INCLS 5, 7, 8, 12, 17, 19-23, 26, 27) (SHALE) [Панель в сборе] | CK157 (06) (CF5, CJ2, C36, X88, 52I, 92I) (EXC U42) | 2005-2006 | 01 | узнать цену | |
| 006 | 15787436 | PANEL, HDLNG TR (INCLS 5, 7, 8, 12, 17, 19-23, 26, 27) (SHALE) [Внутренняя панель крыши кузова] | CK157 (06) (CF5, CJ2, C36, U42, X88, 52I, 92I) | 2004-2006 | 01 | узнать цену | |
| 007 | 15044366 | HANDLE, ASST (PART OF 6) (INCLS 8) (SHALE) (INCLUDES RETAINER) | CK1 (06-36) (52I, 92I) | 2004-2005 | 01 | узнать цену | |
| 007 | 15048750 | HANDLE, ASST (PART OF 6) (INCLS 8) (PEWTER) (FRT PASS SIDE) (INCLUDES RETAINERS) | CK157 (06) (92I) | 2001-2006 | 01 | узнать цену | |
| 008 | 15748479 | RETAINER, GARNISH MOLDING TYPE, FITS SLOT 6.0MM, SPR STL, ZC (PART OF 6, 7) | 2000-2006 | 01 | узнать цену | ||
| 009 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 10) [Фиксатор крышки панели крыши кузова] | 2000-2006 | 02 | узнать цену | ||
| 010 | 10382915 | RETAINER, RF CNSL (PUSH IN) (INCLS 9) | CK1, 2 (06) (CF5, DK8) | 2000-2006 | 01 | узнать цену | |
| 011 | CONSOLE, RF (СМ. ГРУППУ 16.000 "КОНСОЛЬ/КРЫША" FOR DETAILED ILLUSTRATED VIEW) | 2000-2006 | |||||
| 012 | 15186286 | RETAINER, S/S (PART OF 6) (SHALE) (OPENING FACES AWAY FROM FASTENER) | CK1, 2 (06) (69I) | 2004-2006 | 02 | узнать цену | |
| 013 | 11516440 | SCREW (PART OF 15) | 2000-2006 | 06 | узнать цену | ||
| 014 | COVER, S/S SUPT BOLT (PART OF 15) | 2000-2006 | |||||
| 015 | 15269592 | SUNSHADE, (INCLS 13, 14, 18) (SHALE) (WHEN REPLACING W/15269592 MAY REPL RH ALSO) (CUSTOMER MAY BE REQUIRED TO REPLACE BOTH SIDES TO MAINTAIN APPEARANCE) | CK1, 2 (06) (DH6, 15I) (EXC ULT) | 2005-2005 | 01 | L | узнать цену |
| 015 | 15269592 | SUNSHADE, (INCLS 13, 14, 18) (SHALE) (WHEN REPLACING W/15269592 MAY REPL RH ALSO) (CUSTOMER MAY BE REQUIRED TO REPLACE BOTH SIDES TO MAINTAIN APPEARANCE) | CK1, 2 (06) (DH6, 52I) | 2005-2005 | 01 | L | узнать цену |
| 015 | 15269592 | SUNSHADE, (INCLS 13, 14, 18) (SHALE) (WHEN REPLACING W/15269592 MAY REPL RH ALSO) (CUSTOMER MAY BE REQUIRED TO REPLACE BOTH SIDES TO MAINTAIN APPEARANCE) | CK1, 2 (06) (DH6, X88, Z88, 92I) | 2005-2005 | 01 | L | узнать цену |
| 015 | 15269595 | SUNSHADE, (INCLS 13, 14, 18) (SHALE) (WHEN REPLACING VISOR W/15269595 DLR MAY REPL LH VISOR ALSO) | CK1, 2 (06) (DH6, 15I) (EXC ULT) | 2005-2005 | 01 | R | узнать цену |
| 015 | 15269595 | SUNSHADE, (INCLS 13, 14, 18) (SHALE) (WHEN REPLACING VISOR W/15269595 DLR MAY REPL LH VISOR ALSO) | CK1, 2 (06) (DH6, 52I) | 2005-2005 | 01 | R | узнать цену |
| 015 | 15269595 | SUNSHADE, (INCLS 13, 14, 18) (SHALE) (WHEN REPLACING VISOR W/15269595 DLR MAY REPL LH VISOR ALSO) | CK1, 2 (06) (DH6, X88, Z88, 92I) | 2005-2005 | 01 | R | узнать цену |
| 015 | 15269598 | SUNSHADE, (INCLS 13, 14, 18) (SHALE) (WHEN REPL VISOR W/15269598 DLR MAY REPL RH VISOR ALSO) | K1 (06) (DH6, ULT, 15I) | 2005-2005 | 01 | L | узнать цену |
| 015 | 15269600 | SUNSHADE, (INCLS 13, 14, 18) (SHALE) (WHEN REPL VISOR W/15269600 DLR MAY REPL LH VISOR ALSO) | K1 (06) (DH6, ULT, 15I) | 2005-2005 | 01 | R | узнать цену |
| 016 | 15029309 | GRILLE, I/S AIR TEMP SEN ASPIRATOR (GRAPHITE) | CK1, 2 (06-36) (92I) | 2003-2005 | 01 | узнать цену | |
| 016 | 15044378 | GRILLE, I/S AIR TEMP SEN ASPIRATOR (SHALE) | CK1, 2, 3 (15I, 52I, 69I, 92I) | 2003-2006 | 02 | узнать цену | |
| 018 | LABEL, INFL RST SYS MDL WRNG (PART OF 15) | 2000-2006 | |||||
| 019 | 15032588 | LENS, DM & RDG LP (PART OF 6, 17) (3 BULB STYLE) | CK1, 2, 3 | 2001-2006 | 01 | узнать цену | |
| 020 | 15166059 | PUSHBUTTON, RDG LP SW (PART OF 6, 17) (EBONY) | CK1, 2, 3 | 2001-2006 | 02 | узнать цену | |
| 021 | 12450074 | BULB, TRADE #578 (PART OF 6, 17, 22) (ACDelco #578) [Патрон лампы] | 2000-2006 | 03 | узнать цену | ||
| 022 | 15032587 | HOUSING, DM & RDG LP (PART OF 6, 17) (INCLS 21) | CK1, 2, 3 | 2001-2006 | 01 | узнать цену | |
| 023 | 15124270 | DEFLECTOR, AUX A/C AIR OTLT (PART OF 6) (PEWTER) | CK1, 2 (06) (92I) | 2002-2006 | AR | узнать цену | |
| 023 | 15124271 | DEFLECTOR, AUX A/C AIR OTLT (PART OF 6) (SHALE) | CK1, 2 (06) (15I, 52I) | 2002-2006 | AR | узнать цену | |
| 023 | 15124271 | DEFLECTOR, AUX A/C AIR OTLT (PART OF 6) (SHALE) | CK1, 2 (06) (X88, Z88, 92I) | 2002-2006 | AR | узнать цену | |
| 024 | 15975244 | RETAINER, HDLNG T/PNL (BLACK) (2.559) | CK157 (06) | 2000-2005 | 01 | узнать цену | |
| 025 | 15768222 | RETAINER, HDLNG FRT T/PNL (PUSH IN) (BLACK) [Фиксатор обшивки крыши] | CK1, 2 (06) (CF5) | 2000-2006 | 02 | узнать цену | |
| 026 | 15760164 | HOOK, COAT (RR CARGO AREA) (PART OF 6) (INCLS 27) (SHALE) | CK157 (06) (15I, 52I, 92I) | 2002-2005 | 02 | узнать цену | |
| 027 | 15603591 | RETAINER, COAT HOOK (PUSH IN) (PART OF 6, 26) (16.585) | CK1, 2 (06) | 2000-2006 | 01 | узнать цену |
