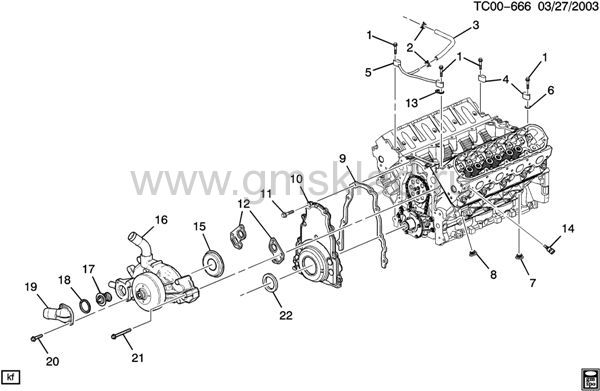

(TC00-666) - 2004 N2 ДВИГАТЕЛЬ В СБОРЕ-6.0L V8 PART 3 FRONT COVER & COOLING (LQ4/6.0U)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 11588714 | БОЛТ, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (ENG COOL AIR BL PIPE) [БОЛТ] | 2004-2004 | 04 | узнать цену | ||
| 002 | 25526358 | CLAMP, SPRG BAND, 14.2MM, 9/16 OD HOSE, POR (PART OF 5) | 2004-2004 | 02 | узнать цену | ||
| 003 | 12570528 | HOSE, ENG COOL AIR BL (PART OF 5) | N257 (06) (LQ4) | 2004-2004 | 01 | узнать цену | |
| 004 | 12602540 | COVER, ENG COOL AIR BL PIPE HOLE (INCLS 6) (INCL SEALS) | N257 (06) (LQ4, M32, NC1, NT9) | 2004-2004 | 02 | узнать цену | |
| 005 | 12604711 | PIPE, ENG COOL AIR BL (INCLS 2, 3, 13) | N257 (06) (LQ4) | 2004-2004 | 01 | узнать цену | |
| 006 | 12602541 | SEAL, ENG COOL AIR BL PIPE (O RING) (PART OF 4) | N2 (LQ4) | 2004-2004 | 01 | узнать цену | |
| 007 | 12561663 | PLUG, ENG BLK COOL DRN HOLE (M28X1.25X12.4, BRASS) | N257 (06) (LQ4) | 2004-2004 | 02 | L | узнать цену |
| 008 | 11588949 | PLUG, M16X1.5X14, 24 OD, SAE 1010 STL, GMW3044, W/ AL WASHER (ENG BLK COOL DRN HOLE) [ПРОБКА ЗАМКА] | 2004-2004 | 01 | узнать цену | ||
| 009 | 12574294 | GASKET, ENG FRT CVR (PART OF 10) [ПРОКЛАДКА] | N257 (06) (LQ4) | 2004-2004 | 01 | узнать цену | |
| 010 | 12561243 | COVER, ENG FRT (INCLS 9, 11, 22) (INCLS CVR, SEAL, GSKT, BOLT) | N257 (06) (LQ4) | 2004-2004 | 01 | узнать цену | |
| 011 | 11515758 | БОЛТ, HFH, M8X1.25X30, 28THD, 18 O.D., MACH PT, 10.9, 7114M (PART OF 10) [БОЛТ, М8Х1.25Х31.5] | 2004-2004 | 12 | узнать цену | ||
| 012 | 12559271 | GASKET, W/PMP (2 OBLONG & 1 ROUND MTG HOLES, AT PUMP MANIFOLD) (PART OF 16) (ACDelco #12559271) | N257 (06) (LQ4) | 2004-2004 | 02 | узнать цену | |
| 013 | 12551933 | SEAL, ENG COOL AIR BL PIPE (O RING) (PART OF 5) [САЛЬНИК] | N2 (LQ4) | 2004-2004 | 01 | узнать цену | |
| 014 | 12608814 | ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (ACDelco #213-4333) | N2 | 2004-2004 | 01 | узнать цену | |
| 014 | 12608814 | ДАТЧИК, ENG COOL TEMP (2-WAY MALE) (1.150) (ACDelco #213-4333) | N2 | 2004-2004 | 01 | узнать цену | |
| 014 | 19236568 | ДАТЧИК, ENG COOL TEMP (ACDelco #213-4514) (ALL MAKES) | N257 (06) (LQ4) | 2004-2004 | 01 | узнать цену | |
| 015 | PLUG, W/PMP (PART OF 16) | 2004-2004 | |||||
| 016 | 89017439 | PUMP KIT, WAT (INCLS 12, 15, 17-20) (INCLS PUMP, PIPE, PULLEY, THERMOSTAT, SEAL, BOLT, INLET, GASKETS) (ACDelco #251-680) (MUST BE SERVICED WITH 2004 OR NEWER PARTS ONCE PUMP IS REPLACED) | N257 (06) (LQ4, M32, NC1, NT9) | 2004-2004 | 01 | узнать цену | |
| 017 | 12600171 | THERMOSTAT, ENG COOL (SEAL NOT INCLUDED) (PART OF 16, 19) (ACDelco #131-156) [ТЕРМОСТАТ] | N257 (06) (LQ4, M32, NC1, NT9) | 2004-2004 | 01 | узнать цену | |
| 018 | 12570307 | SEAL, WAT INL (PART OF 16, 19) (ACDelco #131-169) [ГЕРМЕТИК ОХЛАЖД. ЖИДКОСТЬ] | N257 (LQ4, M32, NC1, NT9) | 2004-2004 | 01 | узнать цену | |
| 019 | 12600172 | INLET, W/PMP (INCLS 17, 18) (PART OF 16) (INCLS INLET, SEAL, THERMOSTAT) | N257 (06) (LQ4) | 2004-2004 | 01 | узнать цену | |
| 020 | 11516480 | БОЛТ, W/PMP INL (PART OF 16) (M6X1X25-10MM SOC) | N257 (06) (LQ4) | 2004-2004 | 01 | узнать цену | |
| 021 | 12551926 | БОЛТ, W/PMP (M8X1.25X83) [БОЛТ-M8 X 1.25 X 82.6] | N257 (06) (LQ4) | 2004-2004 | 06 | узнать цену | |
| 022 | 12585673 | SEAL, CR/SHF FRT OIL (PART OF 10) (0.207) (ACDelco #296-02) [ПРОКЛАДКА] | N257 (06) (LQ4) | 2004-2004 | 01 | узнать цену |
