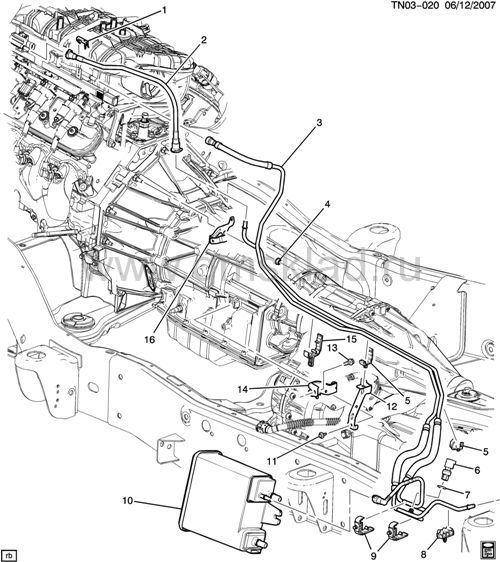

| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 25654373 | RETAINER, FUEL FEED HOSE CONN (PLASTIC) | N2 | 2008-2009 | 01 | | узнать цену |
| 002 | 12617169 | TUBE, EVAP EMIS CNSTR PURGE | N2 (L9H) | 2009-2009 | 01 | | узнать цену |
| 003 | 25950020 | HOSE, FUEL FEED & EVAP EMIS & RTN (INCLS 5-9, 12, 15, 16) | N2 | 2008-2009 | 01 | | узнать цену |
| 004 | 11514596 | ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (FUEL FEED & RTN FRT HOSE BRKT) (8.915) (ACDelco #11514596) | | 2008-2009 | 01 | | узнать цену |
| 005 | 15001983 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) (3 HOLES W/PUSH PIN) | N2 | 2008-2009 | 01 | | узнать цену |
| 005 | 15011436 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) (2.559) | N2 | 2008-2009 | 01 | | узнать цену |
| 005 | 15022177 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 03 | | узнать цену |
| 005 | 15112820 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 03 | | узнать цену |
| 006 | 15239857 | ДАТЧИК, FUEL PRESS (PART OF 3) (PART OF HOSE ASSEMBLY 25813125 LABELED 3125) (3.682) (ACDelco #213-3837) | N2 | 2008-2009 | 01 | | узнать цену |
| 006 | 15239857 | ДАТЧИК, FUEL PRESS (PART OF 3) (PART OF HOSE ASSEMBLY 25813125 LABELED 3125) (ACDelco #213-3837) | N2 | 2008-2009 | 01 | | узнать цену |
| 007 | 15778699 | SEAL, FUEL PRESS SEN (O RING) (PART OF 3) | N2 | 2008-2009 | 01 | | узнать цену |
| 008 | 15001983 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) (3 HOLES W/PUSH PIN) | N2 | 2008-2009 | 01 | | узнать цену |
| 008 | 15011436 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) (2.559) | N2 | 2008-2009 | 01 | | узнать цену |
| 008 | 15022177 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 03 | | узнать цену |
| 008 | 15112820 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 03 | | узнать цену |
| 009 | 15001983 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) (3 HOLES W/PUSH PIN) | N2 | 2008-2009 | 01 | | узнать цену |
| 009 | 15011436 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) (2.559) | N2 | 2008-2009 | 01 | | узнать цену |
| 009 | 15022177 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 03 | | узнать цену |
| 009 | 15112820 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 03 | | узнать цену |
| 010 | 12573649 | CANISTER, EVAP EMIS (SEE GROUP 03.000 "VAPOR CANISTER & RELATED PARTS" FOR DETAILED ILLUSTRATED VIEW) (ACDelco #215-457)
[ТОПЛИВОИСПАРИТЕЛЬНЫЙ БАК] | N2 | 2008-2009 | 01 | | узнать цену |
| 011 | 11561674 | БОЛТ, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (FUEL FEED & RTN FRT HOSE BRKT)
[БОЛТ М6] | | 2008-2009 | 01 | | узнать цену |
| 012 | 15124945 | BRACKET, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 01 | | узнать цену |
| 013 | 11570082 | БОЛТ, HFH, M8X1.25X22, 19 THD, 18 OD, 10.9, GMW3359 (FUEL FEED & EVAP EMIS & RTN PIPE CLIP BRKT) (ACDelco #11570082)
[БОЛТ М8] | | 2008-2009 | 01 | | узнать цену |
| 014 | 25811807 | BRACKET, FUEL FEED & EVAP EMIS & RTN HOSE | N2 | 2008-2009 | 01 | | узнать цену |
| 015 | 15001983 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) (3 HOLES W/PUSH PIN) | N2 | 2008-2009 | 01 | | узнать цену |
| 015 | 15011436 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) (2.559) | N2 | 2008-2009 | 01 | | узнать цену |
| 015 | 15022177 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 03 | | узнать цену |
| 015 | 15112820 | CLIP, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 03 | | узнать цену |
| 016 | 15124945 | BRACKET, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 01 | | узнать цену |
| 016 | 25811807 | BRACKET, FUEL FEED & EVAP EMIS & RTN HOSE (PART OF 3) | N2 | 2008-2009 | 01 | | узнать цену |
