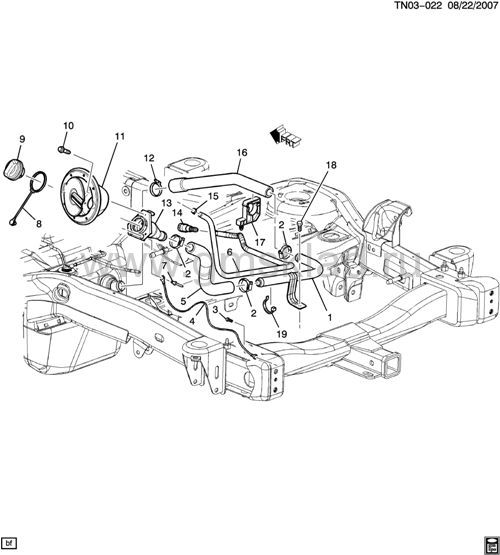

(TN03-022) - 2008-2009 N2 ЗАПРАВОЧНАЯ ГОРЛОВИНА PIPES & HOSES
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25784809 | PIPE, F/TNK FIL (INCLS 2, 4-7, 12-17, 19) | N2 (L9H) | 2009-2009 | 01 | | узнать цену | | 002 | 11610235 | CLAMP, HEX HD WORM GEAR, TYPE F, SIZE 16, 38MM OPEN, SS (PART OF 1) (3.003) | | 2008-2009 | 03 | | узнать цену | | 003 | 11588337 | БОЛТ, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (CHAS WRG HARN TRLR LEAD)
[БОЛТ М8] | | 2008-2009 | 01 | | узнать цену | | 004 | 12337820 | STRAP, 15" TIE STRAP (PART OF 1) (ACDelco #12337820) | | 2008-2009 | 02 | | узнать цену | | 005 | | HOSE, F/TNK FIL (PART OF 1) | | 2008-2009 | | | | | 006 | | HOSE, EVAP EMIS (PART OF 1) | | 2008-2009 | | | | | 007 | | RIVET, F/TNK FIL PIPE GND STRP (PART OF 1) | | 2008-2009 | | | | | 009 | 25820825 | CAP, F/TNK FIL (INCLS 8) (BUTTON TYPE TETHER) (ACDelco #GT289) | N2 (L9H) | 2009-2009 | 01 | | узнать цену | | 009 | 25906063 | CAP, F/TNK FIL (INCLS 8) (ACDelco #GT318) | N2 (L9H) | 2009-2009 | 01 | | узнать цену | | 010 | 11589012 | БОЛТ, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (F/TNK FIL PIPE SUPT) (9.665)
[БОЛТ М4.2Х1.41Х25] | | 2008-2009 | 03 | | узнать цену | | 011 | 25839737 | ДВЕРЬ, F/TNK FIL (USE TOGETHER WITH 25861414) | N2 (ND1) (EXC WS2) | 2009-2009 | 01 | | узнать цену | | 011 | 25905702 | ДВЕРЬ, F/TNK FIL | N2 (WS2) | 2009-2009 | 01 | | узнать цену | | 012 | 11561790 | CLAMP, F/TNK FIL HOSE (PART OF 1) | N2 (L9H) | 2009-2009 | 01 | | узнать цену | | 013 | | RESTRICTOR, F/TNK FIL PIPE (PART OF 1) | | 2008-2009 | | | | | 014 | | CONNECTOR, EVAP EMIS RR HOSE (PART OF 1) | | 2008-2009 | | | | | 015 | 11561790 | CLAMP, F/TNK FIL HOSE (PART OF 1) | N2 (L9H) | 2009-2009 | 01 | | узнать цену | | 016 | | HOSE, F/TNK FIL (PART OF 1) | | 2008-2009 | | | | | 017 | | CLIP, F/TNK FIL PIPE (PART OF 1) | | 2008-2009 | | | | | 018 | 11516885 | SCREW, HFH W/FL WA, TAP, M8X1.25X20, 7THD, 17 O.D., TR PT, 6202M, PZOR (F/TNK FIL & VENT HOSE BRKT) | | 2008-2009 | 02 | | узнать цену | | 019 | 12337820 | STRAP, 15" TIE STRAP (PART OF 1) (ACDelco #12337820) | | 2008-2009 | 02 | | узнать цену |
|
|
