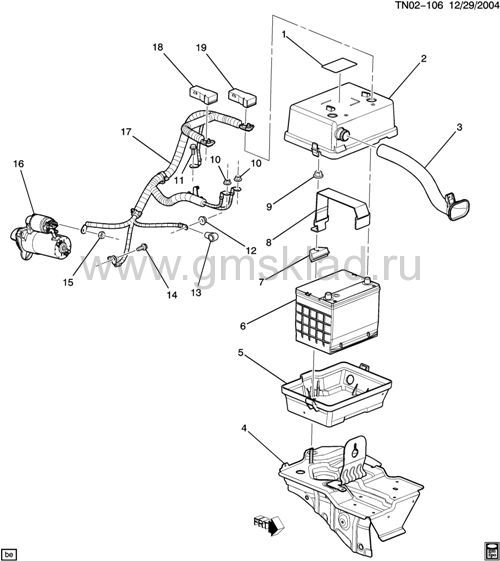

(TN02-106) - 2006 N1 ПРОВОДА АККУМУЛЯТОРА И ДЕТАЛИ КОМПЛЕКТА & RELATED PARTS
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 15087141 | LABEL, BAT WRNG (W/SYMBOLS AND MESSAGE) | N1 | 2006-2006 | 01 | узнать цену | |
| 001 | 15204281 | LABEL, BAT WRNG (INCLUDES SYMBOLS ONLY) | N153 (06) (VBX) (EXPORT) | 2006-2006 | 01 | узнать цену | |
| 002 | 15904036 | COVER, BAT (UPPER) | N1 | 2006-2006 | 01 | узнать цену | |
| 003 | 15172077 | DUCT, BAT CLG AIR INL [ТРУБКА ВОЗДУХОПРОВОДА] | N153 (06) | 2006-2006 | 01 | узнать цену | |
| 004 | 25886357 | TRAY, BAT (W/SUPT) (TRAY W/NUT) | N153 (06) | 2006-2006 | 01 | узнать цену | |
| 005 | 10399619 | COVER, BAT (LOWER) [ЗАЩИТНЫЙ КОЖУХ АККУМ.БАТАРЕИ] | N1 | 2006-2006 | 01 | узнать цену | |
| 006 | 89021645 | BATTERY, (CCA 640) (TOP POST) (230X173X203) (US DEALERS CONTACT ACDELCO WD FOR ORDERING & PRICING INFO) (ACDelco #86-7YR) (PROFESSIONAL - 7 YR) (BATTERY IS ENCASED WITHIN AN "ACTIVE COOLING BOX" WITH AN AIR SNORKEL TO THE OUTSIDE OF THE ДВИГАТЕЛЬ | N153 (06) (L52) | 2006-2006 | 01 | узнать цену | |
| 007 | 14005061 | RETAINER, BAT HOLDN (PLASTIC) [ПЛАСТИНА ФИКСАЦИИ ОСНОВАНИЯ АККУМУЛЯТОРА] | N1 | 2006-2006 | 01 | узнать цену | |
| 008 | 10399623 | STRAP, BAT HOLDN (LABELED 10399623) | N1 | 2006-2006 | 01 | узнать цену | |
| 008 | 25990118 | STRAP, BAT HOLDN (LABELED 25990118) | N1 | 2006-2006 | 01 | узнать цену | |
| 009 | 15685230 | NUT, BAT HOLDN RET (8 X 1.25) (W/LOCK WASHER) (8.016) [ГАЙКА М8] | N1 | 2006-2006 | 01 | узнать цену | |
| 010 | 11609411 | ГАЙКА, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (BAT POS CBL J/BLK LEAD) [ГАЙКА М6] | 2006-2006 | 02 | узнать цену | ||
| 011 | 11562004 | БОЛТ, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (BAT NEG CBL GND) | 2006-2006 | 01 | узнать цену | ||
| 012 | 11514596 | ГАЙКА, HFH, M8X1.25, 17.9 OD, 738 THK, 13MM HEX, 10, ZF (BAT NEG CBL GND) (8.915) (ACDelco #11514596) | 2006-2006 | 01 | узнать цену | ||
| 013 | 12146809 | COVER, GEN WIRE TERM (PART OF 17) (BLACK) (TERMINAL BOOT COVER) (2.343) | N1 | 2006-2006 | 01 | узнать цену | |
| 014 | 11588564 | БОЛТ, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN GND) | 2006-2006 | 01 | узнать цену | ||
| 015 | 11514597 | ГАЙКА, HFH, 10X1.5 THD, 9.8 THK, 21.8 OD, 510M (10) ZF 7111M (STRTR) (2.383) | 2006-2006 | 01 | узнать цену | ||
| 016 | 89017557 | STARTER, (REMAN) (PROD 12582277) (ACDelco #323-1621) (DELCO SERIES PG260L) [СТАРТЕР TBL] | N1 (L52) | 2006-2006 | 01 | узнать цену | |
| 017 | 15904037 | CABLE, BAT POS & NEG (INCLS 13, 18, 19) (2.342) (ACDelco #15904037) | N153 (06) (JJA) | 2006-2006 | 01 | узнать цену | |
| 017 | 15904037 | CABLE, BAT POS & NEG (INCLS 13, 18, 19) (ACDelco #15904037) | N153 (06) (JJA) | 2006-2006 | 01 | узнать цену | |
| 018 | 88988167 | COVER, BAT POS CBL TERM (PART OF 17) [КРЫШКА] | N153 (06) | 2006-2006 | 01 | узнать цену | |
| 019 | 88988168 | COVER, BAT NEG CBL TERM (PART OF 17) | N153 (06) | 2006-2006 | 01 | узнать цену |
