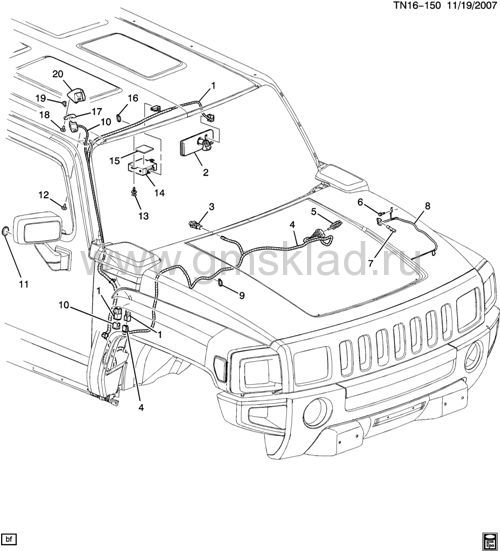

(TN16-150) - 2007-2008 N1 КАМЕРА ПЕРЕДНЕГО ОБЗОРА (UVF, JAPAN CV5)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 002 | MIRROR, I/S RR VIEW (SEE GROUP 16.000 "WINDSHIELD & RELATED PARTS" FOR DETAILLED ILLUSTRATED VIEW) (INCLS SLIDING LCD VIDEO W/GRID DISPLAY) | 2007-2010 | |||||
| 003 | 25861748 | SWITCH, FRT VIEW CAMERA | N1 (UVF) | 2007-2010 | 01 | узнать цену | |
| 004 | HARNESS, FRT VIEW CAMERA SW WRG | 2007-2010 | |||||
| 005 | 88988379 | SPLICE SLEEVE (SEALED), GREEN, FITS WIRE GAUGES 24 THROUGH 22 (INLINE-TO FRT VIEW CAMERA HARN) (ACDelco #88988379) | 2007-2010 | AR | узнать цену | ||
| 006 | 11609989 | БОЛТ, HEX W/FLAT WASHER, M6X1X25, 15 THD, 17 OD, 6202M STL, GMW3200, TAPTITE (BODY WRG HARN GND) [БОЛТ М6] | 2007-2010 | 02 | узнать цену | ||
| 007 | 12089189 | SPLICE SLEEVE (SEALED), (SALMON) (20-18 GA) (INLINE-TO FRT VIEW CAMERA HARN) | 2007-2010 | AR | узнать цену | ||
| 008 | HARNESS, FRT VIEW CAMERA WRG | 2007-2010 | |||||
| 009 | 12355066 | STRAP, PLASTIC ADJ TIE (215MM LG) (FRT VIEW CAMERA SW WRG HARN) (8.965) (ACDelco #16TS825) [ХОМУТ С ФИКСАТОРОМ] | 2007-2010 | AR | узнать цену | ||
| 010 | 25862931 | CAMERA, FRT VIEW | N1 (UVF) | 2007-2008 | 01 | узнать цену | |
| 011 | 24300080 | MIRROR, AUX O/S RR VIEW | N1 (UVF) (EXPORT) | 2007-2010 | 01 | узнать цену | |
| 012 | 11509231 | SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (FRT VIEW CAMERA HSG) [ВИНТ М6Х12] | 2007-2010 | 03 | узнать цену | ||
| 013 | 11589289 | RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (FRT VIEW CAMERA IMAGE DISPLAY MDL) | 2007-2010 | 02 | узнать цену | ||
| 014 | 15806901 | MODULE, FRT VIEW CAMERA IMAGE DISPLAY | N1 (UVF) | 2007-2010 | 01 | узнать цену | |
| 015 | INSULATOR, COMMUNICATION INTERFACE MDL | 2007-2008 | |||||
| 016 | 12355066 | STRAP, PLASTIC ADJ TIE (215MM LG) (FRT VIEW CAMERA WRG HARN) (8.965) (ACDelco #16TS825) [ХОМУТ С ФИКСАТОРОМ] | 2007-2010 | AR | узнать цену | ||
| 017 | 25861751 | BRACKET, FRT VIEW CAMERA | N1 (UVF) | 2007-2010 | 01 | узнать цену | |
| 018 | 11509231 | SCREW, RD HD C/R TAP, M4.2X1.41X13.0, GM6010M STL, GM813M NICKEL ORGANIC (FRT VIEW CAMERA BRKT) [ВИНТ М6Х12] | 2007-2010 | 02 | узнать цену | ||
| 019 | 11570768 | БОЛТ, FRT VIEW CAMERA | N1 (UVF) | 2007-2010 | 02 | узнать цену | |
| 020 | 25861749 | HOUSING, FRT VIEW CAMERA | N1 (RHD, UVF) (EXPORT) | 2007-2010 | 01 | L | узнать цену |
| 020 | 25861750 | HOUSING, FRT VIEW CAMERA | N1 (UVF) (EXC RHD) | 2007-2010 | 01 | R | узнать цену |
