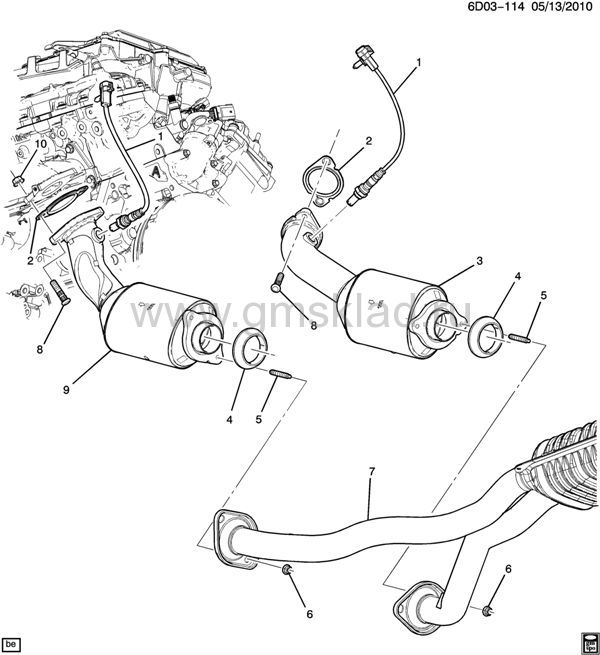

(6D03-114) 2011 DM47 ВЫПУСКНАЯ СИСТЕМА/ПЕРЕДНЯЯ ЧАСТЬ (LLT/3.6D)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 12594935 | SENSOR, HTD OXY (POSN 1) (ACDelco #213-3850) | DM(LLT, JJB) | 2011-2011 | 02 | | узнать цену | | 002 | 25857958 | SEAL, CTLTC CONV (PART OF 3, 9) (INLET SEAL (W/O SHIELD)) | DM(LLT, JJB) | 2011-2011 | 01 | | узнать цену | | 003 | 25939989 | CONVERTER, 3WAY CTLTC (INCLS 2, 4, 5, 8) | DM(LLT, JJB) | 2011-2011 | 01 | R | узнать цену | | 004 | 15879730 | SEAL, CTLTC CONV (PART OF 3, 9) (SPHERICAL OUTLET SEAL) | DM(LLT, JJB) | 2011-2011 | 02 | | узнать цену | | 005 | 11569946 | STUD, STRAIGHT, M8X1.25X38, M8X1.25X12, W/EXT SOC, 56 OAL, 10.9, GM6164M (PART OF 3, 9) | | 2011-2011 | 04 | | узнать цену | | 006 | 11516076 | NUT, PREVAILING TORQUE TENSION FLG HD (M8X1.25X17.4 OD (EXH MUFF) | | 2011-2011 | 04 | | узнать цену | | 007 | | MUFFLER, EXH (W/EXH & TAIL PIPE & 3 WAY CTLTC CONV) (SEE GROUP 03.000 "EXHAUST SYSTEM/REAR" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2011 | | | | | 008 | 11570494 | STUD, CTLTC CONV (PART OF 3, 9) (M10X1.5X48, 28 THD, 17 OD) | DM(LLT, JJB) | 2011-2011 | 02 | | узнать цену | | 009 | 25971634 | CONVERTER, 3WAY CTLTC (INCLS 2, 4, 5, 8) | DM(LLT, JJB) | 2011-2011 | 01 | L | узнать цену | | 010 | 15032594 | NUT, CTLTC CONV (HEX M10X1.5) (ATTACH EXH MANIFOLD PIPE) (3.613) (MUST USE T/W STUD 11610853) | DM | 2011-2011 | 04 | | узнать цену |
|
|
