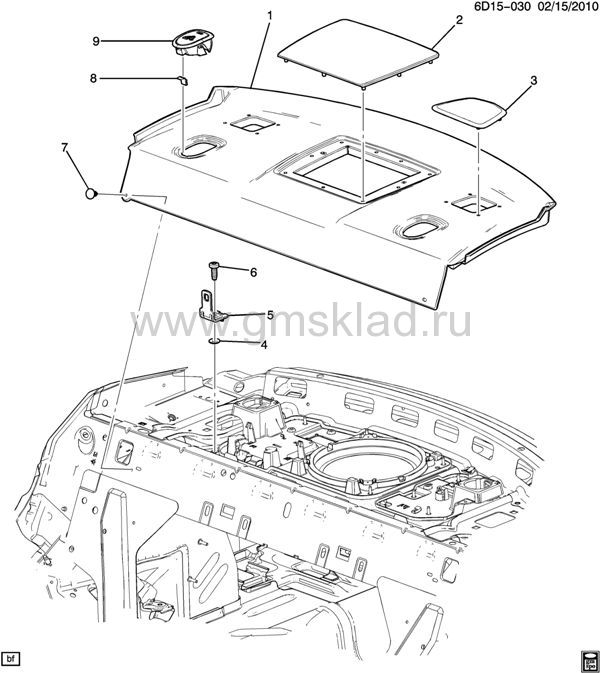

(6D15-030) 2011-2013 D47 TRIM/BACK WINDOW SHELF (10 SPEAKER AUDIO UQS)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 22777999 | TRIM, R/WDO PNL (INCLS 2, 3, 9) (EBONY) (DOMESTIC) | DM47 (UQS, 4AL, 4AM, 4AR) | 2011-2012 | 01 | | узнать цену | | 001 | 22777999 | TRIM, R/WDO PNL (INCLS 2, 3, 9) (EBONY) (DOMESTIC) | DN47 (UQS, 4AL, 4AM, 4BZ) | 2011-2012 | 01 | | узнать цену | | 001 | 25979044 | TRIM, R/WDO PNL (INCLS 2, 3, 9) (EBONY) (EUROPEAN) | DM (AX4, UQS, 4AL, 4AM) (EXPORT) | 2011-2013 | 01 | | узнать цену | | 001 | 25979044 | TRIM, R/WDO PNL (INCLS 2, 3, 9) (EBONY) (EUROPEAN) | DN (AX4, UQS, 4AL, 4AM, 4AR) (EXPORT) | 2011-2013 | 01 | | узнать цену | | 002 | | GRILLE, RDO RR SPKR (PART OF 1) | | 2011-2013 | | | | | 003 | | GRILLE, RDO RR SPKR (PART OF 1) | | 2011-2013 | | | | | 004 | | NUT, CHILD ST TOP STRP BRKT (PART OF 5) | | 2011-2013 | | | | | 005 | 25958749 | BRACKET, CHILD ST TOP STRP (INCLS 4, 6) | DM, DN47 | 2011-2013 | 02 | | узнать цену | | 006 | 11609992 | BOLT, CHILD ST TOP STRP BRKT (PART OD 5) (M10X1.5X30, 30 THD) (8.977) | DM, DN47 | 2011-2013 | 02 | | узнать цену | | 007 | 01605396 | RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (R/WDO PNL TR) | | 2011-2013 | 02 | | узнать цену | | 008 | 25706781 | RETAINER, CHILD ST TO STRP BRKT ACC HOLE CVR | DM, DN47 | 2011-2013 | 01 | | узнать цену | | 009 | | COVER, CHILD ST TOP STRP BRKT ACC HOLE (PART OF 1) | | 2011-2013 | | | |
|
|
