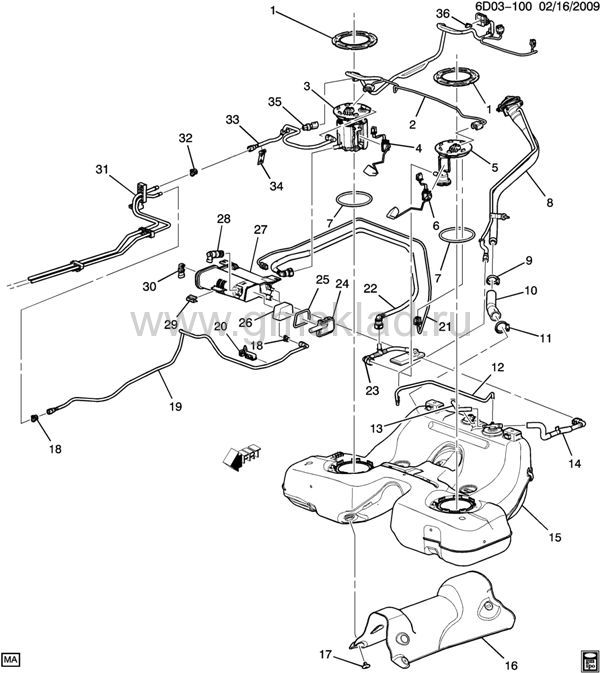

| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | 10325852 | CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26) | DN (LSA) | 2009-2011 | 02 | | узнать цену |
| 002 | 25999851 | HARNESS, FUEL SDR WRG (INCLS 36) | DN69 (LSA) | 2009-2011 | 01 | | узнать цену |
| 002 | 25999851 | HARNESS, FUEL SDR WRG (INCLS 36) (3.115) | DN69 (LSA) | 2009-2011 | 01 | | узнать цену |
| 003 | 19207950 | MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 7) (ACDelco #M10235) | DN (LSA) | 2009-2011 | 01 | | узнать цену |
| 003 | 19207950 | MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 7) (3.107) (ACDelco #M10235) | DN (LSA) | 2009-2011 | 01 | | узнать цену |
| 004 | 19207951 | SENSOR KIT, FUEL LVL (INCLS 7) (ACDelco #SK1329) | DN (LSA) | 2009-2011 | 01 | | узнать цену |
| 005 | 19180437 | SENDER KIT, FUEL (INCLS 6, 7) (SECONDARY) (ACDelco #19180437) | DN (LSA) | 2009-2011 | 01 | | узнать цену |
| 006 | | SENSOR, FUEL LVL (PART OF 5) | | 2011-2011 | | | |
| 007 | 22682111 | SEAL, F/PMP (O RING) (PART OF 3, 4, 5) (APPROX SIZE:147.5MM X 6MM) (ACDelco #G41) | DN (LSA) | 2009-2011 | 02 | | узнать цену |
| 008 | 20789050 | PIPE, F/TNK FIL (SEE GROUP 03.000 "FUEL TANK FILLER PIPES & HOSES" FOR DETAILED ILLUSTRATED VIEW) | D35-69 | 2011-2011 | 01 | | узнать цену |
| 009 | 11610236 | CLAMP, TYPE F WORM GEAR 20-1/4 HEX HD SAE 302 STL GM3044 9 (PART OF 10) | | 2009-2011 | 01 | | узнать цену |
| 010 | 15925742 | HOSE, F/TNK FIL (INCLS 9) | DN (LSA) | 2009-2011 | 01 | | узнать цену |
| 011 | 09177063 | CLAMP, F/TNK FIL HOSE (25-40MM CLAMP RANGE) | DN (LSA) | 2011-2011 | 01 | | узнать цену |
| 012 | | PIPE, AUX F/TNK FIL EXTN (PART OF 15) | | 2011-2011 | | | |
| 013 | | PIPE, F/TNK VENT (PART OF 15) | | 2011-2011 | | | |
| 014 | | PIPE, F/TNK VENT VLV (PART OF 15) | | 2011-2011 | | | |
| 015 | 20903277 | TANK, FUEL (INCLS 12-14, 17) | DN (LSA) | 2011-2011 | 01 | | узнать цену |
| 016 | 20903276 | SHIELD, F/TNK | DN (LSA) | 2011-2011 | 01 | | узнать цену |
| 017 | | RETAINER, F/TNK SHLD (PART OF 15) | | 2011-2011 | | | |
| 018 | | RETAINER KIT, FUEL FEED PIPE FTG (PART OF 19) | | 2011-2011 | | | |
| 019 | 20986415 | PIPE, EVAP EMIS CNSTR PURGE (INCLS 18) (PURGE LINE) | DN (LSA) | 2011-2011 | 01 | | узнать цену |
| 020 | 25679252 | RETAINER, FUEL FEED & EVAP EMIS & RTN FRT PIPE (HOLDS 15.8/7.95/7.0 TUBES, HAS CHRISTMAS TREE RETAINER) | D | 2009-2011 | 01 | | узнать цену |
| 021 | | HARNESS, FUEL LVL SEN WRG (PART OF 22) | | 2011-2011 | | | |
| 022 | 20903289 | PIPE, FUEL SDR FUEL FEED (INCLS 21) | DN (LSA) | 2009-2011 | 01 | | узнать цену |
| 023 | 20903290 | HOSE, AUX FUEL FEED RR | DN (LSA) | 2009-2011 | 01 | | узнать цену |
| 024 | | COVER, EVAP EMIS CNSTR AIR INL OPG (*KIT1) | | 2009-2011 | | | |
| 025 | | SEAL, EVAP EMIS CNSTR AIR INL OPG CVR (*KIT1) | | 2009-2011 | | | |
| 026 | | FILTER, EVAP EMIS CNSTR AIR INL (*KIT1) | | 2009-2011 | | | |
| 027 | 19259325 | CANISTER, EVAP EMIS (LESS FILTER & COVER) (ACDelco #19259325) (MUST ORDER T/W HARNESS 19257603) | D35-47-69 | 2011-2011 | 01 | | узнать цену |
| 028 | 22865590 | VALVE, EVAP EMIS CNSTR VENT SOL (W/COVER MAY NEED TO USE MATING CONN W/LEADS 13579002) (ACDelco #22865590) (MUST USE T/W HARNESS 19257603) | D35-47-69 | 2011-2011 | 01 | | узнать цену |
| 029 | | RETAINER, EVAP EMIS CNSTR | | 2009-2011 | | | |
| 030 | 13502903 | SENSOR, F/TNK PRESS (ACDelco #13502903) | D | 2009-2011 | 01 | | узнать цену |
| 031 | | PIPE, BRK & FUEL FEED & EVAP EMIS (SEE GROUP 03.000 "FUEL SUPPLY SYSTEM" FOR DETAILED ILLUSTRATED VIEW) | | 2009-2011 | | | |
| 033 | 20986414 | PIPE, FUEL FEED RR (INCLS 32, 34, 35) | DN | 2011-2011 | 01 | | узнать цену |
| 034 | | LABEL, FUEL FEED PIPE WRNG (PART OF 33) | | 2011-2011 | | | |
| 035 | 13500745 | SENSOR, FUEL PRESS (PART OF 33) (PART OF FUEL LINE) (3.682) (ACDelco #13500745) | DN (LSA) | 2009-2011 | 01 | | узнать цену |
| 035 | 13500745 | SENSOR, FUEL PRESS (PART OF 33) (PART OF FUEL LINE) (ACDelco #13500745) | DN (LSA) | 2009-2011 | 01 | | узнать цену |
| 036 | 15317832 | RETAINER, WRG HARN CONN (PART OF 2) (SECONDARY LOCK) (3.166) | D | 2011-2011 | 01 | | узнать цену |
| K01 | 19177364 | FILTER KIT, EVAP EMIS CNSTR (W/ SEAL) (INCLS 24-26) (ACDelco #215-656) | D35-47-69 | 2011-2011 | 01 | | узнать цену |
