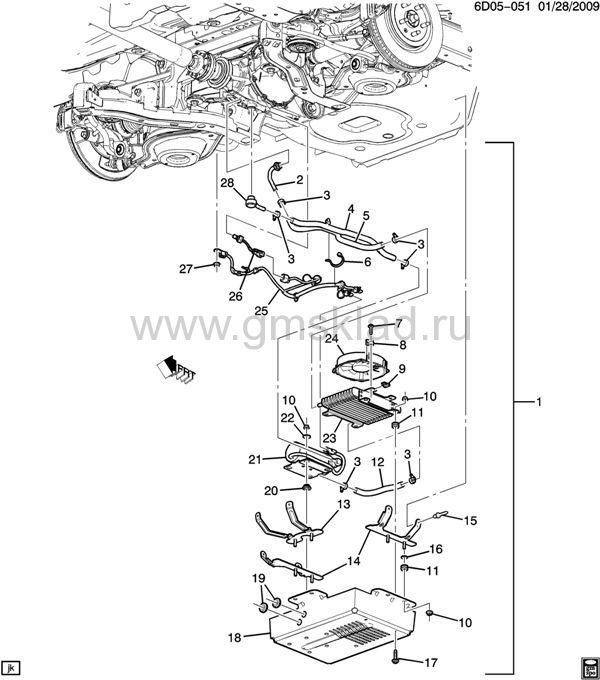

(6D05-051) 2011 DN69 СИСТЕМА ОХЛАЖДЕНИЯ ДИФФЕРЕНЦИАЛА (KNR)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 22849901 | COOLER PKG, DIFF OIL (INCLS 2-28) | DN (KNR) | 2011-2011 | 01 | | узнать цену | | 002 | | FITTING, DIFF OIL CLR) (PART OF 21 (*KIT4) | | 2011-2011 | | | | | 003 | 15620999 | CLAMP, HEX SLOTTED, WORM GEAR, .30MIN.-.87MAX (DIFF OIL CLR HOSE) (*KIT3) | | 2010-2011 | 06 | | узнать цену | | 004 | | HOSE, DIFF OIL CLR OTLT (*KIT3) | | 2010-2011 | | | | | 005 | | HOSE, DIFF OIL CLR INL (*KIT3) | | 2010-2011 | | | | | 006 | | STRAP, DIFF OIL CLR HOSE (*KIT3) | | 2010-2011 | | | | | 007 | 11589039 | BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (PART OF 23) | | 2010-2011 | 04 | | узнать цену | | 008 | | BRACKET, DIFF OIL CLR (PART OF 23) | | 2011-2011 | | | | | 009 | 11570097 | NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 23) | | 2010-2011 | 04 | | узнать цену | | 010 | 11589039 | BOLT, HEX, W/CON WA, M6X1X30, 20 THD, 24 O.D., 9.8, GMW4205 (DIFF OIL CLR) (*KIT1) | | 2010-2011 | 04 | | узнать цену | | 011 | | GROMMET, DIFF OIL CLR HOSE (*KIT1) | | 2011-2011 | | | | | 012 | 22791254 | HOSE, DIFF OIL CLR OTLT (*KIT3) (5.535) (SERV CMP OF COOLER PKG 22849901) | DN (KNR) | 2011-2011 | 01 | | узнать цену | | 012 | 22791254 | HOSE, DIFF OIL CLR OTLT (*KIT3) | DN (KNR) | 2011-2011 | 01 | | узнать цену | | 013 | | BRACKET, DIFF OIL CLR (PART OF 21) | | 2011-2011 | | | | | 014 | | BRACKET, DIFF OIL CLR (PART OF 21) | | 2011-2011 | | | | | 015 | 11561334 | RIVET, DIFF OIL CLR BRKT (6.5DIA X 13.7, 13 OD, 10B35 STL) (*KIT1) (12.804) | DN69 (KNR) | 2010-2011 | 06 | | узнать цену | | 016 | 11610000 | WASHER, SEALING 6.5 ID, 25 OD, 2 THK GM1151M (DIFF OIL CLR BRKT) (*KIT1) | | 2010-2011 | 06 | | узнать цену | | 017 | | BOLT, DIFF OIL CLR (*KIT1) | | 2011-2011 | | | | | 018 | | SHIELD, DIFF OIL CLR (PART OF 21) (*KIT2) | | 2011-2011 | | | | | 019 | | GROMMET, DIFF OIL CLR HOSE (*KIT1) | | 2011-2011 | | | | | 020 | | GROMMET, INTER AXLE DIFF LUB PUMP (*KIT1) | | 2011-2011 | | | | | 021 | 22761422 | PUMP, INTER AXLE DIFF LUB (INCLS 2, 13, 14, 18, 28) (FOR VEHICLES W/CLR MTD UNDER DRIVERS SIDE FLR PAN) | DN (KNR) | 2011-2011 | 01 | | узнать цену | | 021 | 15786766 | PUMP, INTER AXLE DIFF LUB (INCLS 2, 13, 14, 18, 28) (FOR VEHICLES W/CLR MTD UNDER SPARE TIRE TUB) | DN69 (KNR) (EXPORT) | 2010-2011 | 01 | | узнать цену | | 022 | 11500365 | WASHER, FLAT M6.3X25.2X2.5 PH (INTER AXLE DIFF LUB PUMP) (*KIT1) (2.483) (**VPI 1-877-846-8243) | | 2010-2011 | 04 | | узнать цену | | 023 | 20792965 | COOLER, DIFF OIL (W/ FAN) (INCLS 7-9, 24) | DN69 (KNR) (EXPORT) | 2010-2011 | 01 | | узнать цену | | 024 | | FAN, DIFF OIL CLR (PART OF 23) | | 2011-2011 | | | | | 025 | 20826068 | HARNESS, BODY RR WRG HARN EXTN | DN (KNR) (EXPORT) | 2011-2011 | 01 | | узнать цену | | 026 | 20907436 | SENSOR, DIFF OIL CLR TEMP | DN (KNR) (EXPORT) | 2010-2011 | 01 | | узнать цену | | 027 | 11561645 | NUT, HFH, M6X1X6.45, 13.5 OD, 10 STL, GMW3200 (BODY RR WRG HARN EXTN HARN) (*KIT1) | | 2010-2011 | 01 | | узнать цену | | 028 | | FITTING, DIFF OIL CLR) (PART OF 21 (*KIT4) | | 2011-2011 | | | | | K01 | 20826070 | FASTENER KIT, DIFF OIL CLR (INCLS 10, 11, 15-17, 19, 20, 22, 27) (FOR USE ON VEH W/ DIFF CLR MTD UND DRVR SD FLR PAN) (5.535) (SERV CMP OF COOLER PKG 22849901) | DN (KNR) | 2011-2011 | 01 | | узнать цену | | K01 | 20826070 | FASTENER KIT, DIFF OIL CLR (INCLS 10, 11, 15-17, 19, 20, 22, 27) (FOR USE ON VEH W/ DIFF CLR MTD UND DRVR SD FLR PAN) | DN (KNR) | 2011-2011 | 01 | | узнать цену | | K01 | 20792973 | FASTENER KIT, DIFF OIL CLR (INCLS 10, 11, 15-17, 19, 20, 22, 27) (FOR USE ON VEH W/ DIFF CLR MTD UND SPA TIRE TUB) | DN69 (KNR) (EXPORT) | 2010-2011 | 01 | | узнать цену | | K03 | 20792972 | HOSE KIT, DIFF OIL CLR (INCLS 3-6, 12) | DN69 (KNR) (EXPORT) | 2010-2011 | 01 | | узнать цену | | K04 | 20826072 | ADAPTER, DIFF OIL CLR (PUMP INLET HOSE) (INCLS 2, 28) (5.535) (SERV CMP OF COOLER PKG 22849901) | DN (KNR) | 2011-2011 | 01 | | узнать цену | | K04 | 20826073 | ADAPTER, DIFF OIL CLR (PUMP INLET PIPES) (INCLS 2, 28) (5.535) (SERV CMP OF COOLER PKG 22849901) | DN (KNR) | 2011-2011 | 02 | | узнать цену | | K04 | 20826074 | ADAPTER, DIFF OIL CLR (PUMP OUTLET PIPE) (INCLS 2, 28) (5.535) (SERV CMP OF COOLER PKG 22849901) | DN (KNR) | 2011-2011 | 01 | | узнать цену | | K04 | 20826072 | ADAPTER, DIFF OIL CLR (PUMP INLET HOSE) (INCLS 2, 28) | DN (KNR) | 2011-2011 | 01 | | узнать цену | | K04 | 20826074 | ADAPTER, DIFF OIL CLR (PUMP OUTLET PIPE) (INCLS 2, 28) | DN (KNR) | 2011-2011 | 01 | | узнать цену |
|
|
