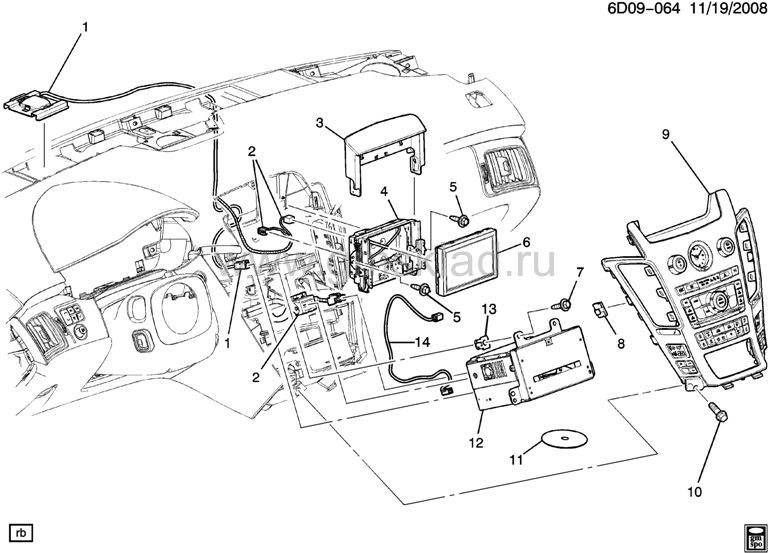

(6D09-064) 2011-2013 DM,DN,DR35 КРЕПЛЕНИЕ РАДИОСИСТЕМЫ И ДИСПЛЕЙ (UAV,U2X,U2Y)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15226445 | ANTENNA, ELEK NAVIGATION (ACDelco #15226445) | D35-47-69 (UAV, U2X, U2Y) | 2011-2013 | 01 | | узнать цену | | 002 | | HARNESS, I/P WRG (SEE GROUP 02.000 "WIRING HARNESS/INSTRUMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2013 | | | | | 003 | 25942001 | COVER, NAVN INFO DISPLAY OPG (COCOA) | D (UAV, U2X, U2Y, 4AC) | 2010-2013 | 01 | | узнать цену | | 003 | 25942000 | COVER, NAVN INFO DISPLAY OPG (EBONY) | D (UAV, U2X, U2Y, 4AL, 4AM, 4AR, 4BZ) | 2011-2013 | 01 | | узнать цену | | 004 | | ACTUATOR, RDO & VIDEO & AUDIO PLYR&NAVN INFO DISPLAY (PART OF 6) | | 2011-2013 | | | | | 005 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (VIDEO DISPLAY) | | 2010-2013 | 03 | | узнать цену | | 006 | 22809317 | DISPLAY, RDO & VIDEO & AUDIO PLYR & NAVN INFO (INCLS 4) (ACDelco #22809317) | D (UAV, U2X, U2Y) | 2010-2013 | 01 | | узнать цену | | 007 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO) | | 2010-2013 | 04 | | узнать цену | | 008 | | CLIP, I/P CTR TR PNL (PART OF 9) | | 2011-2013 | | | | | 009 | | CONTROL, AM/FM STEREO & CLK & CD PLYR RDO (INCLS 8) (SEE GROUP 10.000 "INSTRUMENT PANEL/CENTER CONTROL" FOR DETAILED ILLUSTRATED VIEW) (EBONY) | | 2010-2013 | | | | | 010 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO CONT) | | 2010-2013 | 02 | | узнать цену | | 011 | | DISC PKG, NAVN MAP (TO ORDER DISCS, CONTACT GM NAVIGATION DISC CENTER) | | 2011-2013 | | | | | 012 | 22790297 | RADIO, RECEIVER & NAV (ACDelco #22790297) (LABELED 22790297) | D35-47-69 (U2X) | 2012-2012 | 01 | | узнать цену | | 012 | 22811005 | RADIO, AM/FM STEREO & VIDEO DISC PLYR & NAVN&MP3&HARD DR (ACDelco #22811005) (LABELED 22811005) | D35-47-69 (U2Y) (EXC FCN, UL8) | 2012-2012 | 01 | | узнать цену | | 012 | 22811001 | RADIO, RECEIVER & NAV (ACDelco #22811001) (LABELED 22811001) | D35-47-69 (U2X) | 2012-2012 | 01 | | узнать цену | | 012 | 22868359 | RADIO, AM/FM STEREO & VIDEO DISC PLYR & NAVN&MP3&HARD DR (ACDelco #22868359) (LABELED 22868359) | D35-47-69 (U2Y) (EXC FCN, UL8) | 2012-2012 | 01 | | узнать цену | | 012 | 22853813 | RADIO, RECEIVER & NAV (ACDelco #22853813) | DM, DN35-47-69 (UAV) | 2011-2013 | 01 | | узнать цену | | 012 | 22854772 | RADIO, RECEIVER & NAV (ACDelco #22854772) (LABELED 22854772) | D35-47-69 (U2X) | 2012-2012 | 01 | | узнать цену | | 012 | 22854717 | RADIO, RECEIVER & NAV (ACDelco #22854717) | DM, DN (UL8, U2Y) | 2011-2012 | 01 | | узнать цену | | 012 | 22810971 | RADIO, RECEIVER & NAV (ACDelco #22810971) (LABELED 22810971) | D35-47-69 (FCN, U2Y) (EXPORT) | 2012-2012 | 01 | | узнать цену | | 012 | 22825664 | RADIO, RECEIVER & NAV (ACDelco #22825664) (LABELED 22825664) | D35-47-69 (FCN, U2Y) (EXPORT) | 2012-2012 | 01 | | узнать цену | | 012 | 22868179 | RADIO, RECEIVER & NAV (ACDelco #22868179) (LABELED 22868179) | D35-47-69 (FCN, U2Y) (EXPORT) | 2012-2012 | 01 | | узнать цену | | 012 | 22854717 | RADIO, RECEIVER & NAV (ACDelco #22854717) | DR35-69 (UL8, U2Y) (EXPORT) | 2011-2012 | 01 | | узнать цену | | 012 | 22853813 | RADIO, RECEIVER & NAV (ACDelco #22853813) | DR35-69 (UAV) (EXPORT) | 2011-2013 | 01 | | узнать цену | | 013 | 11518121 | NUT, U, M6X1, MULTI THD, .5'-4.0' THK PNL (I/P) | | 2010-2013 | 19 | | узнать цену | | 014 | 20799666 | HARNESS, NAVIGATION WRG | D35-47-69 | 2011-2012 | 01 | | узнать цену |
|
|
