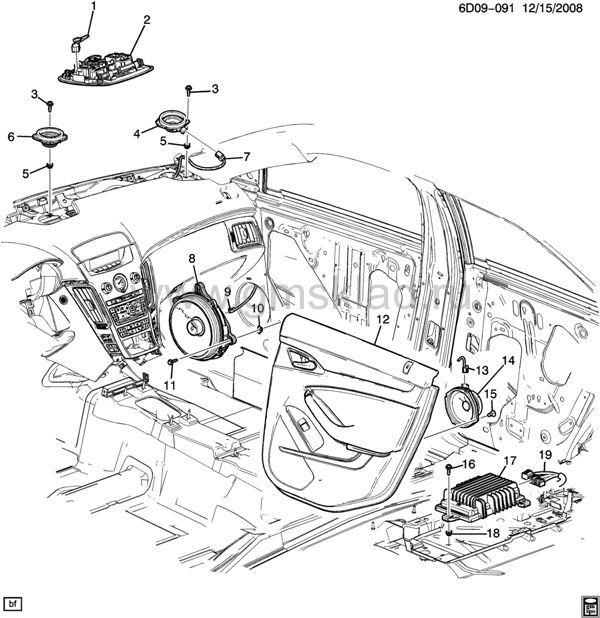

(6D09-091) 2010-2013 DM,DR35 АУДИОСИСТЕМА/ДИНАМИКИ И УСИЛИТЕЛЬ (7 SPEAKER AUDIO UQA)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15246939 | MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 2) (RDO VOL COMP) | DR (EXC UTV) (EXPORT) | 2011-2013 | 01 | | узнать цену | | 001 | 15246939 | MICROPHONE, RDO VOL COMP INTR NOISE (PART OF 2) (RDO VOL COMP) | DM, DN (EXC UTV) | 2011-2013 | 01 | | узнать цену | | 002 | | CONSOLE, RF (INCLS 1) (SEE GROUP 10.000 "CONSOLE/ROOF" FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) | | 2010-2013 | | | | | 003 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO FRT SPKR) | | 2010-2013 | 06 | | узнать цену | | 004 | 15122573 | SPEAKER, RDO FRT (ACDelco #15122573) | D35 (UQA) | 2011-2013 | 02 | | узнать цену | | 005 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RDO FRT SPKR) (10.701) | | 2010-2013 | 06 | | узнать цену | | 006 | 15122573 | SPEAKER, RDO FRT (ACDelco #15122573) | D35 (UQA) | 2011-2013 | 02 | | узнать цену | | 007 | | HARNESS, I/P WRG (SEE GROUP 02.000 "WIRING HARNESS/INSTRUMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 008 | 15278539 | SPEAKER, RDO FRT S/D (ACDelco #15278539) | DM, DN35 (UQA) | 2011-2013 | 01 | R | узнать цену | | 008 | 15278539 | SPEAKER, RDO FRT S/D (ACDelco #15278539) | D35 (UQA) | 2010-2013 | 01 | L | узнать цену | | 008 | 15278539 | SPEAKER, RDO FRT S/D (ACDelco #15278539) | DR35 (UQA) (EXPORT) | 2010-2013 | 01 | L | узнать цену | | 009 | | HARNESS, FRT S/D DR WRG (SEE GROUP 10.000 "DOOR HARDWARE/FRONT" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 010 | 11570654 | NUT, RDO FRT S/D SPKR (4.2 X 1.41) (PUSH-IN NUT) (FITS 8.75 SQ HOLE) | D35 | 2010-2013 | 06 | | узнать цену | | 011 | 11589012 | BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (RDO FRT S/D SPKR) (9.665) | | 2010-2013 | 06 | | узнать цену | | 012 | | TRIM, RR S/D (INCLS 13-15) (SEE GROUP 14.000 "TRIM/REAR DOOR" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 013 | | HARNESS, RR S/D WRG (PART OF 12) (SEE GROUP 14.000 "TRIM/REAR DOOR" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 014 | 25725733 | SPEAKER, RDO RR S/D (PART OF 12) (ACDelco #25725733) | D35 | 2010-2013 | 02 | | узнать цену | | 015 | 15809005 | BOLT, RDO RR SPKR (PART OF 12) (D40X1.46X12, 9.5THD) (3.682) | D35 | 2010-2013 | 04 | | узнать цену | | 016 | 11610068 | BOLT, HEX WA, M4.2X1.41X30, 20.9 THD, 17 OD, GM6010M STL, GMW4205 (RDO SPKR AMPF) | | 2010-2013 | 03 | | узнать цену | | 017 | 20832788 | AMPLIFIER, RDO SPKR (LABELED 20832788) (ACDelco #20832788) | D35 (UQA) | 2010-2013 | 01 | | узнать цену | | 018 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (RDO SPKR AMPF) (10.701) | | 2010-2013 | 03 | | узнать цену | | 019 | | HARNESS, BODY WRG (SEE GROUP 13.000 "WIRING HARNESS/BODY" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | |
|
|
