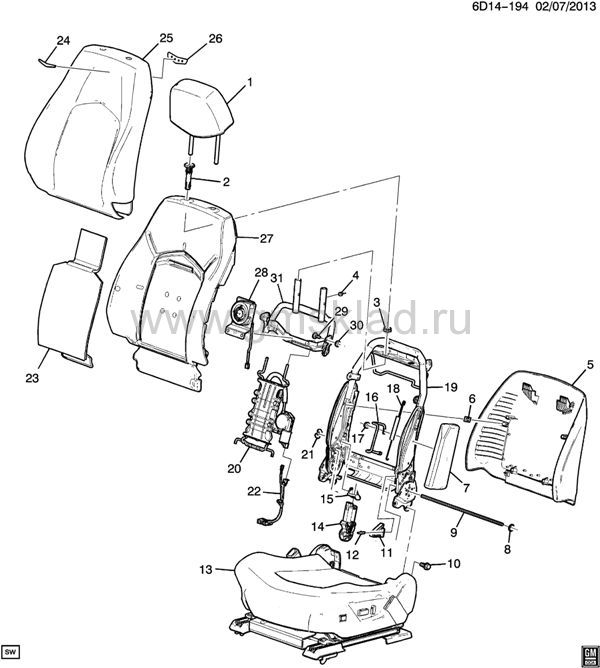

(6D14-194) 2012 DM35 СИДЕНЬЕ В СБОРЕ/ВОДИТЕЛЯ-СПИНКА (VENTED/HEATED KB6, EXC RECARO W2E)(1ST DES)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20867414 | RESTRAINT, D/SEAT HD (CASHMERE) | DM (01D) | 2011-2012 | 01 | | узнать цену | | 001 | 20867413 | RESTRAINT, D/SEAT HD (TITANIUM) | DM35-47-69 (AQ9, EBS, ECH, 01C) | 2011-2012 | 01 | | узнать цену | | 001 | 20812526 | RESTRAINT, D/SEAT HD (EBONY) (LEATHER) | DM, DN (AL2, AQ9, EBS, ECH, 01G) | 2012-2012 | 01 | | узнать цену | | 002 | 25785786 | GUIDE, D/SEAT H/RST (CASHMERE) (W/BUTTON) | DM (01D) | 2011-2012 | 01 | | узнать цену | | 002 | 25908135 | GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) | DM (01C) | 2011-2012 | 01 | | узнать цену | | 002 | 25785788 | GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) | DM (01G) | 2011-2012 | 01 | | узнать цену | | 002 | 25785789 | GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) | DM (01D) | 2011-2012 | 01 | | узнать цену | | 002 | 25785791 | GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) | DM (01G) | 2011-2012 | 01 | | узнать цену | | 002 | 88994612 | GUIDE, D/SEAT H/RST (CASHMERE) (W/O BUTTON) (11.625) | DM35 (01D) | 2012-2012 | 01 | | узнать цену | | 002 | 19123683 | GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) | DM35 (EBS, 01C) | 2011-2012 | 01 | | узнать цену | | 002 | 25908165 | GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) | DM (01C) | 2011-2012 | 01 | | узнать цену | | 002 | 19123683 | GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) | DM35 (ECH, WBL, 01C) (EXC A82) (EXPORT) | 2012-2012 | 01 | | узнать цену | | 003 | 25994444 | RETAINER, D/SEAT H/RST GDE | D35-47-69 | 2011-2012 | 01 | | узнать цену | | 004 | 25995123 | BUMPER, F/SEAT BK | DM | 2011-2012 | 02 | | узнать цену | | 005 | 25939329 | PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS PLASTIC AND NOT WRAPPED IN LEATHER) | DM (AQ9, 01G) (EXC AL2) | 2011-2012 | 01 | | узнать цену | | 005 | 25939325 | PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS WRAPPED IN LEATHER) | DM35-69 (AL2, AQ9, A45, ECH, 01G) | 2011-2012 | 01 | | узнать цену | | 005 | 25939323 | PANEL, D/SEAT BK FIN (INCLS 6) (CASHMERE) (PANEL IS WRAPPED IN LEATHER) | DM (AQ9, 01D) | 2011-2012 | 01 | | узнать цену | | 005 | 25939325 | PANEL, D/SEAT BK FIN (INCLS 6) (EBONY) (PANEL IS WRAPPED IN LEATHER) | DM (AL2, AQ9, A45, EBS, 01G) | 2011-2012 | 01 | | узнать цену | | 005 | 25939326 | PANEL, D/SEAT BK FIN (INCLS 6) (TITANIUM) (PANEL IS WRAPPED IN LEATHER) | DM35-69 (AQ9, 01C) | 2012-2012 | 01 | | узнать цену | | 006 | 11589329 | CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 5) | | 2011-2012 | 04 | | узнать цену | | 007 | 20970105 | AIRBAG, D/SEAT SI | D35-69 | 2011-2012 | 01 | | узнать цену | | 008 | 11571066 | NUT, PUSH-ON, FOR 9/32" (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (PART OF 19) | | 2011-2012 | 02 | | узнать цену | | 009 | 15894212 | BAR, F/SEAT BK FRM CR (PART OF 19) | DM, DN | 2011-2012 | 02 | | узнать цену | | 010 | 25828643 | BOLT, F/SEAT (PART OF 19) | DM | 2011-2012 | 08 | | узнать цену | | 011 | 25994443 | BRACKET, D/SEAT (11.419) | DM | 2011-2012 | 02 | | узнать цену | | 012 | | RIVET, D/SEAT ADJR BRKT | | 2012-2012 | | | | | 013 | | PAD, D/SEAT CUSH (SEE GROUP 14.000 "SEAT ASM/DRIVER-CUSHION" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2012 | | | | | 014 | 15894214 | ACTUATOR, D/SEAT RECL (PART OF 19) | DM | 2011-2012 | 01 | | узнать цену | | 015 | | BRACKET, D/SEAT RECL ACTR (PART OF 19) | | 2012-2012 | | | | | 016 | 25994418 | BRACKET, D/SEAT SI AIRBAG | DM, DN (AQ9) | 2011-2012 | 01 | L | узнать цену | | 017 | 11517068 | NUT, METRIC HEX FLANGE, M6X1, 10MM SOCKET (PART OF 19) | | 2011-2012 | 02 | | узнать цену | | 018 | 25994445 | SPRING, F/SEAT H/RST ADJ RET | DM, DN | 2011-2012 | 02 | | узнать цену | | 019 | 25807063 | FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (14.896) | DM35-69 (AL2, AQ9, A45) | 2012-2012 | 01 | | узнать цену | | 019 | 25807066 | FRAME, D/SEAT BK (INCLS 8-10, 14, 15, 17, 21) (14.896) | DM35-69 (AH8, EBS, ECH) | 2011-2012 | 01 | | узнать цену | | 020 | 25939289 | LUMBAR SUB, D/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) | DM35-69 (AL2, AQ9, A45, EBS) | 2011-2012 | 01 | | узнать цену | | 021 | | CLIP, ACTUATOR D/SEAT RECL) (PART OF 19) | | 2012-2012 | | | | | 022 | 25994400 | HARNESS, D/SEAT WRG (RECL POTENTIOMETER) (MEMRY JMPR) | DM, DN35-69 (AL2, AQ9, A45, EBS, KB6) (EXC KA1) | 2011-2012 | 01 | | узнать цену | | 023 | 25994412 | MAT, F/SEAT BK VENT FAN (CARS BUILT W/ VENT BAG HANGING ON FRAME) (FOR 2ND DESIGN SEE 22758813) | DM (AL2, AQ9, A45, EBS, KB6) (EXC KA1) (1ST DES) | 2012-2012 | 01 | | узнать цену | | 023 | 22758813 | MAT, F/SEAT BK VENT FAN (HEAT/VENT L&R) | DM (AL2, AQ9, A45, EBS, KB6) (EXC KA1) | 2012-2012 | 01 | | узнать цену | | 024 | 22958608 | PANEL, F/SEAT BK UPR FIN (EMBLEM) | DM35 | 2012-2012 | 01 | | узнать цену | | 024 | 22958608 | PANEL, F/SEAT BK UPR FIN (EMBLEM) | DM35-69 (AQ9, A45, EBS) | 2012-2012 | 01 | | узнать цену | | 025 | 22737826 | COVER, D/SEAT BK (CASHMERE) | DM35-69 (AL2, A45, EBS, KB6, 01D) (EXC KA1) | 2011-2012 | 01 | | узнать цену | | 025 | 22737828 | COVER, D/SEAT BK (TITANIUM) | DM35-69 (AL2, A45, EBS, KB6, 01C) (EXC KA1) | 2011-2012 | 01 | | узнать цену | | 025 | 22784989 | COVER, D/SEAT BK (EBONY) | DM35-69 (AL2, AQ9, A45, EBS, KB6, 01G) (EXC KA1) | 2012-2012 | 01 | | узнать цену | | 026 | 22958609 | PANEL, F/SEAT BK UPR FIN (RETAINER) | DM35 | 2012-2012 | 01 | | узнать цену | | 027 | 22758828 | PAD, D/SEAT BK | DM35-69 (AL2, AQ9, A45, EBS, KB6) (EXC KA1) | 2012-2012 | 01 | | узнать цену | | 027 | 25939292 | PAD, F/SEAT BK | DM35-69 (AQ9, EAM) (EXC AL2, A45) | 2011-2012 | 01 | L | узнать цену | | 027 | 25939293 | PAD, D/SEAT BK (HT/VENT) | DM35-69 (AL2, AQ9, A45, EBS, KB6) (EXC KA1) | 2011-2012 | 01 | L | узнать цену | | 028 | 25939274 | BLOWER, D/SEAT BACK VENTILATION HEAT & COOL (CARS BUILT W/ VENT BAG HANGING ON FRAME) (FOR 2ND DES SEE 22758933) | DM (EBS, KB6) (1ST DES) | 2012-2012 | 01 | | узнать цену | | 028 | 22758933 | BLOWER, D/SEAT BACK VENTILATION HEAT & COOL | DM (EBS, KB6) | 2012-2012 | 01 | | узнать цену | | 029 | | BOLT, F/SEAT H/RST | | 2011-2012 | | | | | 030 | 25995124 | BUSHING, F/SEAT BK PIV | DM | 2011-2012 | 02 | | узнать цену | | 031 | 25994442 | SUPPORT, D/SEAT H/RST | DM35-69 | 2011-2012 | 01 | | узнать цену |
|
|
