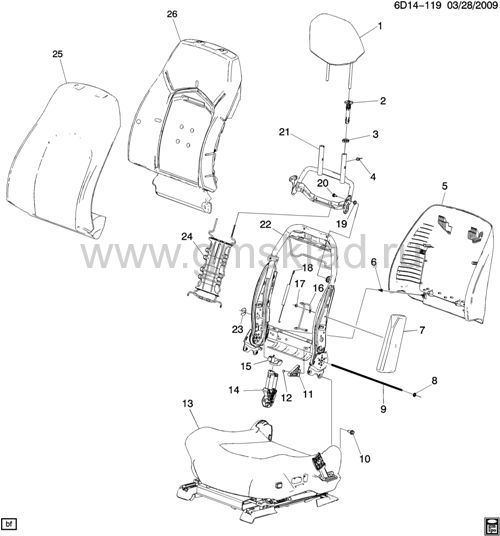

(6D14-119) - 2008 DM69 ВОДИТЕЛЬСКОЕ СИДЕНЬЕ-СПИНКА (EXC POWER LUMBAR AL2, VENTED/HEATED KB6)(2ND DES)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25939472 | RESTRAINT, D/SEAT HD (TITANIUM) (W/ACTIVE H/RST; HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (FOR 1ST DES SEE 25780655) | DM (89W) (2ND DES) | 2008-2008 | 01 | | узнать цену | | 001 | 25984306 | RESTRAINT, D/SEAT HD (EBONY) (WHEN USED TO SERV 2008, REPL BOTH DRIVER & PASSENGER RST) (W/ACTIVE H/RST; HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (FOR 1ST DES SEE 25780656) | DM (19W) (2ND DES) | 2008-2008 | 01 | | узнать цену | | 002 | 25785787 | GUIDE, D/SEAT H/RST (TITANIUM) (W/BUTTON) | DM (89I) | 2008-2008 | 01 | | узнать цену | | 002 | 25785788 | GUIDE, D/SEAT H/RST (EBONY) (W/BUTTON) | D69 (19I) | 2008-2008 | 01 | | узнать цену | | 002 | 25785790 | GUIDE, D/SEAT H/RST (TITANIUM) (W/O BUTTON) | DM (89I) | 2008-2008 | 01 | | узнать цену | | 002 | 25785791 | GUIDE, D/SEAT H/RST (EBONY) (W/O BUTTON) | D69 (19I) | 2008-2008 | 01 | | узнать цену | | 003 | 25994444 | RETAINER, D/SEAT H/RST GDE | D69 | 2008-2009 | 01 | | узнать цену | | 004 | 25995123 | BUMPER, F/SEAT BK CUSH | D69 | 2008-2009 | 02 | | узнать цену | | 005 | 25939328 | PANEL, D/SEAT BK CUSH FIN (MAY ALSO NEED TO REPL PASS SIDE) (W/ACTIVE H/RST; HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (FOR 1ST DES SEE15947278) (INCLS 6) (TITANIUM) | DM (89W) | 2008-2008 | 01 | | узнать цену | | 005 | 25939329 | PANEL, D/SEAT BK CUSH FIN (MAY ALSO NEED TO REPL PASS SIDE) (W/ACTIVE H/RST; HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (FOR 1ST DES SEE 15947279) (INCLS 6) (EBONY) | DM (19W) | 2008-2008 | 01 | | узнать цену | | 006 | 11589329 | CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (ЧАСТЬ OF 5)
[ЗАЖИМ КОНСОЛИ САЛОНА] | | 2008-2010 | 04 | | узнать цену | | 007 | | МОДУЛЬ, D/SEAT SI INFL RST | (IL4) | 2008-2010 | | | | | 008 | 11571066 | ГАЙКА, PUSH-ON, FOR 9/32" (6.9MM) DIA STUDS, 18.4 OD, SAE 1050 STL, GMW30 (ЧАСТЬ OF 22) | | 2008-2010 | 02 | | узнать цену | | 009 | 15894212 | BAR, F/SEAT BK CUSH FRM CR (ЧАСТЬ OF 22) | D69 | 2008-2009 | 02 | | узнать цену | | 010 | 25828643 | БОЛТ, F/SEAT (ЧАСТЬ OF 22) | D69 | 2008-2009 | 04 | | узнать цену | | 011 | | BRACKET, D/SEAT | | 2008-2010 | | | | | 012 | | RIVET, D/SEAT ADJR BRKT | | 2008-2010 | | | | | 013 | | PAD, D/SEAT CUSH (СМ. ГРУППУ 14.000 "ПАССАЖИРСКОЕ СИДЕНЬЕ-ПОДУШКА" ДЛЯ ДЕТАЛЬНОГО ПРОСМОТРА) (EBONY) (14.880) | | 2008-2010 | | | | | 014 | 15894213 | ACTUATOR, D/SEAT RECL (ЧАСТЬ OF 22) | DM | 2008-2010 | 01 | | узнать цену | | 015 | | BRACKET, D/SEAT RECL ACTR (ЧАСТЬ OF 22) | | 2008-2008 | | | | | 016 | | BRACKET, INFL RST D/SEAT SI MDL | | 2008-2010 | | L | | | 017 | 11517068 | NUT-METRIC HEX FLABGE, M6X1, 10MM SOCKET (D/SEAT) | | 2008-2010 | 02 | | узнать цену | | 018 | | ПРУЖИНА, F/SEAT H/RST ADJ RET | | 2008-2010 | | | | | 019 | | BUSHING, F/SEAT BK CUSH PIV | | 2008-2010 | | | | | 020 | | БОЛТ, D/SEAT H/RST SUPT | | 2008-2010 | | | | | 021 | 25994442 | SUPPORT, D/SEAT H/RST | D69 | 2008-2009 | 01 | | узнать цену | | 022 | 25807065 | РАМА, D/SEAT BK CUSH (INCLS 8-10, 14, 15, 23) | DM (AQ9) (EXC AL2, A45) | 2008-2010 | 01 | | узнать цену | | 023 | | CLIP, ACTUATOR D/SEAT RECL) (ЧАСТЬ OF 22 | | 2008-2008 | | | | | 024 | 25939527 | LUMBAR SUB, D/SEAT (W/ACTIVE H/RST-HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) | DM (ILW) | 2008-2009 | 01 | | узнать цену | | 025 | 25939463 | COVER, D/SEAT BK CUSH (TITANIUM) (W/ACTIVE H/RST; HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (FOR 1ST DES SEE 25780302) | DM (AQ9, 89W) (2ND DES) | 2008-2008 | 01 | | узнать цену | | 025 | 25939464 | COVER, D/SEAT BK CUSH (EBONY) (W/ACTIVE H/RST; HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (FOR 1ST DES SEE 25780303) | DM (AQ9, 19W) (2ND DES) | 2008-2008 | 01 | | узнать цену | | 026 | 25939292 | PAD, D/SEAT BK CUSH (W/ACTIVE H/RST; HT OF BK PNL INDENTATION ABOVE MAP PKT=3IN) (FOR 1ST DES SEE 25777056) | DM (ILW) (2ND DES) | 2008-2008 | 01 | | узнать цену |
|
|
