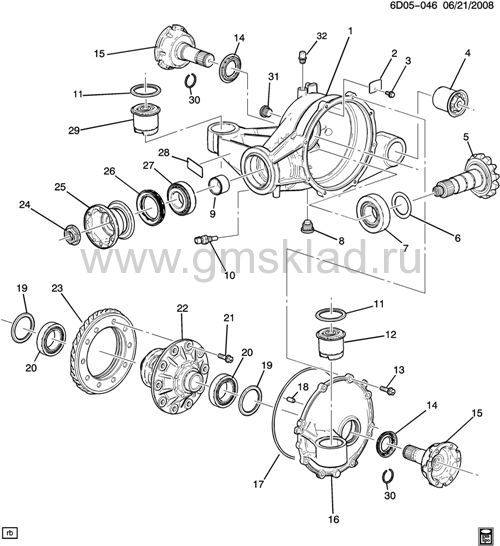

(6D05-046) - 2009-2010 DN69 DIFFERENTIAL КРОНШТЕЙН ЧАСТЬ 1 (G80)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20760922 | КРОНШТЕЙН, DIFF (3.23 RATIO) (INCLS 2-32) | DN (MYD) | 2009-2010 | 01 | | узнать цену | | 001 | 20760923 | КРОНШТЕЙН, DIFF (3.73 RATIO) (INCLS 2-32) | DN (MG9) | 2009-2010 | 01 | | узнать цену | | 002 | | SHIELD, R/AXL VENT (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 003 | | БОЛТ, R/AXL VENT SHLD (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 004 | 25795472 | BUSHING, DIFF CARR (RR) (ЧАСТЬ OF 1)
[ПОДШИПНИК] | DN (MYD, MG9) | 2009-2010 | 01 | | узнать цену | | 005 | | GEAR, DIFF PINION (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 006 | | SHIM, DIFF P/GR (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 007 | | BEARING, DIFF DRV P/GR INR (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 008 | 89059039 | PLUG, R/AXL HSG MAG DRN (ЧАСТЬ OF 1) | D69 | 2009-2009 | 01 | | узнать цену | | 009 | | SPACER, DIFF DRV P/GR BRG (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 010 | | SENSOR ASM (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 011 | 25995849 | SPACER, DIFF CARR (ЧАСТЬ OF 1) | DN (MYD, MG9) | 2009-2010 | 02 | | узнать цену | | 012 | 25995852 | BUSHING, DIFF CARR (LH FRT) (ЧАСТЬ OF 1) | DN (MYD, MG9) | 2009-2010 | 01 | | узнать цену | | 013 | 89058602 | БОЛТ, DIFF CARR BRKT (ЧАСТЬ OF 1) (M8X1.25X30, 24 THD) (FLANGE HEAD) (5.476) | DM69 (GT4, GU5, GU6) | 2009-2009 | 10 | | узнать цену | | 013 | 89058602 | БОЛТ, DIFF CARR BRKT (ЧАСТЬ OF 1) (M8X1.25X30, 24 THD) (FLANGE HEAD) (5.476) | DR69 (GU5, GU6) | 2009-2009 | 10 | | узнать цену | | 013 | 89058602 | БОЛТ, DIFF CARR BRKT (ЧАСТЬ OF 1) (M8X1.25X30, 24 THD) (FLANGE HEAD) (5.476) | DN69 (MYD, MG9) | 2009-2010 | 10 | | узнать цену | | 014 | 25995847 | SEAL, R/AXL SHF (ЧАСТЬ OF 1) | DN (MYD, MG9) | 2009-2010 | 02 | | узнать цену | | 015 | 25995853 | SHAFT, R/AXL (INCLS 30) (ЧАСТЬ OF 1) | DN (MYD, MG9) | 2009-2010 | 02 | | узнать цену | | 016 | | COVER, DIFF CARR (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 017 | 89060115 | SEAL, DIFF CARR CVR (ЧАСТЬ OF 1) (221X3.5) (O-RING) | DN (MYD, MG9) | 2009-2010 | 01 | | узнать цену | | 018 | | PIN, DIFF CARR LOC (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 019 | | SHIM, DIFF BRG (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 020 | | BEARING, DIFF (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 021 | | БОЛТ, RR DIFF R/GR (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 022 | | DIFFERENTIAL, | | 2009-2010 | | | | | 023 | | GEAR, DIFF RING (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 024 | 89058614 | ГАЙКА, DIFF DRV P/GR (ЧАСТЬ OF 1)
[ВИНТ] | D | 2009-2010 | 01 | | узнать цену | | 025 | 25995850 | FLANGE, RR WHL DRV SHF (ЧАСТЬ OF 1) | DN (MYD, MG9) | 2009-2010 | 01 | | узнать цену | | 026 | 25861283 | SEAL, DIFF DRV P/GR (O RING) (ЧАСТЬ OF 1) (5.469)
[УПЛОТНИТЕЛЬНОЕ КОЛЬЦО ДИФФЕРЕНЦИАЛА] | D69 | 2009-2010 | 01 | | узнать цену | | 027 | | BEARING, DIFF DRV P/GR OTR (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 028 | | TAG, R/AXL IDENT (ЧАСТЬ OF 1) | | 2009-2010 | | | | | 029 | 25995851 | BUSHING, DIFF CARR (RH FRT) (ЧАСТЬ OF 1) | DN (MYD, MG9) | 2009-2010 | 01 | | узнать цену | | 030 | | RING, RR WHL DRV SHF (ЧАСТЬ OF 1, 15) | | 2009-2010 | | | | | 031 | 89059038 | PLUG, DIFF CARR FILL (ЧАСТЬ OF 1) (M20X1.5X14) (W/SEAL) | D | 2009-2009 | 01 | | узнать цену | | 032 | 19132947 | VENT, R/AXL HSG (ЧАСТЬ OF 1) (4.510) | D69 | 2009-2010 | 01 | | узнать цену |
|
|
