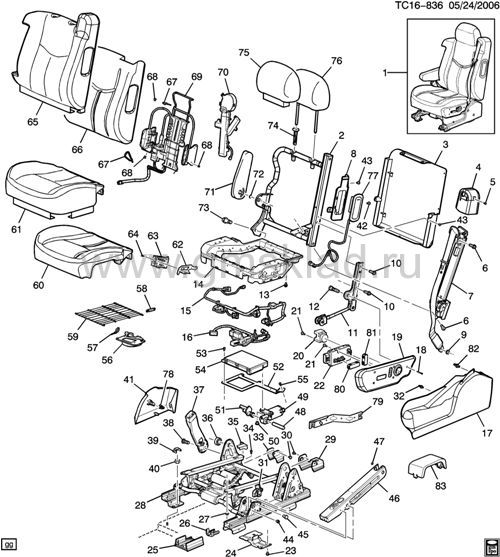

(TC16-836) - 2004-2006 K159(06) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET (AN3, PLATINUM EDITION ULT)
|
|
|||||
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 001 | SEAT, DRVR (W/BELT) | 2004-2006 | |||||
| 002 | 88978379 | FRAME, D/SEAT BK CUSH (USE W/ARMREST & W/AIRBAG) | K1, 2 (06-36) (AG1, AL0, AN3) | 2004-2006 | 01 | узнать цену | |
| 002 | 89046624 | FRAME, D/SEAT BK CUSH (USE W/TRIM CODE ENDING IN "2") | K159 (06) (AL0, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | узнать цену | |
| 003 | 89045814 | PANEL, D/SEAT BK CUSH FIN | K159 (06) (AG2, AJ7, AL0, AN3, HNE, ULT, Y91, Z75, 152) | 2005-2006 | 01 | узнать цену | |
| 004 | 12473303 | COVER, D/SEAT SHLDR BELT OPG TR | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 005 | 12476324 | БОЛТ, D/SEAT SHLDR BELT OPG TR CVR (M4X0.7X12) (HEX HD) (16.679) | K1, 2, 3 | 2004-2006 | 02 | узнать цену | |
| 006 | 12473319 | БОЛТ, D/SEAT SHLDR BELT GDE BRKT (M12X1.75X37) (HEX) (OUTER) (16.682) | K1, 2, 3 | 2004-2006 | 02 | узнать цену | |
| 007 | 88956021 | BELT KIT, D/SEAT (RETR SI) (SHALE) | K1 (06-36) (AN3, AG2, AL0, Z75, 152) | 2004-2006 | 01 | узнать цену | |
| 008 | 12478515 | RETAINER, D/SEAT SI INFL RST MDL | K1, 2 (06) | 2004-2006 | 01 | узнать цену | |
| 009 | 11516078 | ГАЙКА, HFH, M12X1.75, 14THK, 25 O.D., 10, PZOR (D/SEAT BELT (RETR SI)) [ГАЙКА] | 2004-2006 | 01 | узнать цену | ||
| 010 | 12473319 | БОЛТ, D/SEAT RECL (TO BACK FRAME) (M12X1.75X37) (HEX) (OUTER) | CK1, 2, 3 | 2004-2006 | 02 | узнать цену | |
| 011 | 88940876 | RECLINER, D/SEAT | K1, 2, 3 (AN3) | 2004-2006 | 01 | узнать цену | |
| 012 | 89045964 | БОЛТ, D/SEAT BK CUSH LAT (M14X76) (W/BUSHING) | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 013 | 12473290 | RETAINER, D/SEAT CUSH (NATURAL) | CK1, 2, 3 (AE7, AN3, A95) | 2004-2006 | AR | узнать цену | |
| 014 | 88941164 | FRAME, D/SEAT CUSH (USE W/TRIM CODE ENDING IN "2") | K159 (06) (AL0, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | узнать цену | |
| 015 | 88941168 | HARNESS, D/SEAT ADJR WRG | CK1, 2 (AL0, AN3) | 2004-2006 | 01 | узнать цену | |
| 016 | 88941169 | HARNESS, D/SEAT ADJR WRG | CK1, 2 (AN3) | 2004-2006 | 01 | узнать цену | |
| 017 | 88941721 | COVER, D/SEAT RSR FIN (INCLS 32, 82) (SHALE) | K157, 159 (06) (AG2, AL0, AN3, Y91, Z75, 152) | 2004-2006 | 01 | узнать цену | |
| 018 | 88941745 | БОЛТ, D/SEAT ADJR SW BZL (M3.5X1.3X45MM) (PAN HEAD PHILLIPS) | K1, 2, 3 (AN3) | 2004-2006 | 05 | узнать цену | |
| 019 | 88941686 | BEZEL, D/SEAT ADJR SW (SHALE) | K157, 159 (06) (AG2, AN3, Y91, Z75, 152) | 2004-2006 | 01 | узнать цену | |
| 020 | 12473558 | SWITCH, D/SEAT LUMBAR CONT (INCLS KNOB) (4 WAY SWITCH) [ВЫКЛЮЧАТЕЛЬ] | K1, 2, 3 (AN3) | 2004-2006 | 01 | узнать цену | |
| 021 | 11609461 | БОЛТ, HX W/FL WA, M4.2X1.41X16, 9 THD, 12.5 OD, 6010M STL, GMW4205, SELFTA (D/SEAT ADJR SW) [БОЛТ] | 2004-2006 | 05 | узнать цену | ||
| 022 | 12450166 | SWITCH, D/SEAT ADJR (INCLS 80, 81) (INCLS RECLINER SW.) (8-WAY) | K1, 2, 3 (AN3) | 2004-2006 | 01 | узнать цену | |
| 023 | 88936767 | БОЛТ, D/SEAT ADJR (M6X1X10) | CK1, 2, 3 | 2004-2006 | 04 | узнать цену | |
| 024 | 88940328 | BRACKET, D/SEAT ADJR WRG HARN | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 025 | 12473317 | COVER, D/SEAT OTR ADJR FRT FIN (BLACK) | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 026 | 12478516 | COVER, D/SEAT OTR ADJR LWR FRT FIN (BLACK) | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 027 | 11517031 | ГАЙКА, HFH, M8X1.25, 9.4THK, 17.4 O.D., 10, TIN ZN (F/SEAT CUSH FRM) | 2004-2006 | 04 | узнать цену | ||
| 028 | 89041318 | ADJUSTER, D/SEAT (INCLS 31) (8 WAY POWER) | K159 (06) (AG2, AN3) | 2004-2006 | 01 | узнать цену | |
| 029 | 88935557 | COVER, D/SEAT OTR ADJR UPR RR FIN (BLACK) | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 030 | 20538173 | RETAINER, D/SEAT CUSH (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) | CK1, 2, 3 (AE7, AN3, A95) | 2004-2006 | 10 | узнать цену | |
| 031 | 19180158 | SENSOR KIT, INFL RST FRT PASS POSN (PART OF 28) | K1, 2 | 2004-2006 | 01 | узнать цену | |
| 031 | 88982093 | SENSOR KIT, INFL RST FRT PASS POSN (PART OF 28) (INCLS RIVETS) [КОМПЛЕКТ ДЛЯ ДАТЧИКА ПОДУШКИ БЕЗОПАСНОСТИ] | K1, 2 | 2004-2006 | 01 | узнать цену | |
| 032 | RETAINER, D/SEAT ADJR FIN CVR (PART OF 17) | 2004-2006 | |||||
| 033 | 12478511 | COVER, D/SEAT INR ADJR UPR FIN (BLACK) | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 034 | 15044189 | БОЛТ, F/SEAT (M12X1.75X45) (16.679) | K1, 2, 3 | 2004-2005 | 04 | узнать цену | |
| 034 | 15044189 | БОЛТ, F/SEAT (M12X1.75X45) (16.679) | K1, 2, 3 | 2004-2005 | 04 | узнать цену | |
| 035 | 15768515 | COVER, F/SEAT ADJR FIN (SHALE) (DRIVER SIDE) (I/B TRACK) | CK1 (06-36) (15I) | 2004-2006 | 01 | узнать цену | |
| 036 | 88976887 | BUSHING, D/SEAT BK CUSH PIV (16.674) | K1, 2, 3 (AE7, AN3, A95) | 2004-2006 | 01 | узнать цену | |
| 037 | 88957873 | BELT KIT, D/SEAT (BKL SI) (SHALE) (MFD BY TAKATA: W/"PRESS" ON RED RELEASE BUTTON) | K1 (06-36) (AN3, Y91, Z75, 152) | 2004-2006 | 01 | узнать цену | |
| 038 | 88981775 | БОЛТ, D/SEAT BELT (BKL SI) (M12X1.75X35) (PAN HD) | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 039 | 15763293 | COVER, F/SEAT ADJR FIN (BLACK) (DRIVER SIDE) (I/B TRACK) (FRT) | CK1, 2 (06-36) | 2004-2006 | 01 | узнать цену | |
| 040 | 15035434 | ГАЙКА, F/SEAT (M10X1.5X10.8) (FLANGE NUT) (16.679) [ВИНТ] | K1, 2, 3 (AE7, AN3, A95) | 2004-2006 | 04 | узнать цену | |
| 041 | 88941706 | COVER, D/SEAT INR ADJR RR FIN (INCLS 78) (SHALE) | K1, 2 (152, 522) | 2004-2006 | 01 | узнать цену | |
| 042 | 11514623 | БОЛТ, HEX W/CON WA, M6X1X20 (D/SEAT SI INFL RST MDL) | 2004-2006 | 02 | узнать цену | ||
| 043 | 20538173 | RETAINER, D/SEAT BK CUSH FIN PNL (BLACK) (13.9 X 11.09) (X-MAS TREE) (14.685) | CK1, 2, 3 | 2004-2006 | AR | узнать цену | |
| 044 | 88936767 | БОЛТ, D/SEAT RECL (M6X1X10) | CK1, 2, 3 (AE7, AN3, A95) | 2004-2006 | AR | узнать цену | |
| 045 | 88936522 | БОЛТ, D/SEAT RECL (M10X1.5X12.56) (SHLDR) | CK1, 2, 3 (AE7, AN3, A95) | 2004-2006 | 02 | узнать цену | |
| 046 | 88941830 | BRACKET, D/SEAT OTR ADJR | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 047 | 12476880 | RETAINER, D/SEAT ADJR LAT ROD (10.0MM OD, 5.9MM LG) (PUSH-IN) | K1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 048 | 12473994 | CABLE, D/SEAT RECL ACTR (DRIVE) [КАБЕЛЬ ЭЛЕКТРОДВИГАТЕЛЯ МЕХАНИЗМА РЕГУЛИРОВКИ ПОЛОЖЕНИЯ СИДЕНЬЯ] | K1, 2, 3 (AG2, AN3) | 2004-2006 | 01 | узнать цену | |
| 049 | 89026367 | MOTOR KIT, F/SEAT RECL ACTR (INCLS 50) (DRVR & PASS) (ACDelco #89026367) | K1, 2, 3 (AN3) | 2004-2006 | 02 | узнать цену | |
| 050 | БОЛТ, D/SEAT ADJR (PART OF 49) | 2004-2006 | |||||
| 051 | 88938614 | MODULE, D/SEAT RECL (POTENTIOMETER) (DRVR RECLINER & HEATER, PASS HEATER) | K1, 2, 3 (AG2, AN3) | 2004-2006 | 01 | узнать цену | |
| 052 | 12475950 | BRACKET, D/SEAT RECL ACTR MOT (LOWER, MOUNTS TO MOTOR) | CK1, 2, 3 (AN3) | 2004-2006 | 01 | узнать цену | |
| 053 | 12473323 | БОЛТ, D/SEAT RSR FIN CVR (M4X0.7X13) (ROUND WASHER HEAD, #2 POZ1 TAPTITE) | K1, 2, 3 | 2004-2006 | 04 | узнать цену | |
| 054 | 15837361 | MODULE, D/SEAT ADJR MEMORY (ALSO НАГРЕВАТЕЛЬ) | K1, 2 (06) (AG2, AN3) | 2004-2005 | 01 | узнать цену | |
| 055 | 12476324 | БОЛТ, D/SEAT (M4X0.7X12) (HEX HD) | CK1, 2, 3 | 2004-2006 | 02 | узнать цену | |
| 056 | 15119373 | DUCT, D/SEAT CUSH VENTILATION (INCLS MOTOR) | K159 (06) (AL0, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | узнать цену | |
| 057 | TIESTRAP, D/SEAT CUSH | 2004-2006 | |||||
| 058 | 12387712 | ПРУЖИНА, F/SEAT CUSH WIRE (16.674) | K159 (06) (AN3, ULT, Y91, Z75) | 2004-2006 | 08 | узнать цену | |
| 059 | 88941167 | WIRE, D/SEAT CUSH PAD | K159 (06) (AL0, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | узнать цену | |
| 060 | 89046608 | PAD, D/SEAT CUSH | K159 (06) (AL0, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | узнать цену | |
| 061 | 88941809 | COVER, D/SEAT CUSH (SHALE) | K159 (06) (AL0, AN3, ULT, Y91, Z75, 152) | 2004-2006 | 01 | узнать цену | |
| 062 | BRACKET, D/SEAT MODULE | 2004-2006 | |||||
| 063 | 10375535 | MODULE, D/SEAT & P/SEAT HTR CONT | K159 (06) (AN3, HNE, ULT, Z75, 152) | 2004-2006 | 02 | узнать цену | |
| 064 | БОЛТ, D/SEAT MODULE | 2004-2006 | |||||
| 065 | 88941619 | COVER, D/SEAT BK CUSH (SHALE) | K159 (06) (AL0, AN3, ULT, Y91, Z75, 152) | 2004-2006 | 01 | узнать цену | |
| 066 | 89046600 | PAD, D/SEAT BK CUSH | K159 (06) (AL0, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | узнать цену | |
| 067 | TIESTRAP, D/SEAT BK | 2004-2006 | |||||
| 068 | 12473564 | RIVET, D/SEAT LUMBAR SUPT (16.674) | K1 (06) (AN3, Z75) | 2004-2006 | 04 | узнать цену | |
| 069 | 88941171 | LUMBAR, D/SEAT BK | K159 (06) (AL0, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | узнать цену | |
| 070 | 15247415 | DUCT, D/SEAT BACK VENTILATION (INCLS MOTOR) | K159 (06) (AN3, ULT, Z75) | 2005-2006 | 01 | узнать цену | |
| 071 | 88940783 | ARMREST, D/SEAT (SHALE) | K1 (06-36) (AG2, AN3, Y91, Z75, 152) | 2004-2006 | 01 | узнать цену | |
| 072 | CLIP, D/SEAT A/RST | 2004-2006 | |||||
| 073 | 12476887 | БОЛТ, F/SEAT BK CUSH PIV (M10X1.5) (W/BUSHING) (16.679) | CK1, 2, 3 | 2004-2006 | 01 | узнать цену | |
| 074 | 12478541 | SUPPORT, D/SEAT H/RST (SHALE) (W/O BUTTON) | CK1, 2 (522) | 2004-2006 | 02 | узнать цену | |
| 075 | COVER, D/SEAT H/RST (PART OF 76) | 2004-2006 | |||||
| 076 | 88977074 | RESTRAINT, D/SEAT HD (INCLS 75) (SHALE) | K1 (06-36) (AN3, Y91, Z75, 152) | 2004-2006 | 01 | узнать цену | |
| 077 | 15831645 | MODULE, D/SEAT SI INFL RST (SHALE) (W/HARNESS) | K159 (06) (AN3, AG2, AJ7, AL0, HNE, ULT, Y91, Z75, 152) | 2005-2006 | 01 | узнать цену | |
| 078 | CLIP, D/SEAT INR ADJR RR FIN (PART OF 41) | 2004-2006 | |||||
| 079 | 88941174 | BRACKET, D/SEAT RECL ACTR MOT | K159 (06) (AL0, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | узнать цену | |
| 080 | 19122217 | KNOB, F/SEAT ADJR SW (PART OF 22) (EBONY) | K1, 2, 3 (AN3) | 2004-2006 | 01 | узнать цену | |
| 081 | 19122219 | KNOB, F/SEAT RECL (PART OF 22) (EBONY) (DRIVER) | K1, 2, 3 (AN3) | 2004-2006 | 01 | L | узнать цену |
| 082 | RETAINER, D/SEAT ADJR FIN CVR (PART OF 17) | 2004-2006 | |||||
| 083 | 15747307 | COVER, D/SEAT & P/SEAT SI INFL RST MDL WRG CONN BRKT | K1, 2, 3 | 2004-2006 | 01 | узнать цену |
