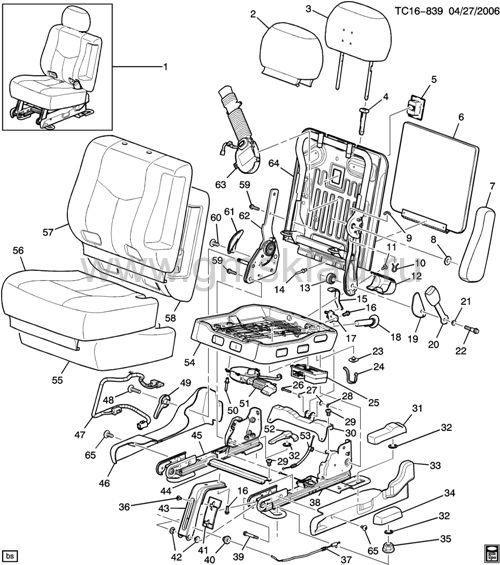

(TC16-839) - 2004-2006 K159(06) ЗАДНЕЕ СИДЕНЬЕ-RH (BUCKET AL4, PLATINUM EDITION ULT)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | | SEAT, RR (ONLY AVAILABLE FOR CURRENT MODEL VEHICLES) | | 2004-2006 | | | | | 002 | 88976635 | COVER, R/SEAT H/RST (SHALE) | K1 (06) (AL4, Z75, 152) | 2004-2006 | 02 | | узнать цену | | 003 | 88940263 | PAD, R/SEAT H/RST (NON-PIVOTING) | K159, 2 (06) (AL4) | 2004-2006 | 02 | | узнать цену | | 004 | 88936944 | SUPPORT, R/SEAT H/RST (NEUTRAL) (W/BUTTON) | K159 (06) (AL4, AN3, Y91, Z75, 152) | 2004-2006 | 04 | | узнать цену | | 005 | 88937988 | LATCH, R/SEAT BK CUSH (NEUTRAL) (FILLER) | K159 (06) (AL4, Z75, 152) | 2004-2006 | 02 | | узнать цену | | 006 | 88937986 | PANEL, R/SEAT BK CUSH FIL (NEUTRAL) | K159 (06) (AL4, Y91, Z75, 152) | 2004-2006 | 01 | R | узнать цену | | 007 | 88976687 | ARMREST, R/SEAT (SHALE) | K1 (06) (AL4, AN3, Y91, Z75, 152) | 2004-2006 | 01 | R | узнать цену | | 008 | | WASHER, D/SEAT A/RST SUPT | | 2004-2006 | | | | | 009 | | CLIP, R/SEAT A/RST | | 2004-2006 | | | | | 010 | | CLIP, R/SEAT A/RST | | 2004-2006 | | | | | 011 | 88936521 | БОЛТ, R/SEAT RSR FIN CVR (M4.2X1.41X13) (ROUND WASHER) | CK1, 2 (06) | 2004-2006 | 03 | | узнать цену | | 012 | 88939099 | COVER, R/SEAT LAT FIN (NEUTRAL) (WHEN REPL CVR W/SEMI-CIRCLE PROFILE QTY OF 3 FOR BENCH SEAT & QTY OF 2 FOR BUCKET SEAT REQUIRED) | K1 (06) (AL4, Z75, 152) | 2004-2006 | 02 | | узнать цену | | 013 | 88976887 | BUSHING, R/SEAT HGE | K1, 2, 3 | 2004-2006 | 02 | | узнать цену | | 014 | 12382634 | RIVET, R/SEAT HGE | K159, 2 (06) (AL4) | 2004-2006 | 06 | | узнать цену | | 015 | 12479651 | STRAP, R/SEAT BK CUSH LAT (SHALE) | K1 (06) (AL4, 152) | 2004-2006 | 02 | | узнать цену | | 016 | 11562386 | БОЛТ, HFH, M8X1.25X24, 22.5 THD, 18 OD, GM6202M, STL, GM4435M.CODE G, TAPTITE (R/SEAT) | | 2004-2006 | 06 | | узнать цену | | 017 | 12477379 | LATCH, R/SEAT (CUSHION) | K1, 2 (06) (AL4) | 2004-2006 | 02 | R | узнать цену | | 018 | 88977100 | CAP, R/SEAT H/RST GDE (SHALE) | K159 (06) (AL4, Z75, 152) | 2004-2006 | 04 | | узнать цену | | 019 | 88978733 | COVER, R/SEAT BELT BOLT (BKL SI) (WHEAT) | K1, 2 (06) | 2004-2006 | 01 | | узнать цену | | 020 | 88955201 | BELT KIT, R/SEAT (BKL SI) (INCLS 21) (SHALE) (SINGLE BKL) (USED FOR RH & LH SIDES) | K1 (06) (AL4, Y91, Z75, 15I) | 2004-2006 | 01 | | узнать цену | | 021 | | BUSHING, R/SEAT BELT (PART OF 20) | | 2004-2006 | | | | | 022 | 88941786 | БОЛТ, R/SEAT (M10X1.5X40) | CK1, 2 (06) (AL4) | 2004-2006 | 01 | | узнать цену | | 023 | 88936538 | BUMPER, R/SEAT CUSH | K1, 2 (06) (AL4) | 2004-2006 | 04 | | узнать цену | | 024 | | STRAP, D/SEAT & P/SEAT HTR CONT MOD | | 2004-2006 | | | | | 025 | 10375535 | MODULE, R/SEAT HTR CONT | K159 (06) (AL4, HNE, ULT, Z75, 152) | 2004-2006 | 02 | | узнать цену | | 026 | 12479655 | БОЛТ, R/SEAT LAT STKR (M6X1.0X44 SHLD) (T30 TORX) | K1, 2 (06) (AL4) | 2004-2006 | 02 | | узнать цену | | 027 | 12479648 | BUSHING, R/SEAT BK CUSH LAT (STRIKER BOLT) | CK1, 2 (06) (AL4) | 2004-2006 | 02 | | узнать цену | | 028 | 88934535 | ГАЙКА, R/SEAT BK CUSH LAT STKR | K1, 2 (06) (AL4) | 2004-2006 | 04 | | узнать цену | | 029 | 12479663 | БОЛТ, R/SEAT RSR (SCREW-PAN HD, M6X1X15, 10.5 THD, 6.1 OD, TAPTITE, TORX) | K159 (06) (AL4, AN3, ULT, Y91, Z75) | 2004-2006 | 10 | | узнать цену | | 030 | 88976872 | BRACE, R/SEAT RSR RR CR (40%) | K159, 2 (06) (AL4) | 2004-2006 | 01 | R | узнать цену | | 031 | 15184822 | COVER, R/SEAT RSR FIN (INCLS 32) (SHALE) | K159 (06) (AL4, 15I) | 2004-2006 | 01 | R | узнать цену | | 032 | 11502737 | ГАЙКА, PUSH ON, M12X1.75, PC (PART OF 31, 34, 52) | | 2004-2006 | 01 | | узнать цену | | 033 | 88976865 | COVER, R/SEAT RSR FIN (SHALE) (I/B) | CK1, 2 (06) | 2004-2006 | 03 | | узнать цену | | 034 | 15184836 | COVER, R/SEAT HGE STUD FIN (INCLS 32) (SHALE) (I/B) | K159 (06) (AL4, 15I) | 2004-2006 | 02 | | узнать цену | | 035 | 03537772 | ГАЙКА, M12X1.75, 10.6THK, 28 O.D., 10, 7111M (R/SEAT) (8.917) | | 2004-2006 | 08 | | узнать цену | | 036 | 12473323 | БОЛТ, R/SEAT RSR FIN CVR (M4X0.7X13) (ROUND WASHER HEAD, #2 POZ1 TAPTITE) | CK1, 2 (06) | 2004-2006 | 04 | | узнать цену | | 037 | 88977011 | CABLE, R/SEAT BK CUSH LAT (EZ ENTRY BY-PASS) | K159, 2 (06) (AL4) | 2004-2006 | 01 | R | узнать цену | | 038 | 88976871 | RISER, R/SEAT INR (INCLS 53) (E-Z ENTRY) (INCLS CAM & E-Z ENTRY CABLE) | K159, 2 (06) (AL4) | 2004-2006 | 01 | R | узнать цену | | 039 | 12477366 | БОЛТ, R/SEAT HGE BRKT (M8X1.25X73.41) | K1, 2 (06) (AL4) | 2004-2006 | 02 | | узнать цену | | 040 | 88939502 | BUSHING, R/SEAT BK CUSH LAT (CABLE) | CK1, 259 (06) (AL4) | 2004-2006 | 01 | | узнать цену | | 041 | 12479652 | COVER, R/SEAT HGE FIN (BLACK) (STRAIGHT LEG) | K1, 2 (06) (AL4) | 2004-2006 | 02 | | узнать цену | | 042 | 12477365 | BUSHING, R/SEAT HGE BRKT | K1, 2, 3 | 2004-2006 | 08 | | узнать цену | | 044 | 12478002 | BRACE, R/SEAT RSR FRT CR (40%) | K159 (06) (AL4, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | R | узнать цену | | 045 | 88976869 | RISER, R/SEAT OTR | K159 (06) (AL4, AN3, HNE, ULT, Y91, Z75, 152) | 2004-2006 | 01 | R | узнать цену | | 046 | 88976864 | COVER, R/SEAT RSR FIN (SHALE) (O/B) | K159 (06) (AL4, Z75, 152) | 2004-2006 | 01 | R | узнать цену | | 047 | 88942913 | HARNESS, ST HTR WRG | K159 (06) (AL4, AN3, HNE, ULT, Y91, Z75, 152) | 2006-2006 | 01 | R | узнать цену | | 048 | 12473322 | БОЛТ, R/SEAT RECL HDL (M4.8X1.59X20) | K1, 2 | 2004-2006 | 01 | | узнать цену | | 049 | 88977076 | HANDLE, R/SEAT RECL (SHALE) | K159 (06) (AL4, AN3, Y91, Z75, 152) | 2004-2006 | 01 | R | узнать цену | | 050 | | RIVET, R/SEAT CUSH VENTILATION DUCT | | 2004-2006 | | | | | 051 | 15119371 | DUCT, R/SEAT CUSH VENTILATION (USED FOR LH AND RH) | K159 (06) (AL4, ULT, Y91, Z75) | 2004-2006 | 01 | | узнать цену | | 052 | 15184838 | COVER, R/SEAT TRK FIN (INCLS 32) (SHALE) (40% O/B RR) | K159 (06) (AL4, AT5, 15I) | 2004-2006 | 01 | R | узнать цену | | 053 | | CABLE, R/SEAT INR RISER (PART OF 38) | | 2004-2006 | | | | | 054 | 88942797 | FRAME, R/SEAT CUSH (LH OR RH) (LH OR RH) | K159 (06) (AL4, ULT, Y91, Z75, 152) | 2004-2006 | 01 | | узнать цену | | 055 | 88941955 | PAD, R/SEAT CUSH | K159 (06) (AL4, AN3, ULT, Y91, Z75) | 2004-2006 | 01 | R | узнать цену | | 056 | 88941824 | COVER, R/SEAT CUSH (SHALE) | K159 (06) (AL4, ULT, Y91, Z75, 152) | 2004-2006 | 01 | R | узнать цену | | 057 | 88941818 | COVER, R/SEAT BK CUSH (SHALE) | K159 (06) (AL4, ULT, Y91, Z75, 152) | 2004-2006 | 01 | R | узнать цену | | 058 | 88942156 | PAD, R/SEAT BK CUSH | K159 (06) (AL4, ULT, Z75) | 2004-2006 | 01 | R | узнать цену | | 059 | 12478382 | БОЛТ, R/SEAT (M10X1.50X28.0) (16.679)
[БОЛТ] | CK1, 2 (06) (AL4, AT5) | 2004-2006 | 02 | | узнать цену | | 060 | | SCREW, R/SEAT BK HGE PRO | | 2004-2006 | | | | | 061 | 88978700 | PROTECTOR, R/SEAT BK HGE | K1, 2 (06) | 2006-2006 | 01 | | узнать цену | | 062 | 88978725 | RECLINER, R/SEAT OTR | K159, 2 (06) (AL4) | 2004-2006 | 01 | R | узнать цену | | 063 | 15119351 | DUCT, R/SEAT BACK VENTILATION | K159 (06) (AL4, ULT, Y91, Z75) | 2004-2006 | 01 | R | узнать цену | | 064 | 88941026 | FRAME, R/SEAT BK CUSH (USE W/TRIM CODES ENDING IN 2) | K159, 2 (06) (AL4) | 2004-2006 | 01 | R | узнать цену | | 065 | 12473322 | БОЛТ, R/SEAT RSR FIN CVR (M4.8X1.59X20) (16.682) | CK159, 2 (06) (AL4) | 2004-2006 | AR | | узнать цену |
|
|
