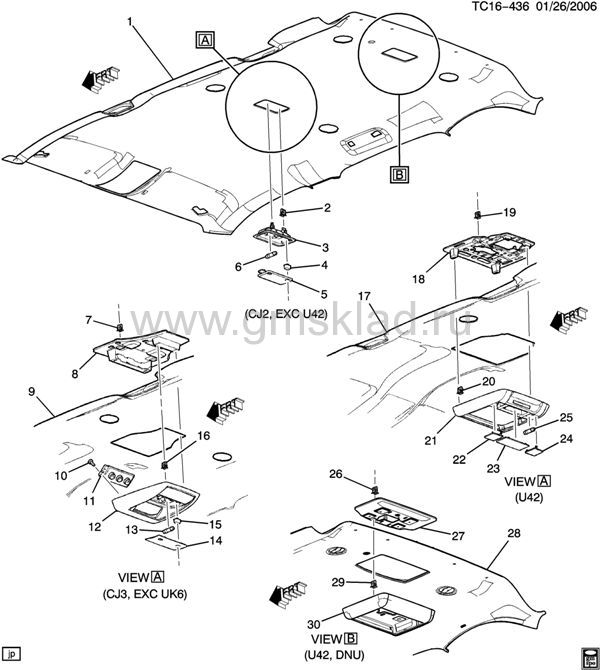

(TC16-436) 2007-2013 CK109,2(06) ОТДЕЛКА ВНУТРЕННЯЯ-ROOF PART 2 CENTER & REAR CONSOLES
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | | PANEL, HDLNG FRT TR (SEE GROUP 16.000 "TRIM/INTERIOR-ROOF, PART 1" FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) | | 2007-2013 | | | | | 002 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 3) | | 2007-2013 | 01 | | узнать цену | | 003 | 15940146 | LAMP, DM & RDG (INCLS 2, 4-6) (OPEL GRAY) | CK109, 2 (06) (ASF, CJ2, 19I, 83I) (EXC U42) | 2009-2013 | 01 | | узнать цену | | 003 | 25850223 | LAMP, DM & RDG (INCLS 2, 4-6) (CASHMERE) | CK107, 109, 2 (06) (ASF, CJ2, 33I, 39I) (EXC U42) | 2011-2013 | 01 | | узнать цену | | 003 | 25851514 | LAMP, DM & RDG (INCLS 2, 4-6) (LINEN) | CK109 (06) (ASF, CF5, CJ2, ULT, U42, Z75, 41I) (EXC U42) | 2008-2013 | 01 | | узнать цену | | 004 | 15853948 | PUSHBUTTON, RDG LP SW (PART OF 3) (AT CONSOLE) | CK1, 2, 3 | 2007-2013 | 02 | | узнать цену | | 005 | 15853945 | LENS, DM & RDG LP (2ND ROW LAMP) (PART OF 3) | CK1, 2, 3 | 2007-2013 | 01 | | узнать цену | | 006 | 19116011 | BULB, C/LP (PART OF 3) (ACDelco #19116011) | CK1, 2, 3 | 2007-2013 | 02 | | узнать цену | | 007 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 8) | | 2007-2013 | 04 | | узнать цену | | 009 | | PANEL, HDLNG FRT TR (SEE GROUP 16.000 "TRIM/INTERIOR-ROOF, PART 1" FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) | | 2007-2013 | | | | | 010 | 11516630 | SCREW, RD, M4.2X1.41X20, TYPE AB PT, GM6010M, GMW4205 (PART OF 12) | | 2007-2013 | AR | | узнать цену | | 012 | 25850219 | CONSOLE, RF (INCLS 10, 13-16) (GRAY) (HVAC CNSL) | CK109, 2 (06) (ASF, CJ3, UK6, 19I, 83I, 84I) | 2010-2013 | 01 | | узнать цену | | 013 | 09431809 | BULB, 6CP TRADE #212-2 (PART OF 12) (ACDelco #L212-2) | | 2007-2013 | 02 | | узнать цену | | 015 | 15853948 | PUSHBUTTON, RDG LP SW (PART OF 12) (AT CONSOLE) | CK1, 2, 3 | 2007-2013 | 02 | | узнать цену | | 016 | 11589329 | CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 12) | | 2007-2013 | 04 | | узнать цену | | 017 | | PANEL, HDLNG FRT TR (SEE GROUP 16.000 "TRIM/INTERIOR-ROOF, PART 1" FOR DETAILED ILLUSTRATED VIEW) (GRAY) | | 2007-2013 | | | | | 018 | 25995622 | RETAINER, RF RR CNSL (INCLS 19) (DVD BACKPLATE - 2ND ROW) | CK1, 2 (06) (U42) | 2007-2013 | 01 | | узнать цену | | 019 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 18) | | 2007-2013 | 02 | | узнать цену | | 020 | 11589329 | CLIP, 12X8.9X15.5, SAE 1050 SPR STL, GMW3044 (PART OF 21) | | 2007-2013 | 02 | | узнать цену | | 021 | 25851515 | CONSOLE, RF (INCLS 20, 22-25) (LINEN) (2ND ROW) | CK109 (06) (ASF, DNU, Z75, 41I) | 2012-2013 | 01 | | узнать цену | | 021 | 25853058 | CONSOLE, RF (INCLS 20, 22-25) (GRAY) (2ND ROW DVD) | CK1, 2, 3 (CJ2, U42, 19I, 33I, 83I, 85I) | 2012-2013 | 01 | | узнать цену | | 021 | 25853059 | CONSOLE, RF (INCLS 20, 22-25) (CASHMERE) (2ND ROW DVD FACE PLT) (PO PNL ASM) | CK1, 2 (22I, 31I, 33I, 39I) | 2007-2013 | 01 | | узнать цену | | 022 | 15853942 | LENS, VIDEO PLYR R/CON SEN (PART OF 21) (RH DVD PUSH-PUSH) | CK1, 2, 3 | 2007-2013 | 01 | L | узнать цену | | 023 | 15853943 | LENS, VIDEO PLYR R/CON SEN (CTR DVD FIXED LENS) (PART OF 21) (CTR DVD FIXED FREEDOM) | CK1, 2, 3 (U42) | 2007-2013 | 01 | | узнать цену | | 024 | 15853941 | LENS, VIDEO PLYR R/CON SEN (PART OF 21) (LH DVD PUSH-PUSH) | CK1, 2, 3 | 2007-2013 | 01 | R | узнать цену | | 025 | 09431809 | BULB, 6CP TRADE #212-2 (PART OF 21) (ACDelco #L212-2) | | 2007-2013 | 01 | | узнать цену | | 026 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 27) | | 2007-2013 | 02 | | узнать цену | | 027 | 25995624 | RETAINER, RF RR CNSL (INCLS 26) (DVD BACKPLATE - 3RD ROW) | CK1, 2 (06) (ASF, CJ2, DNU, U42) | 2007-2013 | 01 | | узнать цену | | 028 | 20886483 | PANEL, HDLNG FRT TR (SEE GROUP 16.000 "TRIM/INTERIOR-ROOF, PART 1" FOR DETAILED ILLUSTRATED VIEW) (CASHMERE) | | 2007-2013 | | | узнать цену | | 029 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 30) | | 2007-2013 | 04 | | узнать цену | | 030 | 25851509 | CONSOLE, RF (INCLS 29) (COCOA) (3RD ROW) | CK109 (06) (41I) | 2008-2013 | 01 | | узнать цену | | 030 | 25931810 | CONSOLE, RF (INCLS 29) (CASHMERE) (DVD-3RD ROW) | CK109, 2 (06) (ASF, CJ2, DNU, U42, Z75, 39I) | 2009-2013 | 01 | | узнать цену |
|
|
