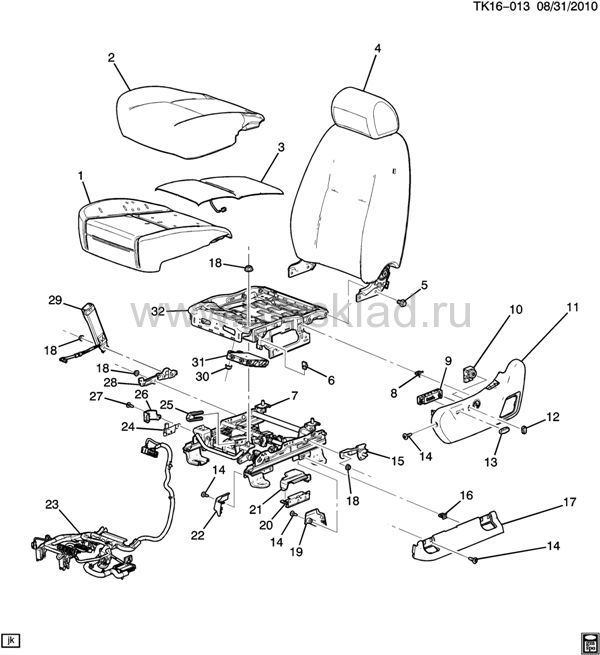

(TK16-013) 2010-2013 CK1,2(06-36) СИДЕНЬЕ ВОДИТЕЛЯ/BUCKET-CUSHION (AN3, EXC HEATED/VENTED HNE,KB6)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 002 | 20779849 | COVER, D/SEAT CUSH (EBONY) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) | CK1, 2, 3 (AN3, 193) | 2010-2013 | 01 | | узнать цену | | 002 | 20779850 | COVER, D/SEAT CUSH (CASHMERE) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) | CK1, 2, 3 (AN3, 333) | 2010-2013 | 01 | | узнать цену | | 002 | 20779851 | COVER, D/SEAT CUSH (TITANIUM) (CARPET INBOARD SIDE FACING) (REPLACES VINYL) | CK1, 2, 3 (AN3, 833) | 2010-2013 | 01 | | узнать цену | | 003 | 20792748 | HEATER, D/SEAT CUSH | CK1, 2, 3 (AN3) (EXC KB6) | 2010-2013 | 01 | | узнать цену | | 004 | | PAD, D/SEAT BK (SEE GROUP 16.000 "DRIVER SEAT/BUCKET-BACK" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 005 | 11515764 | BOLT, HFH, M10X1.5X20, 18THD, 22.3 O.D., 10.9, 7114M (D/SEAT RECL) | | 2010-2013 | 08 | | узнать цену | | 006 | 11513599 | NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/SEAT) (ACDelco #11513599) | | 2010-2013 | 02 | | узнать цену | | 008 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 11) | | 2010-2013 | 03 | | узнать цену | | 009 | 12451497 | SWITCH, D/SEAT ADJR & RECL (8-WAY) (11.558) | CK1, 2 (06-36) (AN3) | 2010-2013 | 01 | | узнать цену | | 010 | 25926719 | SWITCH, D/SEAT LUMBAR CONT (EBONY) (4-PIN, BKWD & FORWD ONLY) | CK1, 2, 3 (33I, 83I, 85I) | 2010-2012 | 01 | | узнать цену | | 010 | 25926719 | SWITCH, D/SEAT LUMBAR CONT (EBONY) (4-PIN, BKWD & FORWD ONLY) | CK1 (33I, 39I, 83I, 85I) | 2012-2012 | 01 | | узнать цену | | 010 | 25926717 | SWITCH, D/SEAT LUMBAR CONT (CASHMERE) (4-PIN, BKWD & FORWD ONLY) (11.378) | CK1, 2 (06-36) (33I, 39I, 83I, 85I) | 2012-2013 | 01 | | узнать цену | | 010 | 25926718 | SWITCH, D/SEAT LUMBAR CONT (LT TITANIUM) (4-PIN, BKWD & FORWD ONLY) (11.378) | CK1, 2 (06-36) (33I, 39I, 83I, 85I) | 2012-2012 | 01 | | узнать цену | | 010 | 25926719 | SWITCH, D/SEAT LUMBAR CONT (EBONY) (4-PIN, BKWD & FORWD ONLY) | CK1 (19I) | 2012-2012 | 01 | | узнать цену | | 011 | 15232562 | COVER, D/SEAT ADJR FIN (EBONY) (8 WAY POWER) (OUTBOARD) | CK1, 2 (06-36) (AN3, 19I) | 2010-2013 | 01 | | узнать цену | | 011 | 15232563 | COVER, D/SEAT ADJR FIN (CASHMERE) (8 WAY POWER) | CK1, 2 (06-36) (AN3, 33I, 39I) | 2010-2013 | 01 | | узнать цену | | 011 | 15232564 | COVER, D/SEAT ADJR FIN (TITANIUM) (8 WAY POWER) | CK1, 2 (06-36) (AN3, 83I) | 2010-2013 | 01 | | узнать цену | | 012 | 15222985 | KNOB, F/SEAT BK RECL (TITANIUM) (11.377) | CK1, 2, 3 (83I) | 2010-2013 | 02 | | узнать цену | | 012 | 15222984 | KNOB, F/SEAT BK RECL (CASHMERE) (11.377) | CK1, 2 (06-36) (33I) | 2010-2013 | 02 | | узнать цену | | 013 | 15222980 | KNOB, D/SEAT ADJR SW (CASHMERE) (11.558) | CK1 (06-36) (33I) | 2010-2012 | 01 | | узнать цену | | 013 | 10325879 | KNOB, D/SEAT ADJR SW (EBONY) (11.558) | CK1, 2 (06-36) (19I) | 2010-2013 | 01 | | узнать цену | | 014 | 11609539 | SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (F/SEAT) | | 2010-2013 | 05 | | узнать цену | | 015 | 15845152 | BRACKET, D/SEAT BELT (RETR SI) (O/B) | CK1, 2, 3 (AL0) | 2010-2013 | 01 | | узнать цену | | 016 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 17) | | 2010-2013 | 01 | | узнать цену | | 017 | 15232584 | COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (EBONY) (OUTBOARD) | CK1, 2 (06-36) (19I) | 2010-2013 | 01 | | узнать цену | | 017 | 15232585 | COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (CASHMERE) (OUTBOARD) | CK1, 2, 3 (33I, 39I) | 2010-2013 | 01 | | узнать цену | | 017 | 15232586 | COVER, D/SEAT OTR ADJR TRK RR FIN (INCLS 16) (TITANIUM) (OUTBOARD) | CK1, 2 (06-36) (83I) | 2010-2013 | 01 | | узнать цену | | 018 | 11517996 | NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (D/SEAT ADJR TOP PLT) (ACDelco #11517996) | | 2010-2013 | 09 | | узнать цену | | 019 | 15243864 | COVER, D/SEAT OTR ADJR TRK RR FIN (EBONY) (INBOARD) | CK1, 2 (06-36) (19I) | 2010-2013 | 01 | | узнать цену | | 019 | 15243865 | COVER, D/SEAT OTR ADJR TRK RR FIN (CASHMERE) (INBOARD) | CK1, 2 (06-36) (33I, 39I) | 2010-2013 | 01 | | узнать цену | | 019 | 15243866 | COVER, D/SEAT OTR ADJR TRK RR FIN (TITANIUM) (INBOARD) | CK1, 2 (06-36) (83I) | 2010-2013 | 01 | | узнать цену | | 020 | 15827134 | BRACKET, D/SEAT (MAIN BODY HARNESS CONNECTION) | CK1, 2, 3 | 2012-2013 | 01 | | узнать цену | | 022 | 15243852 | COVER, D/SEAT INR ADJR TRK FRT FIN (TITANIUM) | CK1, 2, 3 (83I) | 2010-2013 | 01 | | узнать цену | | 022 | 15243850 | COVER, D/SEAT INR ADJR TRK FRT FIN (EBONY) | CK1, 2 (06-36) (19I) | 2010-2013 | 01 | | узнать цену | | 022 | 15243851 | COVER, D/SEAT INR ADJR TRK FRT FIN (CASHMERE) | CK1, 2 (06-36) (33I, 39I) | 2010-2013 | 01 | | узнать цену | | 026 | 20900194 | COVER, AIRBAG D/SEAT POSN SEN | CK1, 2 (06-36) | 2010-2013 | 01 | | узнать цену | | 027 | 88981918 | BOLT, D/SEAT ADJR (M6X1X13.5) (16.714) | CK1, 2, 3 | 2010-2013 | 06 | | узнать цену | | 028 | 25916854 | BRACKET, D/SEAT BELT (BKL SI) (I/B) (INCLDS BKL MOUNT STUD) | CK1, 2, 3 | 2010-2013 | 01 | | узнать цену | | 029 | 19121539 | BELT KIT, D/SEAT (BKL SI) (TITANIUM) | CK1, 2 (06-36) (AN3, 83I) | 2010-2013 | 01 | | узнать цену | | 029 | 19121537 | BELT KIT, D/SEAT (BKL SI) (EBONY) | CK1, 2 (06-36) (AN3, 19I) | 2010-2013 | 01 | | узнать цену | | 029 | 19121538 | BELT KIT, D/SEAT (BKL SI) (CASHMERE) | CK1, 2 (06-36) (AN3, 33I, 39I) | 2012-2013 | 01 | | узнать цену | | 030 | 11516075 | NUT, HFH SELF LK, M6X1, 7.7THK, 14.2 O.D., 9, PZOR (D/SEAT ADJR MEMORY SW) | | 2010-2013 | 06 | | узнать цену | | 031 | 25855630 | MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (11.558) (LABELED 25855630, 25917599, 20870474, 15921044, 15193620, 15246159, 15804058, 15820413, 15826609, 21, 15833435, 15844068, 72, 15853219, 15895345, 48, 15896747) | CK1, 2 (06-36) (AN3) (EXC KB6) | 2010-2013 | 01 | | узнать цену | | 031 | 25855630 | MODULE, D/SEAT ADJR MEMORY (REQUIRES DEALER PROGRAMMING) (11.558) (LABELED 25855630, 25917599, 20870474, 15921044, 15193620, 15246159, 15804058, 15820413, 15826609, 21, 15833435, 15844068, 72, 15853219, 15895345, 48, 15896747) | CK1, 2 (06-36) (AN3) (EXC KB6) | 2010-2013 | 01 | | узнать цену | | 032 | 22781434 | FRAME, D/SEAT CUSH | CK1, 2 (06-36) | 2012-2013 | 01 | | узнать цену |
|
|
