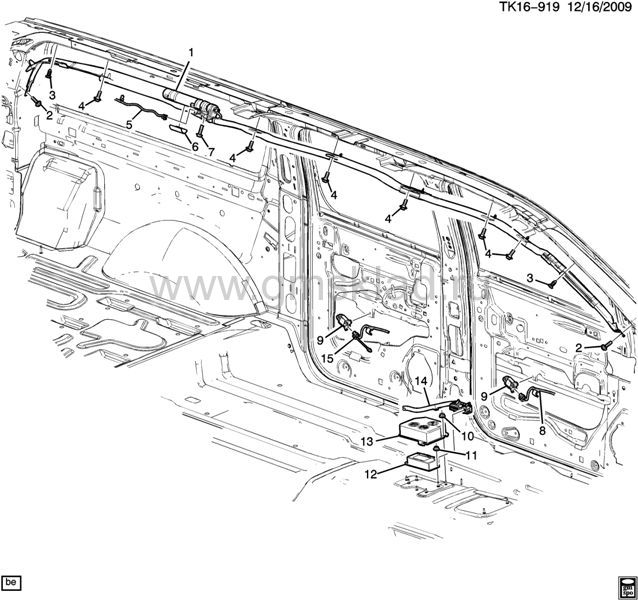

(TK16-919) 2010-2013 CK109,209(06) СИСТЕМА ПОДУШЕК БЕЗОПАСНОСТИ/ROOF SIDE(REAR SEAT #2 AS3)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25881970 | AIRBAG, RF S/RL (INCLS 2-4, 6) (1ST, 2ND, & 3RD ROW) | CK109, 209 (06) (ASF, AS3) | 2010-2013 | 01 | R | узнать цену | | 001 | 20955120 | AIRBAG, RF S/RL (INCLS 2-4, 6) (1ST, 2ND, & 3RD ROW) | CK109, 209 (06) (ASF, AS3) | 2010-2013 | 01 | L | узнать цену | | 002 | 11588337 | BOLT, R/RL AIRBAG (PART OF 1) (6 X 1 X 20) (8.900) | CK1, 2 | 2010-2013 | 02 | | узнать цену | | 003 | 11589181 | RETAINER, PUSHIN, FITS 6.24 HOLE IN 0.8-10 THK PNL, NYLON, BLACK (PART OF 1) | | 2010-2013 | AR | | узнать цену | | 004 | 11588337 | BOLT, HEX W/FL WA, M6X1X20, 9 THD, 17 OD, 6202M, GMW3200, TAP, DOG PT. (PART OF 1) | | 2010-2013 | AR | | узнать цену | | 005 | | HARNESS, RF WRG (SEE GROUP 02.000 "WIRING HARNESS/ROOF" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 006 | | LABEL, RF S/RL AIRBAG WRNG (PART OF 1) | | 2010-2013 | | | | | 007 | 11609939 | BOLT, R/RL AIRBAG (M6X1X30, 21 THD, 17 OD) (8.977) | CK1, 2 (06) | 2010-2013 | 04 | | узнать цену | | 008 | | HARNESS, FRT S/D DR WRG (SEE GROUP 16.000 "DOOR HARDWARE/FRONT" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 009 | 20884470 | SENSOR, AIRBAG SI IMP | CK1, 2, 3 (06-36) (ASF) | 2011-2013 | 04 | | узнать цену | | 010 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (AIRBAG SEN & DIAGN MDL CVR) | | 2010-2013 | 03 | | узнать цену | | 011 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (SEN & DIAGN AIRBAG MDL) | | 2010-2013 | 03 | | узнать цену | | 012 | 13579116 | MODULE, AIRBAG SEN & DIAGN | CK1, 2, 3 (ASF) | 2012-2013 | 01 | | узнать цену | | 013 | 25898069 | COVER, AIRBAG SEN & DIAGN | CK1, 2 (06-36) (9S1, 9U3) (EXC M1F) | 2010-2013 | 01 | | узнать цену | | 013 | 25898069 | COVER, AIRBAG SEN & DIAGN | CK1, 2 (06-36) (9N5) (EXC M1F) | 2010-2013 | 01 | | узнать цену | | 014 | | HARNESS, BODY WRG (SEE GROUP 02.000 "WIRING HARNESS/BODY" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 015 | | HARNESS, RR S/D DR WRG (SEE GROUP 16.000 "DOOR HARDWARE/REAR" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | |
|
|
