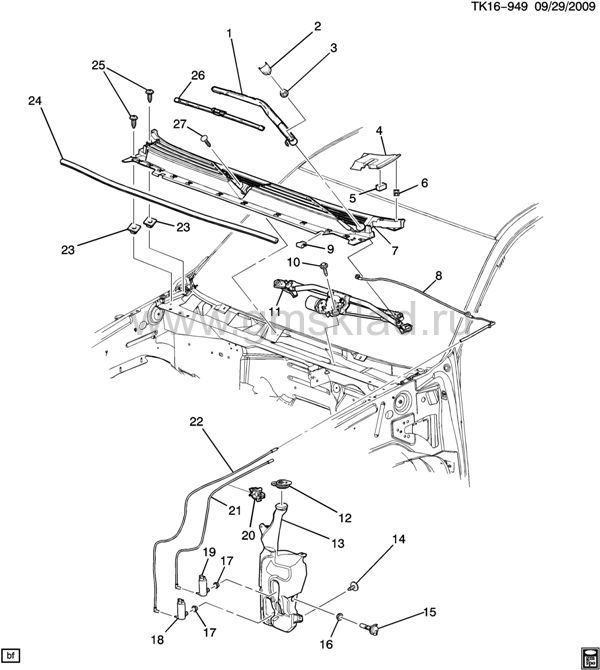

(TK16-949) 2011-2013 CK1(06) СИСТЕМА СТЕКЛООЧИСТИТЕЛЯ ВЕТРОВОГО СТЕКЛА (POLICE PACKAGE PPV)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20959488 | ARM, WSW (INCLS 2) (BLACK) | CK1 (06) (PPV) | 2010-2013 | 01 | R | узнать цену | | 001 | 20959487 | ARM, WSW (INCLS 2) (BLACK) | CK1 (06) (PPV) | 2010-2013 | 01 | L | узнать цену | | 002 | 15776792 | CAP, WSW ARM FIN (PART OF 1) (WINDSHIELD-CAP WIPER ARM NUT) | CK1 (06) (PPV) | 2010-2013 | 02 | | узнать цену | | 003 | 11609634 | NUT, HEX WASH, M10X1.25, 7MM THK, 20 WA OD, 9 STL, 7111M, CON SPR WA. (WSW ARM) | | 2010-2013 | 02 | | узнать цену | | 004 | 25820729 | PANEL, AIR INL GRL (INCLS 6) (BLACK) | CK1, 2 (06) | 2010-2013 | 01 | L | узнать цену | | 004 | 25820730 | PANEL, AIR INL GRL (INCLS 6) (BLACK) | CK1, 2 (06) | 2010-2013 | 01 | R | узнать цену | | 005 | 20779836 | SPACER, AIR INL GRL PNL | CK1, 2, 3 | 2010-2013 | 01 | | узнать цену | | 006 | 11609796 | CLIP, AIR INL GRL PNL (PART OF 4) (11.0 X 12.9 X 6.1MM) (8.950) | CK1, 2 (06) | 2010-2013 | 03 | | узнать цену | | 007 | 25872303 | PANEL, AIR INL GRL (CTR) (INCLS 8, 24, 27) (BLACK) | CK1, 2 (06) | 2010-2013 | 01 | | узнать цену | | 008 | 20908176 | HOSE, WSWA NOZ (PART OF 7) | CK1, 2 (06-36) | 2010-2013 | 01 | | узнать цену | | 009 | 15999788 | RETAINER, AIR INL GRL PNL (17X15.25X8.6) (U-SHAPED/CLIP) | CK1, 2, 3 | 2010-2013 | 02 | | узнать цену | | 010 | 11513947 | BOLT, HEX, W/WA, M6X1X35, 24 O.D., AC PT, 9.8, POR (WSW SYS MDL) | | 2010-2013 | 03 | | узнать цену | | 011 | 25923882 | MODULE, WSW SYS | CK1, 2, 3 | 2012-2013 | 01 | | узнать цену | | 012 | 25731418 | CAP, WSWA SOLV CNTNR (10.154) | CK1, 2, 3 | 2010-2013 | 01 | | узнать цену | | 012 | 25731418 | CAP, WSWA SOLV CNTNR (10.154) | CK1, 2 (06) (C25) | 2010-2013 | 01 | | узнать цену | | 013 | 20999334 | CONTAINER, WSWA SOLV (*KIT1) | CK1, 2 (06) (C25) | 2011-2013 | 01 | | узнать цену | | 014 | 11516578 | BOLT, HEX W/FL WA, M6X1X25, 16 THD, 24 OD, 9.8, 7114M, MACH, 6MM P PT. (WSWA SOLV CNTNR) | | 2010-2013 | 03 | | узнать цену | | 015 | | INDICATOR, WSWA SOLV LVL (*KIT2) | | 2011-2013 | | | | | 016 | 15248578 | GROMMET, WSWA SOLV CNTNR (*KIT1, KIT2) | CK1, 2, 3 | 2010-2013 | 01 | | узнать цену | | 017 | 15927514 | GROMMET, WSWA PUMP (PUMP GROMMET) (*KIT1, KIT3) (ACDelco #15927514) | CK1, 2, 3 | 2010-2013 | 01 | | узнать цену | | 018 | | PUMP, WSWA (*KIT3) | | 2011-2013 | | | | | 019 | | PUMP, WSWA (*KIT3) | | 2010-2013 | | | | | 020 | 10150076 | CLIP, WSWA NOZ HOSE (CLIP TO RET THE COWL HOSE IN THE FENDER) (18.8 MM DIA) (ROUND CLIP) (3.425) | CK1, 2, 3 | 2010-2013 | 01 | | узнать цену | | 021 | 25887957 | HOSE, R/WDO WA PUMP (SEE GROUP 16.000 "WIPER SYSTEM/ REAR WINDOW" FOR DETAILED ILLUSTRATED VIEW) (REAR JUMPER HOSE) | CK1, 2 (06) (C25) | 2010-2013 | 01 | | узнать цену | | 022 | 25887977 | HOSE, WSWA PUMP (FRT JUMPER HOSE) | CK1, 2, 3 | 2010-2013 | 01 | | узнать цену | | 023 | 11589183 | NUT, PUSH IN, W/SEAL, 4.2X1.41, 6.35-6.48 SQ HL, 9.5 SQ HD, 0.787-2.765 PNL THK, NYL (AIR INL GRL PNL) | | 2010-2013 | 04 | | узнать цену | | 024 | 15200240 | WEATHERSTRIP, HOOD RR (PART OF 7) | CK1, 2 (06-36) | 2010-2013 | 01 | | узнать цену | | 025 | 11609797 | BOLT, AIR INL GRL PNL (10.268) | CK1, 2, 3 | 2010-2013 | 04 | | узнать цену | | 026 | 25877402 | BLADE, WSW (22") (ONE PIECE FLAT BLADE) (W/SIDE LOCK RELEASE CONNECT ON CENTER) | CK1 (06) (PPV) | 2010-2013 | 02 | | узнать цену | | 027 | 15048061 | RETAINER, AIR INL GRL PNL (PART OF 7) (PUSH IN) | CK1, 2 (06-36) | 2010-2013 | 01 | | узнать цену | | K01 | 20999340 | CONTAINER KIT, WSWA SOLV (INCLS 13, 16, 17) (USE T/W 20999338 WHEN REPLACING 15248577, 15213911 OR 15942522.) | CK1, 2 (06) | 2010-2013 | 01 | | узнать цену | | K02 | 20999338 | INDICATOR KIT, WSWA SOLV LVL (INCLS 15, 16) (LEVEL SENSOR KIT W/GROMMET) (KIT HAS 16MM DIAM LVL SENSOR) (ACDelco #20999338) (USE T/W 20999340 WHEN REPLACING 15248577, 15213911 OR 15942522.) | CK1, 2 (06) | 2010-2013 | 01 | | узнать цену | | K03 | 15942524 | PUMP KIT, WSWA W/SEAL (INCLS 17-19) (RR PUMP KIT W/GROMMET) (ACDelco #15942524) | CK1, 2 (06) (C25) | 2010-2013 | 01 | | узнать цену | | K03 | 20999342 | PUMP KIT, WSWA W/SEAL (INCLS 17-19) (FRONT PUMP KIT) | CK1, 2 (06) (C25) | 2011-2013 | 01 | | узнать цену |
|
|
