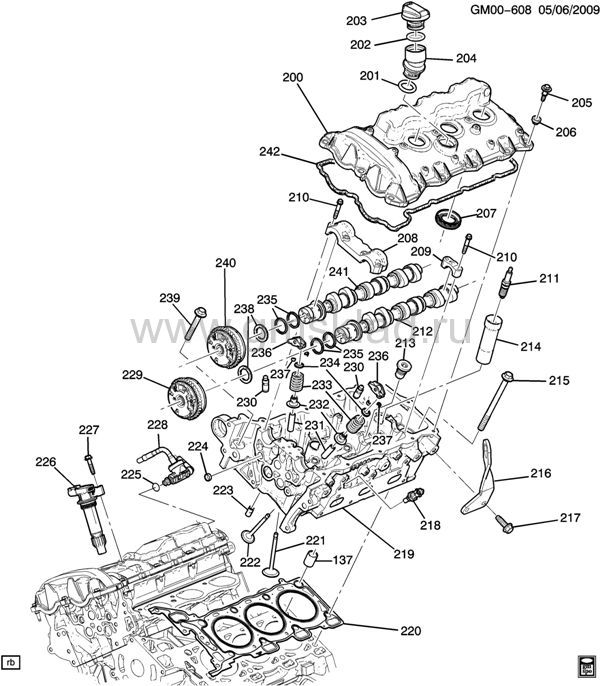

(GM00-608) 2010-2011 N ДВИГАТЕЛЬ В СБОРЕ-2.8L V6 PART 2 ГОЛОВКА ЦИЛИНДРОВ И СВЯЗАННЫЕ ДЕТАЛИ (LAU/2.8-4)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 137 | 12570326 | PIN, CYL HD LOC | N (LAU, LF1) | 2010-2011 | 04 | | узнать цену | | 200 | 12612437 | COVER, CM/SHF (INCLS 205-207, 242) | N (LAU) | 2010-2011 | 01 | R | узнать цену | | 200 | 12623682 | COVER, CM/SHF (INCLS 205-207, 242) | N (LAU) | 2010-2011 | 01 | L | узнать цену | | 201 | 12593348 | SEAL, OIL FIL TUBE (O RING) (PART OF 204) (27.94MM I.D.) (SIZE #320) (1.758) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 202 | 12593348 | SEAL, OIL FIL CAP (O RING) (PART OF 203, 204) (27.94MM I.D.) (SIZE #320) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 203 | 12597637 | CAP, OIL FIL (INCLS 202) (PART OF 204) (ACDelco #FC237) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 204 | 12629411 | TUBE, OIL FIL (INCLS 201-203) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 205 | 11570020 | BOLT, CM/SHF CVR (PART OF 200) (INCLS 206) | N (LAU, LF1) | 2010-2011 | 26 | | узнать цену | | 205 | 11570020 | BOLT, CM/SHF CVR (PART OF 200) (INCLS 206) | N (LAU, MXE) | 2011-2011 | 13 | R | узнать цену | | 205 | 11570020 | BOLT, CM/SHF CVR (PART OF 200) (INCLS 206) | N (LAU, MXE) | 2011-2011 | 13 | | узнать цену | | 206 | 12595122 | INSULATOR, CM/SHF CVR BOLT (PART OF 200, 205) | N (LAU, LF1) | 2010-2011 | 26 | | узнать цену | | 207 | 12607600 | SEAL, SPLG WIRE BOOT (O RING) (PART OF 200) (2.271) | N (LAU, MXE) | 2011-2011 | 06 | | узнать цену | | 208 | | CAP, CM/SHF BRG (PART OF 219) | | 2010-2011 | | | | | 209 | | CAP, CM/SHF BRG (PART OF 219) | | 2010-2011 | | | | | 210 | 11518856 | BOLT, HFH, M6X1X43.4, 14.8 THD, 11 O.D., 8.8, GMW3179 CODE G (PART OF 219) | | 2010-2011 | 36 | | узнать цену | | 211 | 55564748 | SPARK PLUG, (ACDelco #55564748) (IRIDIUM) | N (LAU) | 2010-2011 | 06 | | узнать цену | | 212 | 12632199 | CAMSHAFT, EXH (INCLS 235) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638410) | N (LAU) (1ST DES) | 2011-2011 | 01 | L | узнать цену | | 212 | 12638410 | CAMSHAFT, EXH (INCLS 235) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12632199) | N (LAU, MXE) (2ND DES) | 2011-2011 | 01 | L | узнать цену | | 212 | 12638412 | CAMSHAFT, EXH (INCLS 235) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12632201) | N (LAU, MXE) (2ND DES) | 2011-2011 | 01 | R | узнать цену | | 212 | 12632201 | CAMSHAFT, EXH (INCLS 235) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638412) | N (LAU) (1ST DES) | 2011-2011 | 01 | R | узнать цену | | 213 | 11561751 | PLUG, CYL HD WAT JKT HOLE (PART OF 219) (M20X1.5X30.5) (1.531) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 214 | | SLEEVE, SPLG WIRE (PART OF 219) | | 2010-2011 | | | | | 215 | 11518863 | BOLT, CYL HD (M11X2X152) | N (LAU) | 2010-2011 | 16 | | узнать цену | | 216 | 12798365 | BRACKET, ENG LIFT | N (LAU) | 2010-2011 | 01 | R | узнать цену | | 216 | 55561157 | BRACKET, ENG LIFT | N (LAU) | 2010-2011 | 01 | L | узнать цену | | 217 | 11515767 | BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (ENG LIFT BRKT) (T/W 12345493) | | 2010-2011 | 04 | | узнать цену | | 218 | 12639899 | SENSOR, ENG COOL TEMP (MATING CONN W/LEADS USE 88988963) (ACDelco #213-4777) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 218 | 12639899 | SENSOR, ENG COOL TEMP (MATING CONN W/LEADS USE 88988963) (1.150) (ACDelco #213-4777) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 219 | 12635528 | HEAD, CYL (W/VLVS) (INCLS 208-210, 213, 214, 223, 224, 231, 238) | N (LAU) | 2011-2011 | 01 | R | узнать цену | | 219 | 12635527 | HEAD, CYL (W/VLVS) (INCLS 208-210, 213, 214, 223, 224, 231, 238) | NG26 (LAU, MXE) | 2011-2011 | 01 | L | узнать цену | | 220 | 12634480 | GASKET, CYL HD | N (LF1, LAU) | 2011-2011 | 01 | R | узнать цену | | 220 | 12634481 | GASKET, CYL HD | N (LAU, LF1) | 2011-2011 | 01 | L | узнать цену | | 221 | 12584761 | VALVE, INT (0.075MM O.S.) (0.297) | N (LAU) | 2010-2011 | 12 | | узнать цену | | 222 | 12575356 | VALVE, EXH | N (LAU) | 2010-2011 | 12 | | узнать цену | | 223 | 12580965 | VALVE, ENG OIL MANIF CHK (PART OF 219) | N (LAU, LF1) | 2011-2011 | 04 | | узнать цену | | 224 | 11562127 | PLUG, CYL HD OIL GAL (PART OF 219) (CUP-14.22 OD, 6.6 THK, 304SS) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 225 | | SEAL, P/B BOOS (PART OF 228) | | 2010-2011 | | | | | 226 | 12632479 | COIL, IGN (INCLS 227) (ACDelco #D515C) | N (LAU, LF1) | 2010-2011 | 06 | | узнать цену | | 227 | 11588715 | BOLT, HFH, M6X1X35, 18 THD, 14.2 OD, 8.8, GMW3359, 5MM M POINT (PART OF 226) | | 2010-2011 | 06 | | узнать цену | | 228 | 55556698 | VENTURI, P/B BOOS VAC PIPE (INCLS 225) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 229 | 12614464 | ACTUATOR, CM/SHF POSN (EXH) | N (LAU) | 2010-2011 | 02 | | узнать цену | | 230 | 12572638 | ADJUSTER, HYD VLV LASH (ACDelco #HL129) | N (LAU, LF1) | 2010-2011 | 24 | | узнать цену | | 231 | | GUIDE, VLV (PART OF 219) | | 2010-2011 | | | | | 232 | 19207664 | SEAL KIT, VLV STEM OIL (12 SEALS PER PACKAGE) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 233 | 12616671 | SPRING, VLV | N (LAU, LF1) | 2010-2011 | 24 | | узнать цену | | 234 | 12575196 | RETAINER, VLV SPR | N (LAU, LF1) | 2010-2011 | 24 | | узнать цену | | 235 | 12574477 | RING, CM/SHF SPKT OIL SEAL (PART OF 212, 241) | N (LAU, LF1) | 2010-2011 | 04 | | узнать цену | | 236 | 24100294 | ARM, VLV RKR | N (LAU, LF1) | 2010-2011 | 24 | | узнать цену | | 237 | 12575197 | KEY, VLV STEM | N (LAU, LF1) | 2010-2011 | 48 | | узнать цену | | 238 | 12630941 | WASHER, CM/SHF THR (PART OF 238) (USED ON ACTUATORS 12603744-745, 12606653 & 12630916-918) | N (LAU, LF1) | 2011-2011 | 04 | | узнать цену | | 238 | 12632859 | WASHER, CM/SHF THR (PART OF 238) (USED ON ACTUATORS 12614464 & 12626160-161) (WASHER IS NOT REQUIRED FOR HEADS WITH FRONT CAM CAP MARKED 12634613) | N (LAU, LF1) | 2011-2011 | 04 | | узнать цену | | 239 | 11588734 | BOLT, HFH, M8X1.25X90, 21.6 THD, 18 O.D., 8.8, GMW3359 (CYL HD) | | 2010-2011 | 03 | | узнать цену | | 240 | 12626161 | ACTUATOR, CM/SHF POSN (INT) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) | N (LAU) | 2011-2011 | 01 | L | узнать цену | | 240 | 12626160 | ACTUATOR, CM/SHF POSN (INT. USE T/W WASHER 12632859) (4 SCREWS ON BACKPLATE) (DO NOT USE A WASHER WITH FRONT CAM CAP MARKED 12634613) | N (LAU) | 2010-2011 | 01 | R | узнать цену | | 241 | 12632200 | CAMSHAFT, INT (INCLS 235) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638411) | N (LAU) (1ST DES) | 2011-2011 | 01 | L | узнать цену | | 241 | 12638411 | CAMSHAFT, INT (INCLS 235) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12632200) | N (LAU) (2ND DES) | 2011-2011 | 01 | L | узнать цену | | 241 | 12638413 | CAMSHAFT, INT (INCLS 235) (W/LARGE THRUST RING BEHIND FRONT CAM CAP) (FOR 1ST DES SEE 12632202) | N (LAU, MXE) (2ND DES) | 2011-2011 | 01 | R | узнать цену | | 241 | 12632202 | CAMSHAFT, INT (INCLS 235) (W/THRUST RING CAPTURED UNDER FRONT CAM CAP) (FOR 2ND DES SEE 12638413) | N (LAU) (1ST DES) | 2011-2011 | 01 | R | узнать цену | | 242 | 12595106 | SEAL, CM/SHF CVR (PART OF 200) (USED ON CVR W/CMPRN LIMITER BOLT W/SLEV UNDER BOLT INSL) (ACDelco #12595106) | N (LAU) | 2010-2011 | 01 | L | узнать цену | | 242 | 12641261 | SEAL, CM/SHF CVR (PART OF 200) | N (LAU, LF1) | 2010-2011 | 01 | R | узнать цену |
|
|
