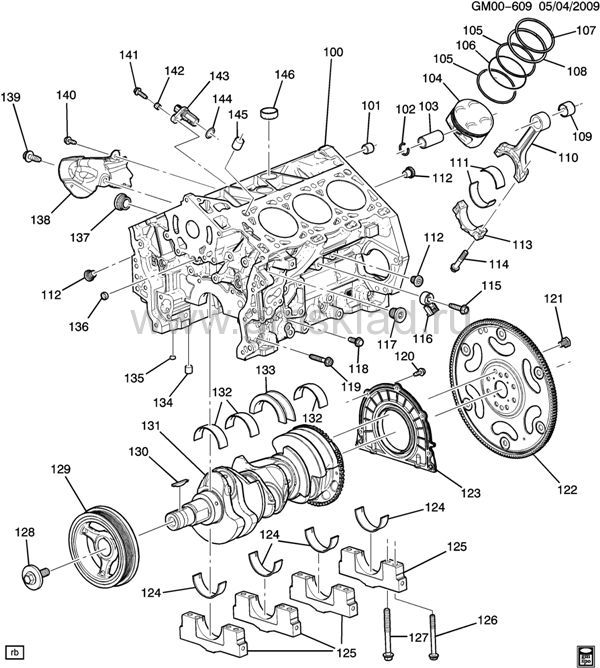

(GM00-609) 2010-2011 N ДВИГАТЕЛЬ В СБОРЕ-2.8L V6 PART 1 БЛОК ЦИЛИНДРОВ И ВНУТРЕННИЕ ДЕТАЛИ (LAU/2.8-4)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 100 | | BLOCK, ENG (MCHG) | | 2010-2011 | | | | | 101 | 12597210 | PIN, TRANS LOC | N | 2011-2011 | 02 | | узнать цену | | 102 | 12566186 | RETAINER, PSTN PIN (PART OF 104) (MAHLE PISTONS) | N (LAU, LF1) (EXC CV2) | 2010-2011 | 02 | | узнать цену | | 102 | 19300907 | RETAINER, PSTN PIN (PART OF 104) | N (LAU, LF1, CV2) | 2010-2011 | 01 | | узнать цену | | 103 | | PIN, PSTN (PART OF 104) | | 2010-2011 | | | | | 104 | 92068444 | PISTON, (W/PIN) (INCLS 102, 103) (STD) | N (LAU) | 2010-2011 | 06 | | узнать цену | | 104 | 92068445 | PISTON, (W/PIN) (INCLS 102, 103) (.25MM O.S.) | N (LAU) | 2010-2011 | 06 | | узнать цену | | 105 | | RAIL, PSTN OIL RING (*KIT4) | | 2010-2011 | | | | | 106 | | SPACER, PSTN OIL RING RL (*KIT4) | | 2010-2011 | | | | | 107 | | RING, PSTN CMPRN UPR (*KIT4) | | 2010-2011 | | | | | 108 | | RING, PSTN CMPRN LWR (*KIT4) | | 2010-2011 | | | | | 109 | | BUSHING, CONN ROD (PART OF 110) | | 2010-2011 | | | | | 110 | 12608427 | ROD, CONN (INCLS 109, 113, 114) | N (LAU) | 2010-2011 | 06 | | узнать цену | | 111 | | BEARING, CONN ROD (*KIT3) | | 2010-2011 | | | | | 112 | 11561583 | PLUG, ENG BLK OIL GAL (M14X1.5X16, 22 OD) (0.253) | N (LAU) | 2010-2011 | 03 | | узнать цену | | 113 | | CAP, CONN ROD (PART OF 110) | | 2010-2011 | | | | | 114 | 11519680 | BOLT, CONN ROD (PART OF 110) (M9X1X53) | N (LAU, LF1) | 2010-2011 | 12 | | узнать цену | | 115 | 11589313 | BOLT, HFH, M8X1.25X39, 29 THD, 18 OD, 8.8 STL, GMW3359, M-PT. (PART OF 116) | | 2010-2011 | 01 | | узнать цену | | 116 | 12605738 | SENSOR, KNOCK (INCLS 115) (MATING CONN W/LEADS USE 88953268) (ACDelco #213-4404) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 117 | 11561751 | PLUG, ENG BLK OIL GAL (M20X1.5X30.5) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 118 | 11609410 | BOLT, HFH, M8X1.25X25, 10.9, GMW3179 (CR/SHF BRG CAP) (0.056) | | 2010-2011 | 04 | | узнать цену | | 119 | 11589000 | BOLT, HFH, M8X1.25X50, 24 THD, 18 OD, 10.9, GMW3359, RED BODY, W/ADH (CR/SHF BRG CAP) | | 2010-2011 | 04 | | узнать цену | | 120 | 11588712 | BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (CR/SHF RR OIL SEAL RET) | | 2010-2011 | 05 | | узнать цену | | 121 | 11518862 | BOLT, HEX, W/ADH, M10X1X15.5, 10.9, HDR-PT (A/TRNS FLEX PLT) | | 2010-2011 | 08 | | узнать цену | | 122 | 12606654 | PLATE, A/TRNS FLEX | N (LAU) | 2010-2011 | 01 | | узнать цену | | 123 | 12637710 | SEAL, CR/SHF RR OIL (CLEAN ALL SEALING SURFACES WITH BRAKE CLEANER, AND DRY, TO ENSURE BONDING W/SEALANT) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 124 | | BEARING, CR/SHF LWR (*KIT1, KIT2) | | 2010-2011 | | | | | 125 | | CAP, CR/SHF BRG | | 2010-2011 | | | | | 126 | 11518861 | BOLT, HFH, W/REDCD BODY, M8X1.25X90, 26 THD, 18 O.D., 10.9, GM4277M (CR/SHF BRG CAP) | | 2010-2011 | 08 | | узнать цену | | 127 | 12560272 | BOLT, CR/SHF BRG CAP (M10X2X102.5, 24.5) | N (LAU) | 2010-2011 | 08 | | узнать цену | | 128 | 11569873 | BOLT, CR/SHF BALR (M14X1.5X48.4) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 129 | 12626355 | BALANCER, CR/SHF (SINGLE BELT W/KEYWAY) (ACDelco #12626355) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 130 | 12601937 | KEY, CR/SHF BALR | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 131 | 12617925 | CRANKSHAFT, | N (LAU) | 2011-2011 | 01 | | узнать цену | | 132 | | BEARING, CR/SHF UPR (*KIT1) | | 2010-2011 | | | | | 133 | | BEARING, CR/SHF THR (*KIT2) | | 2010-2011 | | | | | 134 | 22531637 | PIN, OIL PAN LOC (8MM DIA, 12MM LONG) (DOWEL) (0.413) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 135 | 12557520 | PLUG, ENG BLK OIL GAL (CUP-.390IN OD, .040IN THK, STEEL) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 136 | 11562127 | PLUG, CYL HD OIL GAL (CUP-14.22 OD, 6.6 THK, 304SS) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 137 | 11611351 | PLUG, HEX, M28X1.25X13, 10.9 STL, GMW3044, INT DRIVER W/THD SEAL (ENG COOL HTR HOLE) | | 2010-2011 | 01 | | узнать цену | | 138 | 12590208 | SHIELD, EXH MANIF LWR HT | N (LAU) | 2010-2011 | 01 | | узнать цену | | 139 | 11588738 | BOLT, HFH, M10X1.5X30.4, 22.5 THD, 22.3 OD, 10.9, GMW3359, M- POINT (KNOCK SEN SHLD) | | 2010-2011 | 01 | | узнать цену | | 140 | 11588712 | BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (KNOCK SEN SHLD) | | 2010-2011 | 01 | | узнать цену | | 141 | 11562426 | BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 143) | | 2010-2011 | 01 | | узнать цену | | 142 | 11518792 | RETAINER, CR/SHF POSN SEN BOLT (PART OF 143) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 143 | 12615626 | SENSOR, CR/SHF POSN (INCLS 141, 142, 144) (ACDelco #213-4573) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 144 | | SEAL, CR/SHF POSN SEN (O RING) (PART OF 143) | | 2010-2011 | | | | | 145 | 12570326 | PIN, CYL HD LOC | N (LAU, LF1) | 2010-2011 | 04 | | узнать цену | | 146 | 11569584 | PLUG, ENG BLK CORE HOLE (CUP DIA 34.4MM) | N (LAU) | 2010-2011 | 02 | | узнать цену | | K01 | 12648786 | BEARING KIT, CR/SHF (#1, 2, 4 STD) (INCLS 124, 132) | N (LAU, LF1) | 2010-2011 | 03 | | узнать цену | | K02 | 12648787 | BEARING KIT, CR/SHF THR (#3 STD) (INCLS 124, 133) | N (LF1, LAU) | 2011-2011 | 01 | | узнать цену | | K03 | 12636003 | BEARING KIT, CONN ROD (INCLS 111) | N (LAU) | 2011-2011 | 06 | | узнать цену | | K04 | 92068446 | RING KIT, PSTN (INCLS 105-108) (STD) | N (LAU) | 2010-2011 | 06 | | узнать цену | | K04 | 92068447 | RING KIT, PSTN (INCLS 105-108) (.25 O.S.) | N (LAU) | 2010-2011 | 01 | | узнать цену |
|
|
