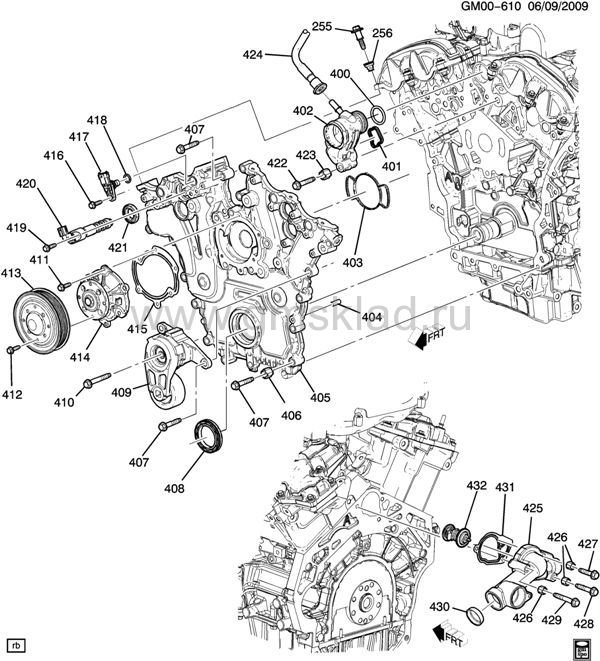

(GM00-610) 2010-2011 N ДВИГАТЕЛЬ В СБОРЕ-2.8L V6 PART 4 ПЕРЕДНЯЯ КРЫШКА И ОХЛАЖДЕНИЕ (LAU/2.8-4)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 255 | 11570020 | BOLT, CM/SHF CVR (INCLS 256) | N (LAU, LF1) | 2010-2011 | 26 | | узнать цену | | 255 | 11570020 | BOLT, CM/SHF CVR (INCLS 256) | N (LAU, MXE) | 2011-2011 | 13 | R | узнать цену | | 255 | 11570020 | BOLT, CM/SHF CVR (INCLS 256) | N (LAU, MXE) | 2011-2011 | 13 | | узнать цену | | 256 | 12595122 | INSULATOR, CM/SHF CVR BOLT (PART OF 255) | N (LAU, LF1) | 2010-2011 | 26 | | узнать цену | | 400 | 12584040 | SEAL, CLNT OTLT (O RING) (PART OF 402) (ACDelco #15-32584) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 401 | 12566429 | SEAL, WAT OTLT (PART OF 402) (ACDelco #12566429) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 402 | 12623051 | OUTLET, WAT (INCLS 400, 401, 422, 423) (ACDelco #15-11053) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 403 | 12622550 | SEAL, W/PMP (PART OF 405) (INSIDE THE FRONT COVER) (ACDelco #12622550) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 404 | 22531637 | PIN, ENG FRT CVR LOC (PART OF 405) (8MM DIA, 12MM LONG) (DOWEL) (0.413) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 405 | 12623400 | COVER, ENG FRT (W/ W/PMP) (INCLS 403, 404, 406-411, 414-418, 421) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 406 | | RETAINER, ENG FRT CVR BOLT (PART OF 405) | | 2010-2011 | | | | | 407 | 11519171 | BOLT, ENG FRT CVR (PART OF 405) (M8X1.25X50) (3.275) | N (LAU, LF1) | 2010-2011 | 22 | | узнать цену | | 408 | 12608750 | SEAL, CR/SHF FRT OIL (PART OF 405) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 409 | 12626644 | TENSIONER, DRV BELT (PART OF 405) (ACDelco #12626644) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 410 | 11588730 | BOLT, HFH, FULL BODY, 22THD, 18 OD, 8.8, GMW3359.M-PT. (PART OF 405) (ACDelco #11588730) | | 2010-2011 | 01 | | узнать цену | | 411 | 11562426 | BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 405) | | 2010-2011 | 06 | | узнать цену | | 412 | 11588940 | BOLT, HEX HD, W/CON SPR WA, M6X1X14.55, 8.45 THD, 13.3O.D., 8.8.GMW3359 (W/PMP PUL) | | 2010-2011 | 04 | | узнать цену | | 413 | 12611587 | PULLEY, W/PMP (ACDelco #12611587) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 414 | 12637479 | PUMP KIT, WAT (W/GSKT) (W/GSKT) (PART OF 405) (MUST REPLACE WATER PUMP BOLTS, BOLTS ARE SINGLE USE ONLY) (ACDelco #251-742) | N (LAU, LF1) | 2011-2011 | 01 | | узнать цену | | 415 | 12634750 | GASKET, W/PMP (PART OF 405) (ACDelco #251-2052) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 416 | 11562426 | BOLT, HFH, M6X1X25, 18 THD, 14.2 OD, 10.9 STL GMW3359 (PART OF 405) | | 2010-2011 | 04 | | узнать цену | | 417 | 12615371 | SENSOR, CM/SHF POSN (INCLS 418) (PART OF 405) (ACDelco #213-4592) | N (LAU, LF1) | 2010-2011 | 04 | | узнать цену | | 418 | | WASHER, CM/SHF POSN SEN (PART OF 405, 417) | | 2010-2011 | | | | | 419 | 11588279 | BOLT, HFH, M10X1.5X80, 26 THD, 22.3 O.D., 10.9, GM4277M (CM/SHF POSN ACTR) | | 2010-2011 | 04 | | узнать цену | | 420 | 12636175 | VALVE, CM/SHF POSN ACTR SOL | N (LAU, LF1) | 2011-2011 | 04 | | узнать цену | | 421 | 12593717 | SEAL, CM/SHF POSN ACTR SOL VLV (O RING) (PART OF 405) | N (LAU, LF1) | 2010-2011 | 04 | | узнать цену | | 422 | 11588718 | BOLT, WAT OTLT (PART OF 402) (M6X1X50) (0.206) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 423 | 12570372 | RETAINER, WAT OTLT (PART OF 402) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 424 | 55564183 | PIPE, ENG COOL AIR BL (SEE GROUP 01.000 "HOSES & PIPES/RADIATOR" FOR DETAILED ILLUSTRATED VIEW) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 425 | 12608657 | HOUSING, ENG COOL THERM (INCLS 426-432) (INCLS THERMOSTAT, HOUSING, BOLTS, GASKET, & PIPES) (ACDelco #15-81653) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 426 | 11518792 | RETAINER, ENG COOL THERM (PART OF 425) (FOR M6 BOLT, LENGTH 7MM, WALL THICKNESS 0.60, THERMOPLASTIC) (1.428) | N (LAU) | 2010-2011 | 03 | | узнать цену | | 427 | 11588714 | BOLT, HFH, M6X1X30, 22.7 THD, 14.2 OD, 8.8, GMW3359, M-PT. (PART OF 425) | | 2010-2011 | 01 | | узнать цену | | 428 | 11519972 | BOLT, ENG COOL THERM HSG (PART OF 425) (M6X1X50) (3.336) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 429 | 11519973 | BOLT, HFH, M6X1X60, 18MM THD, 14.2 OD, 8.8, 3359GMW, REDUCED BODY, MAT PT. (PART OF 425) | | 2010-2011 | 01 | | узнать цену | | 430 | | PLUG, ENG COOL THERM HSG (PART OF 425) | | 2010-2011 | | | | | 431 | 12625923 | GASKET, ENG COOL THERM HSG (PART OF 425) (ACDelco #12625923) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 432 | | THERMOSTAT, ENG COOL (PART OF 425) | | 2010-2011 | | | |
|
|
