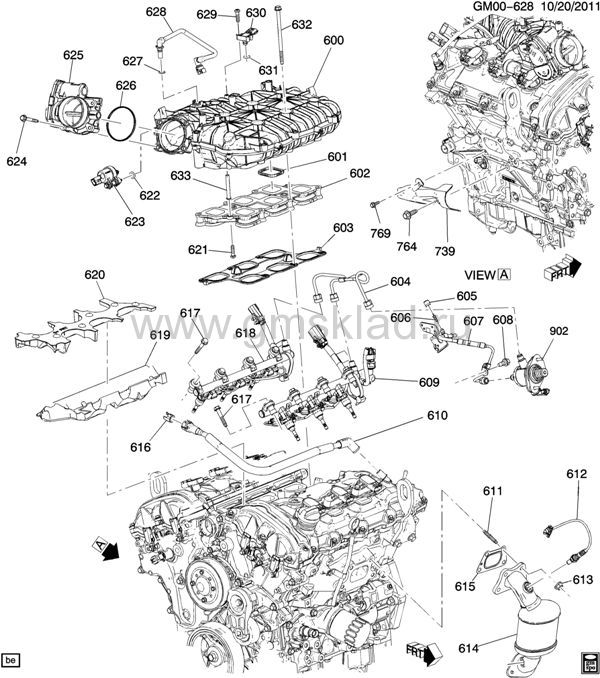

| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена |
| 600 | 12635243 | MANIFOLD, UPR INT (INCLS 601, 602, 621, 633) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 601 | | GASKET, UPR INT MANIF (PART OF 600) (*KIT1, KIT2) | | 2011-2011 | | | |
| 602 | 12611155 | MANIFOLD, LWR INT (MACH) (PART OF 600) (ACDelco #12611155) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 603 | 12609163 | GASKET, LWR INT MANIF (*KIT1) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 604 | 12639208 | PIPE, FUEL FEED INTER | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 605 | 25532662 | CAP, FUEL PRESS SERV VLV (PART OF 607) (CAP FOR PRESSURE TEST SCHRADER VALVE) (3.163) (ACDelco #214-1044) | N | 2010-2011 | 01 | | узнать цену |
| 606 | 12574525 | VALVE, FUEL PRESS SERV (PART OF 607) (SCHRADER VALVE LESS CAP) (ACDelco #12574525) | N | 2010-2011 | 01 | | узнать цену |
| 607 | 12633596 | PIPE, FUEL FEED (LOW PRESS TO PUMP INLET) (INCLS 605, 606) (@ ENGINE) (PART MUST BE REPLACED ONCE REMOVED) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 608 | 11589040 | BOLT, F/INJN FUEL FEED & RTN PIPE RET (M10X1.5X22) (4.115) | N (LF1) | 2011-2011 | 02 | | узнать цену |
| 609 | | RAIL, DIR F/INJN FUEL (SEE GROUP 03.000 "FUEL INJECTOR RAIL" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2011 | | L | |
| 610 | 12630821 | TUBE, PCV (INCLS 616) (FRESH AIR) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 611 | 11610977 | STUD, EXH MANIF FRT PIPE (-FLANGE, M10X1.5X26, M10X1.5X20) | N (LF1) | 2010-2011 | 04 | | узнать цену |
| 612 | 12612430 | SENSOR, HTD OXY (POSN 1) (ACDelco #213-4553) | N (LF1) | 2010-2011 | 02 | | узнать цену |
| 613 | 11517996 | NUT, HFH, M10X1.5, 11.2THK, 21.5 O.D., 7111M (EXH MANIF FRT PIPE) (ACDelco #11517996) | | 2010-2011 | 04 | | узнать цену |
| 614 | 20952539 | CONVERTER, 3WAY CTLTC (W/EXH RR MANIF PIPE) (SEE GROUP 03.000 "EXHAUST SYSTEM" FOR DETAILED ILLUSTRATED VIEW) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 615 | 20893953 | GASKET, EXH MANIF FRT PIPE (W/4 MTG HOLES) | N | 2010-2011 | 01 | | узнать цену |
| 616 | | RETAINER, PCV TUBE (PART OF 610) | | 2011-2011 | | | |
| 617 | 11588729 | BOLT, HEX HD, W/1.6 FLAT WA, M8X1.25X54.3, 43 THD, 16O.D., 8.8, GMW3359 (F/INJN FUEL RL) | | 2010-2011 | 08 | | узнать цену |
| 618 | | RAIL, DIR F/INJN FUEL (SEE GROUP 03.000 "FUEL INJECTOR RAIL" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2011 | | R | |
| 619 | 12647743 | SHIELD, F/INJN FUEL RL NOISE (LWR) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 620 | 12611866 | SHIELD, F/INJN FUEL RL NOISE (UPR) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 621 | 11562253 | BOLT, LWR INT MANIF (PART OF 600) (M6X2.22X24) (3.682) | N (LF1) | 2010-2011 | 04 | | узнать цену |
| 622 | | SEAL, EVAP EMIS CNSTR PURGE SOL VLV (O RING) (PART OF 623) | | 2011-2011 | | | |
| 623 | 12610560 | VALVE, EVAP EMIS CNSTR PURGE SOL (INCLS 622) (ACDelco #214-2137) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 624 | 11588718 | BOLT, THROT BODY (M6X1X50) (0.206) | N (LAU, LF1) | 2010-2011 | 04 | | узнать цену |
| 625 | 12616994 | BODY, THROT (W/THROT ACTR) (ACDelco #217-3103) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 626 | 12609162 | GASKET, THROT BODY (*KIT1) (ACDelco #40-5094) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 627 | 12616909 | SEAL, PCV HOSE FTG (O RING) (PART OF 628) (BLACK) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 628 | 12634292 | TUBE, PCV (INCLS 627) (FOUL AIR) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 629 | 11562253 | BOLT, MAP SEN (M6X2.22X24) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 630 | 12591290 | SENSOR, MAP (INCLS 631) (ACDelco #213-3842) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 631 | | SEAL, MAP SEN (PART OF 630) | | 2011-2011 | | | |
| 632 | 11588930 | BOLT, HFH, M8X1.25X145, 22 THD, 18 OD, 8.8 STL, GMW3359, M-PT (INT MANIF) | | 2010-2011 | 06 | | узнать цену |
| 633 | 12647375 | INSERT, UPR INT MANIF (PART OF 600) (93MM) | N (LF1) | 2010-2011 | 06 | | узнать цену |
| 739 | 12593759 | SHIELD, EXH MANIF LWR HT | N (LF1) | 2010-2011 | 01 | | узнать цену |
| 764 | 11588738 | BOLT, HFH, M10X1.5X30.4, 22.5 THD, 22.3 OD, 10.9, GMW3359, M- POINT (EXH MANIF LWR H/SHLD) | | 2010-2011 | 01 | | узнать цену |
| 769 | 11588712 | BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (EXH MANIF LWR H/SHLD) | | 2010-2011 | 01 | | узнать цену |
| 902 | 12641740 | PUMP, FUEL (SEE GROUP 00.000 "CYLINDER HEAD & RELATED PARTS" FOR DETAILED ILLUSTRATED VIEW) (HIGH PRESSURE) (ACDelco #43519) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| K01 | 12646459 | GASKET KIT, INT MANIF (INCLS 601, 603, 626) (ACDelco #12646459) | N (LF1) | 2010-2011 | 01 | | узнать цену |
| K02 | 12647263 | GASKET KIT, UPR INT MANIF (INCLS 601) (ACDelco #12647263) | N (LF1) | 2010-2011 | 01 | | узнать цену |
