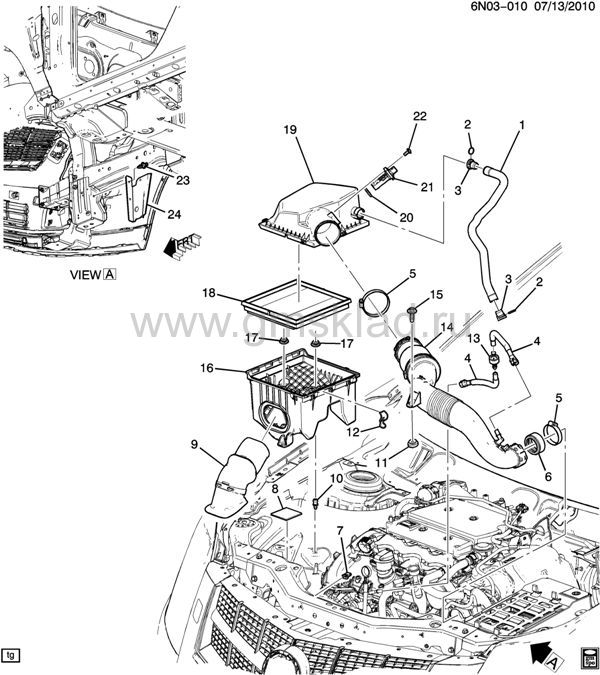

(6N03-010) 2010-2011 N СИСТЕМА ВПУСКА ВОЗДУХА (LAU/2.8-4)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20944510 | HOSE, SECD AIR INJN PUMP (INCLS 2, 3) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 002 | | SEAL, SECD AIR INJ PUMP HOSE (PART OF 1, 3) | | 2010-2011 | | | | | 003 | | CONNECTOR, SECD AIR INJN PUMP HOSE (PART OF 1) (INCLS 2) | | 2010-2011 | | | | | 004 | 55568836 | TUBE, PCV (INCLS 13) (FRESH AIR, TO AIR DUCT) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 005 | 52369248 | CLAMP, A/CL OTLT FRT DUCT (PART OF 14) (85 - 95 MM) (8.948) | N (UYI) | 2011-2011 | 01 | | узнать цену | | 005 | 52369248 | CLAMP, A/CL OTLT RR DUCT (PART OF 14) (85 - 95 MM) (8.948) | N (UYI) | 2011-2011 | 01 | | узнать цену | | 006 | 20960896 | SEAL, A/CL OTLT DUCT | N (LAU) | 2011-2011 | 01 | | узнать цену | | 007 | 11518121 | NUT, U, M6X1, MULTI THD, .5'-4.0' THK PNL (A/CL OTLT DUCT SUPT) | | 2010-2011 | 01 | | узнать цену | | 008 | 11515174 | SEAL, INT AIR DUCT (4 1/4" X 7 1/2") (TRIM AS REQ'D) (OUTBOARD) (12.941) | N | 2010-2011 | 02 | | узнать цену | | 009 | 15913320 | DUCT, FRT INT AIR | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 010 | 11570295 | RETAINER, A/CL (M6X1X28, 10 THD, 17) | N | 2010-2011 | 03 | | узнать цену | | 011 | | INSULATOR, A/CL OTLT DUCT (PART OF 14) | | 2010-2011 | | | | | 012 | 19168954 | CLIP, A/CL HSG | N (LAU, LF1) | 2010-2011 | 04 | | узнать цену | | 013 | 55561211 | VALVE, PCV (PART OF 4) (ACDelco #214-2256) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 014 | 20960895 | DUCT, A/CL OTLT (W/RESO) (INCLS 5, 11) | N | 2011-2011 | 01 | | узнать цену | | 015 | 11610199 | BOLT, HEX W/CON WA, M6X1X30, 21 THD, 17 OD, 8.8, GMW3359 (A/CL OTLT DUCT) | | 2010-2011 | 01 | | узнать цену | | 016 | 20906486 | CLEANER, AIR (INCLS 17-19) (W/O HYDROCARBON) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 017 | 12563914 | INSULATOR, A/CL HSG (PART OF 16) (MOUNT TO MID RAIL) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 018 | 20897358 | ELEMENT, A/CL (PART OF 16) (W/O HYDROCARBON) (ACDelco #A3147C) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 019 | | COVER, A/CL HSG (PART OF 16) | | 2010-2011 | | | | | 020 | | GASKET, MASS AIRFLOW SEN (PART OF 21) | | 2010-2011 | | | | | 021 | 92196278 | SENSOR, MASS AIRFLOW (INCLS 20) (ACDelco #92196278) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 022 | 15809005 | BOLT, MASS AIRFLOW SEN (D40X1.46X12, 9.5THD) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 023 | 11589295 | RETAINER, PUSH-IN, FITS10.5 HOLE, 3-6.0 THK PNL, NYLON (INT AIR SPH SHLD (PUSH IN)) | | 2010-2011 | 02 | | узнать цену | | 024 | 20807094 | SHIELD, INT AIR SPH | N (LAU) | 2010-2011 | 01 | | узнать цену |
|
|
