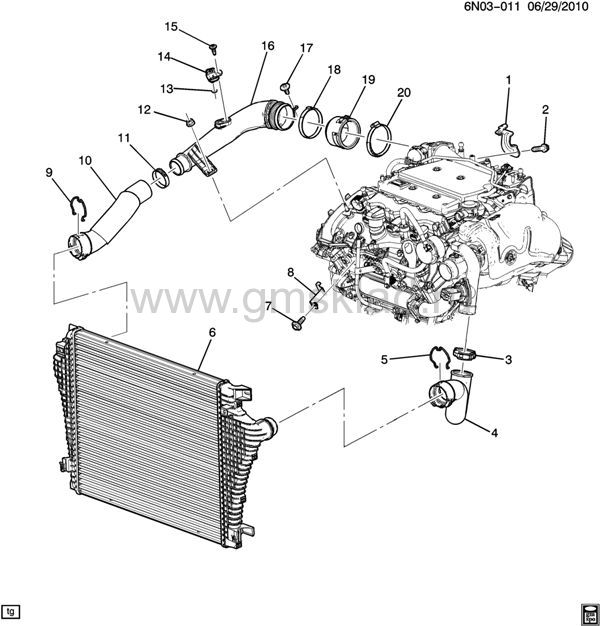

(6N03-011) 2010-2011 N СИСТЕМА ОХЛАЖДЕНИЯ ТУРБОКОМПРЕССОРА (LAU/2.8-4)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 13240173 | BRACKET, CHRG AIR CLR OTLT AIR TUBE | N (LAU) | 2010-2011 | 01 | | узнать цену | | 002 | 11900254 | BOLT, HFH, M8X1.25X29, 19 THD, 18 OD, 8.8, GMW3359, M-POINT (CHRG AIR CLR OTLT AIR TUBE) | | 2010-2011 | 01 | | узнать цену | | 003 | | CLAMP, CHRG AIR CLR INL HOSE (PART OF 4) | | 2010-2011 | | | | | 004 | 20821290 | DUCT, CHRG AIR CLR INL (INCLS 3, 5) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 005 | | RETAINER, CHRG AIR CLR (PART OF 4) | | 2010-2011 | | | | | 006 | 20926501 | COOLER, CHRG AIR (SEE GROUP 01.000 "RADIATOR MOUNTING & RELATED PARTS" FOR DETAILED ILLUSTRATED VIEW) | N (LAU) | 2011-2011 | 01 | | узнать цену | | 007 | 11588738 | BOLT, HFH, M10X1.5X30.4, 22.5 THD, 22.3 OD, 10.9, GMW3359, M- POINT (CHRG AIR CLR OTLT DUCT) | | 2010-2011 | 01 | | узнать цену | | 008 | 55556314 | BRACKET, CHRG AIR CLR OTLT DUCT | N (LAU) | 2010-2011 | 01 | | узнать цену | | 009 | | RETAINER, CHRG AIR CLR (PART OF 16) | | 2010-2011 | | | | | 010 | | HOSE, CHRG AIR CLR OTLT FRT (PART OF 16) | | 2010-2011 | | | | | 011 | | CLAMP, CHRG AIR CLR OTLT DUCT (PART OF 16) | | 2010-2011 | | | | | 012 | 11514519 | NUT, HEX W/23.75 OD CON WA, M8X1.25, 7.32THK, 9, PZOR (CHRG AIR CLR OTLT DUCT) | | 2010-2011 | 01 | | узнать цену | | 013 | 93170311 | SEAL, TURBO PRESS SEN (PART OF 14, 16) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 014 | 90423637 | SENSOR, INT AIR PRESS & TEMP (PART OF 16) (INCLS 13) (ACDelco #213-3907) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 015 | 90561306 | BOLT, CHRG AIR CLR OTLT DUCT (PART OF 16) (BLACK) (M5X2.25X18) (SCREW-PAN HD W/WA, STL) (15.024) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 015 | 11519376 | BOLT, CHRG AIR CLR OTLT DUCT (PART OF 16) (M6X1X23) (10.240) | NG (LAU) | 2010-2011 | 01 | | узнать цену | | 016 | 20821298 | DUCT, CHRG AIR CLR OTLT (INCLS 9-11, 13-15, 18-20) (ASM) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 017 | 11561674 | BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (CHRG AIR CLR OTLT DUCT) | | 2010-2011 | 01 | | узнать цену | | 018 | | CLAMP, CHRG AIR CLR OTLT DUCT (PART OF 16) | | 2010-2011 | | | | | 019 | | CONNECTOR, CHRG AIR CLR OTLT DUCT FRT (PART OF 16) | | 2010-2011 | | | | | 020 | 13240175 | CLAMP, CHRG AIR CLR OTLT DUCT (PART OF 16) | N (LAU) | 2010-2011 | 01 | | узнать цену |
|
|
