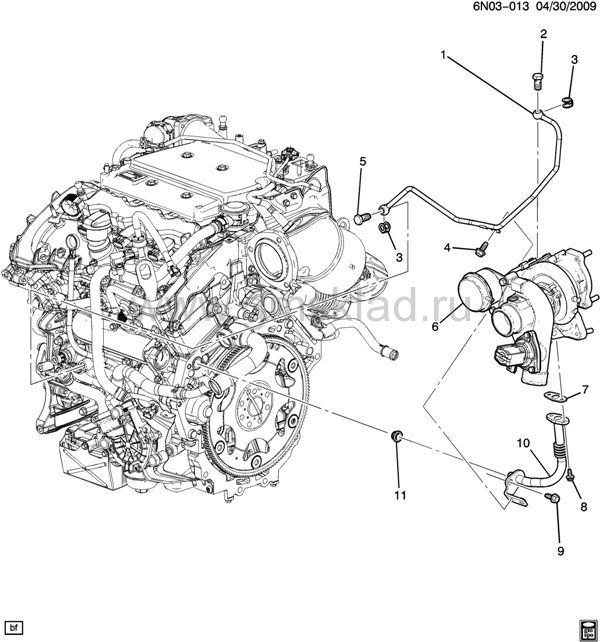

(6N03-013) 2010-2011 N СИСТЕМА СМАЗКИ ТУРБОКОМПРЕССОРА (LAU/2.8-4)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 12634817 | PIPE, TURBO OIL FEED (INCLS 2, 3, 5) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 002 | 11611014 | BOLT, TURBO OIL FEED PIPE (PART OF 1) (M12X1.5X24) (3.342) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 003 | 12626102 | GASKET, TURBO COOL FEED & RTN PIPE (BLOCK SIDE GASKET) | N (LAU) | 2010-2011 | 02 | | узнать цену | | 003 | 12633903 | GASKET, TURBO COOL FEED & RTN PIPE (TURBO SIDE GASKET) | N (LAU) | 2010-2011 | 02 | | узнать цену | | 004 | 11588711 | BOLT, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (TURBO OIL FEED PIPE) | | 2010-2011 | 01 | | узнать цену | | 005 | 55170016 | FITTING, TURBO OIL FEED PIPE (PART OF 1) (W/MAT POINT) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 006 | 12637545 | TURBOCHARGER, ENG (SEE GROUP 03.000 "TURBOCHARGER & MOUNTING" FOR DETAILED ILLUSTRATED VIEW) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 007 | 12598447 | GASKET, TURBO OIL RTN PIPE | N (LAU) | 2010-2011 | 01 | | узнать цену | | 008 | 11588711 | BOLT, HFH, M6X1X16, 10 THD, 14.2 OD, 8.8 STL, GMW3359 (TURBO OIL RTN PIPE) | | 2010-2011 | 02 | | узнать цену | | 009 | 11588738 | BOLT, HFH, M10X1.5X30.4, 22.5 THD, 22.3 OD, 10.9, GMW3359, M- POINT (TURBO OIL RTN PIPE) | | 2010-2011 | 02 | | узнать цену | | 010 | 12791584 | PIPE, TURBO OIL RTN | N (LAU) | 2010-2011 | 01 | | узнать цену | | 011 | 12575552 | SEAL, TURBO OIL RTN PIPE (O RING) | N (LAU) | 2010-2011 | 01 | | узнать цену |
|
|
