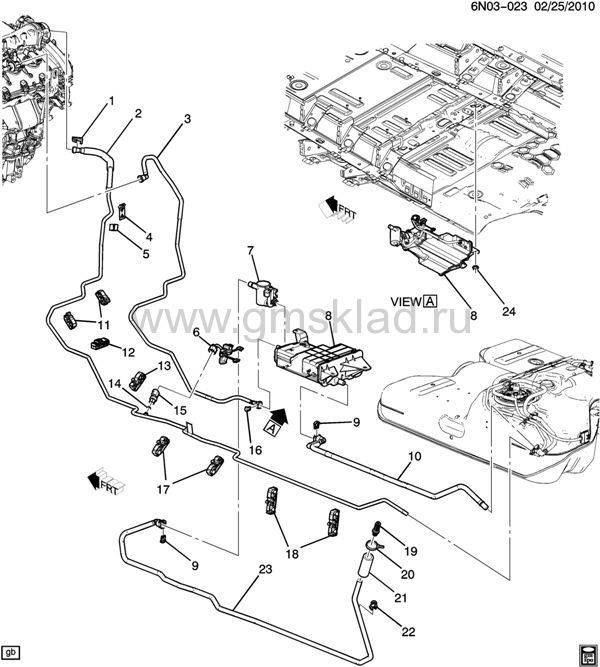

(6N03-023) 2010-2011 N СИСТЕМА ПОДАЧИ ТОПЛИВА (LAU/2.8-4, EMISSION SYSTEM NE9,NF9)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 22695614 | CLIP, FUEL FEED PIPE (13 X 19 X 36MM) (ONE TUBE) | N (LAU, LF1) | 2011-2011 | 01 | | узнать цену | | 002 | 25945052 | PIPE, FUEL FEED (INCLS 4) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 003 | 25945056 | PIPE, EVAP EMIS FRT (INCLS 16) | N (LAU) | 2011-2011 | 01 | | узнать цену | | 004 | | LABEL, FUEL FEED PIPE WRNG (PART OF 2) | | 2010-2011 | | | | | 005 | 15080402 | CLIP, FUEL FEED & EVAP EMIS PIPE (2 LINE RETAINER WITH PUSH IN CLIP) (3.162) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 006 | 20921174 | HARNESS, FUEL SDR WRG (3.115) | N (LAU, LF1, NA3, NE9, NF9) (EXPORT) | 2011-2011 | 01 | | узнать цену | | 006 | 20921174 | HARNESS, FUEL SDR WRG | N (LAU, LF1, NA3, NE9, NF9) (EXPORT) | 2011-2011 | 01 | | узнать цену | | 007 | 25949891 | FILTER, EVAP EMIS CNSTR AIR INL (ACDelco #215-708) | N26 (LAU, LF1, NA3, NE9, NF9) (EXPORT) | 2011-2011 | 01 | | узнать цену | | 008 | 25949890 | CANISTER, EVAP EMIS (W/O VENT VLV SOL) (ACDelco #215-707) | N (LAU, LF1, NA3, NE9, NF9) (EXPORT) | 2011-2011 | 01 | | узнать цену | | 008 | 25949888 | CANISTER, EVAP EMIS (W/O VENT VLV SOL) (ACDelco #215-709) | N (LAU, LF1, NQU) (EXC KX2) (EXPORT) | 2010-2011 | 01 | | узнать цену | | 009 | 21992746 | RETAINER, FUEL FEED HOSE CONN (PART OF 10, 23) (5/8 INCH QUICK CONNECT RETAINER CLIP) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 010 | 25945057 | PIPE, EVAP EMIS RR (INCLS 9) | N (LAU, LF1) | 2011-2011 | 01 | | узнать цену | | 011 | 25956681 | CLIP, FUEL FEED & EVAP EMIS PIPE | N (LAU) | 2010-2011 | 02 | | узнать цену | | 012 | 22734194 | CLIP, BRK & FUEL FEED & EVAP EMIS PIPE (HOLDS (2)3/8 & (2)3/16 PIPES TO WELD STUD) (3.162) | N | 2010-2011 | 01 | | узнать цену | | 013 | 25938683 | CLIP, FUEL FEED & EVAP EMIS PIPE (4 WAY) (4.686) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 014 | 15778699 | SEAL, FUEL PRESS SEN (O RING) (ACDelco #15778699) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 015 | 13500745 | SENSOR, FUEL PRESS (PART OF FUEL LINE) (3.682) (ACDelco #13500745) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 015 | 13500745 | SENSOR, FUEL PRESS (PART OF FUEL LINE) (ACDelco #13500745) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 016 | | RETAINER, EVAP EMIS FRT PIPE (PART OF 3) | | 2010-2011 | | | | | 017 | 25938681 | CLIP, BRK & FUEL FEED & EVAP EMIS PIPE (HOLDS (4) LINES) (W/TREE) | N (LAU, LF1) | 2010-2011 | 02 | | узнать цену | | 018 | 25938682 | CLIP, FUEL FEED & EVAP EMIS PIPE (5 WAY) (4.686) | N (LAU) | 2010-2011 | 02 | | узнать цену | | 019 | | SCREEN, F/TNK FIL PIPE (PART OF 23) | | 2010-2011 | | | | | 020 | | STRAP, EVAP EMIS HOSE (PART OF 23) | | 2010-2011 | | | | | 021 | | SLEEVE, EVAP EMIS PIPE (PART OF 23) | | 2010-2011 | | | | | 022 | 25938684 | CLIP, EVAP EMIS CNSTR VENT PIPE | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 023 | 20852704 | HOSE, EVAP EMIS CNSTR AIR INL (INCLS 9, 19-21) (ACDelco #215-697) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 024 | 11609411 | NUT, HEX W/CON WA, M6X1, 5.7 THK, 16 OD, 9, GMW3200 (EVAP EMIS) | | 2010-2011 | 02 | | узнать цену |
|
|
