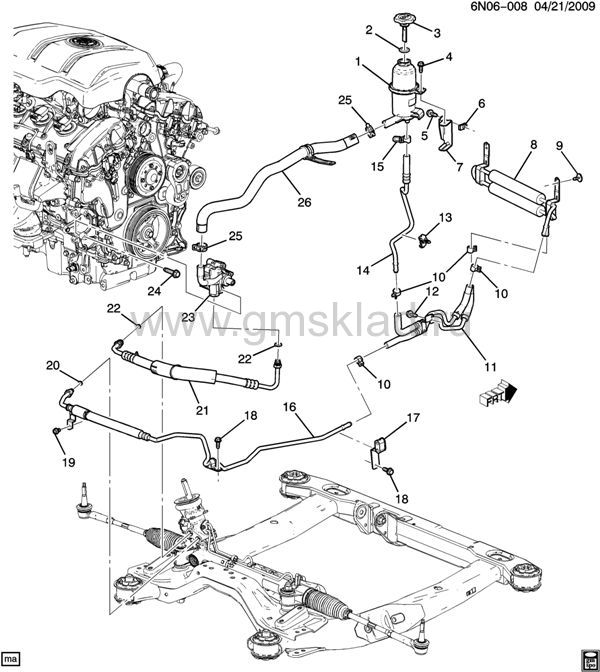

(6N06-008) 2010-2011 N МАГИСТРАЛИ НАСОСА РУЛЕВОГО УПРАВЛЕНИЯ (LAU/2.8-4)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20900120 | RESERVOIR, P/S FLUID (INCLS 2, 3) (UPPER) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 002 | | SEAL, P/S FLUID RSVR CAP (O RING) (PART OF 1, 3) | | 2010-2011 | | | | | 003 | 25995686 | CAP, P/S FLUID RSVR (PART OF 1) (INCLS 2) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 004 | 11588712 | BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR) | | 2010-2011 | 01 | | узнать цену | | 005 | 11588712 | BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID RSVR BRKT) | | 2010-2011 | 01 | | узнать цену | | 006 | 11518121 | NUT, U, M6X1, MULTI THD, .5'-4.0' THK PNL (P/S FLUID RSVR BRKT) | | 2010-2011 | 01 | | узнать цену | | 007 | 25932310 | BRACKET, P/S FLUID RSVR | N (LAU) | 2010-2011 | 01 | | узнать цену | | 008 | 20907760 | COOLER, P/S FLUID | N | 2010-2011 | 01 | | узнать цену | | 009 | 11609982 | BOLT, HEX W/FL WA, M6X1X22, 14.55 THD, 24 OD, 8.8, GMW3359, M-PT. (P/S FLUID CLR BRKT) | | 2010-2011 | 02 | | узнать цену | | 010 | 11611304 | CLAMP, SPRINGBAND, D 18.5, W 15, MTL SK-5M, FNSH MFC-A, W RETNG CLIP (PART OF 11) | | 2010-2011 | 04 | | узнать цену | | 011 | 22876334 | HOSE, P/S FLUID CLR INL & OTLT (INCLS 10) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 012 | 11588712 | BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S FLUID CLG PIPE BRKT) | | 2010-2011 | 01 | | узнать цену | | 013 | 11588853 | RETAINER - PLASTIC TREE, 5.7 DIA HOLE, 2.2 THK PNL, HOLDS 5.5 WIRE (P/S FLUID RSVR HOSE) (*KIT1) | | 2011-2011 | 01 | | узнать цену | | 014 | | HOSE, P/S FLUID RSVR INL (*KIT1) | | 2011-2011 | | | | | 015 | 11517127 | CLAMP, SPRING, 17MM-NOM, BLK (P/S FLUID RSVR INL HOSE) (*KIT1) | | 2011-2011 | 01 | | узнать цену | | 016 | | HOSE, P/S GR OTLT (*KIT1) | | 2010-2011 | | | | | 017 | | BRACKET, P/S GR OTLT PIPE INSL (*KIT1) | | 2010-2011 | | | | | 018 | 11588712 | BOLT, HFH, M6X1X20, 17.5 THD, 14.2 O.D., 8.8, GMW3359 (P/S GR OTLT HOSE BRKT) (*KIT1) | | 2010-2011 | 02 | | узнать цену | | 019 | 25622442 | BOLT, P/S GR OTLT HOSE BRKT (M8X1.25X13) (*KIT1) (4.785) | N (LAU, LF1) | 2010-2011 | 01 | | узнать цену | | 020 | 20935184 | SEAL, P/S GR OTLT HOSE (GEAR END) (*KIT1) | N | 2010-2011 | 02 | | узнать цену | | 021 | 22792606 | HOSE, P/S GR INL (INCLS 22) (FOR USE W/ DUEL RESERVOIR SYSTEM) | N (LAU) | 2010-2011 | 01 | | узнать цену | | 022 | 20935184 | SEAL, P/S GR INL HOSE (O RING) (GEAR END) | N | 2010-2011 | AR | | узнать цену | | 023 | 13574902 | PUMP, P/S (FOR USE W/DUAL RESERVOIR SYSTEM) (ACDelco #13574902) | N (LAU) | 2011-2011 | 01 | | узнать цену | | 024 | 11519980 | BOLT, HFH, M8X1.25X40, 22 THD, 18 OD, 8.8, GMW3359, 6MM MATPOINT. (P/S PUMP) | | 2010-2011 | 03 | | узнать цену | | 025 | | CLAMP, P/S FLUID RSVR OTLT HOSE (PART OF 26) | | 2010-2011 | | | | | 026 | 20953765 | HOSE, P/S FLUID RSVR OTLT (INCLS 25) (FOR USE W/ DUEL RESERVOIR SYSTEM) | N (LAU) | 2011-2011 | 01 | | узнать цену | | K01 | 22876335 | HOSE, P/S GR OTLT & P/S FLUID RSVR INL (INCLS 13-20) (FOR USE W/ DUEL RESERVOIR SYSTEM) | N (LAU) | 2010-2011 | 01 | | узнать цену |
|
|
