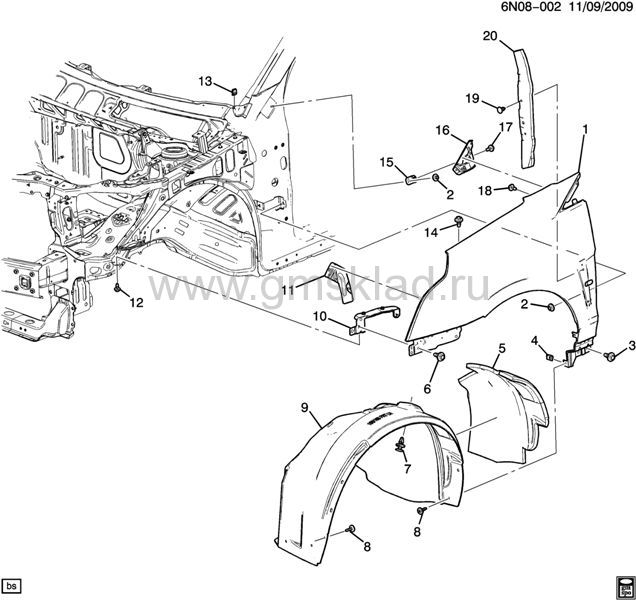

(6N08-002) 2010-2011 N КРЫЛО И КОЛЕСНАЯ АРКА/ПЕРЕДНЯЯ ЧАСТЬ
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15909263 | FENDER, FRT (INCLS 11, 15-17) | N | 2010-2011 | 01 | R | узнать цену | | 001 | 22860722 | FENDER, FRT (INCLS 11, 15-17) | N | 2010-2011 | 01 | L | узнать цену | | 002 | 11514517 | NUT, HEX, W/CON SPR WA, M6X1, 5.7THK, 18 O.D., 9, 7111M (F/FDR RR CTR BRKT) | | 2010-2011 | 02 | | узнать цену | | 003 | 11561674 | BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (F/FDR FRT LWR REINF) | | 2010-2011 | 04 | | узнать цену | | 004 | 11513599 | NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (FRT W/H LNR) (ACDelco #11513599) | | 2010-2011 | 04 | | узнать цену | | 005 | | INSULATOR, FRT W/H PNL UPR RR (PART OF 9) | | 2010-2011 | | | | | 006 | 11561674 | BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (F/FDR LWR) | | 2010-2011 | 04 | | узнать цену | | 007 | 11589289 | RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (FRT W/H LNR) | | 2010-2011 | 06 | | узнать цену | | 008 | 11609762 | SCREW, RND HD W/FL WA, M4.2X1.41X25, 17 OD, 18 THD, STL PER ISO2702, GMW42 (FRT W/H LNR) | | 2010-2011 | 15 | | узнать цену | | 009 | 22868772 | LINER, FRT W/H (INCLS 5) | N | 2010-2011 | 01 | L | узнать цену | | 009 | 22868774 | LINER, FRT W/H (INCLS 5) | N | 2010-2011 | 01 | R | узнать цену | | 010 | 20882124 | BRACKET, F/FDR FRT LWR (USE T/W QTY 2 ADDITIONAL 8MM NUTS TO ATTACH TO W/H FENDER BRKT) | N | 2010-2011 | 01 | L | узнать цену | | 010 | 20882125 | BRACKET, F/FDR FRT LWR (USE T/W QTY 2 ADDITIONAL 8MM NUTS TO ATTACH TO W/H FENDER BRKT) | N | 2010-2011 | 01 | R | узнать цену | | 011 | 20884506 | BRACE, F/FDR LWR (PART OF 1) | N | 2010-2011 | 01 | L | узнать цену | | 011 | 20884507 | BRACE, F/FDR LWR (PART OF 1) | N | 2010-2011 | 01 | R | узнать цену | | 012 | 11561674 | BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (F/FDR FRT LWR BRKT) | | 2010-2011 | 06 | | узнать цену | | 013 | 11513599 | NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (F/FDR UPR BR) (ACDelco #11513599) | | 2010-2011 | 02 | | узнать цену | | 014 | 11561674 | BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (F/FDR UPR) | | 2010-2011 | 04 | | узнать цену | | 015 | 20906918 | BRACKET, F/FDR RR UPR (PART OF 1) | N | 2010-2011 | 02 | | узнать цену | | 016 | 20802742 | BRACKET, F/FDR RR UPR BRKT (PART OF 1) | N | 2010-2011 | 01 | L | узнать цену | | 016 | 20802743 | BRACKET, F/FDR RR UPR BRKT (PART OF 1) | N | 2010-2011 | 01 | R | узнать цену | | 017 | 11561674 | BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (PART OF 1) | | 2010-2011 | 02 | | узнать цену | | 018 | 11519838 | SCREW, PAN HD W/FL WA, M4.2X1.41X13, 8.15 O.D., ABHL PT, 6010M, NO (F/FDR UPR BR) | | 2010-2011 | 02 | | узнать цену | | 019 | 01605396 | RETAINER, PUSH-IN, FITS .250 HOLE, .92 LG.700-OD NYLON BLACK (F/FDR INSL) | | 2010-2011 | 04 | | узнать цену | | 020 | 22873722 | INSULATOR, F/FDR | N | 2011-2011 | 01 | R | узнать цену | | 020 | 22873723 | INSULATOR, F/FDR | N | 2011-2011 | 01 | L | узнать цену |
|
|
