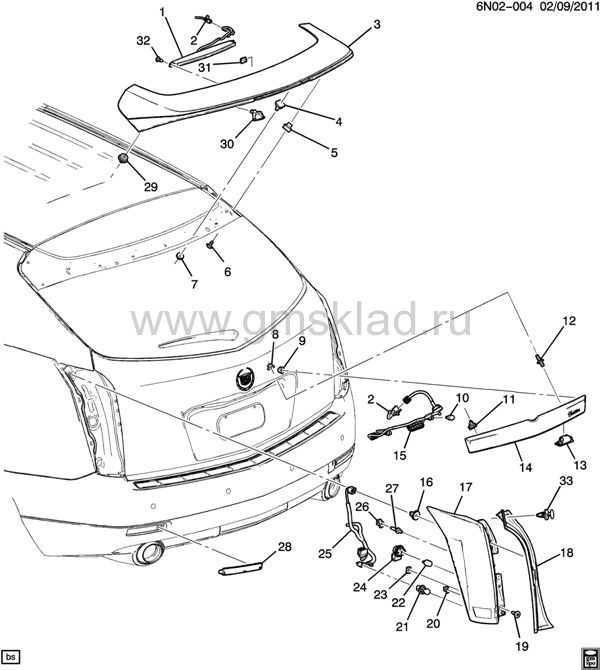

(6N02-004) 2010-2013 N ФАРЫ ЗАДНИЕ
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 15890904 | LAMP, HIGH MT STOP | N | 2010-2013 | 01 | | узнать цену | | 002 | | HARNESS, L/GATE WRG (SEE GROUP 13.000 "WIRING HARNESS/LIFTGATE" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 003 | 22940401 | SPOILER, R/END (INCLS 4, 5, 29, 31) (PAINT TO MATCH) | NG | 2010-2013 | 01 | | узнать цену | | 004 | 11570701 | STUD, R/END SPLR (PART OF 3) (M6X1X20, 8 THD) (BOLT - T, 8.8, GMW4205, 15.5 SQ HD W/WASHER.) (12.183) | NG | 2010-2013 | 05 | | узнать цену | | 005 | 11570097 | NUT, U-TYPE, M6X1, 21.4X15, 11.7 C/E, SAE 1050 STL, GMW3359. (PART OF 3) | | 2010-2013 | 04 | | узнать цену | | 006 | 11570773 | SCREW, PANWASH, M6X1X19, 9.55 THD, 20 OD, 8.8 STL, GMW4205, M-PT, T30 (R/END SPLR) | | 2010-2013 | 04 | | узнать цену | | 007 | 11519612 | NUT, HX CON SPR WA W/SEALER M6X1.0 6H GM510M (9) STL GM7111M (R/END SPLR) | | 2010-2013 | 05 | | узнать цену | | 008 | 11519612 | NUT, HX CON SPR WA W/SEALER M6X1.0 6H GM510M (9) STL GM7111M (L/GATE CTR APLQ) | | 2010-2013 | 03 | | узнать цену | | 009 | 11609546 | NUT, 6.3 DIA STUD W/SEALER, CARBON SPRG STL, GMW3179M (L/GATE CTR APLQ) | | 2010-2013 | 02 | | узнать цену | | 010 | 13500812 | BULB, RR LIC PLT LP (PART OF 13) (TRADE #W5WLL) (ACDelco #13500812) | N | 2010-2013 | 01 | | узнать цену | | 011 | 15881912 | RETAINER, L/GATE CTR APLQ (PART OF 14) (17.215) | NG | 2010-2013 | 01 | | узнать цену | | 012 | 11570746 | BOLT, L/GATE CTR APLQ (PART OF 14) (FLANGE, M6X1X17, M6.3X1.69X12, 15 OD, 8.8) | NG | 2010-2013 | 03 | | узнать цену | | 013 | 13502178 | LAMP, RR LIC PLT (INCLS 10) | N | 2010-2013 | 02 | | узнать цену | | 014 | 22762876 | APPLIQUE, L/GATE CTR (W/RR LIC PLT LP) (INCLS 11, 12) (12.182) | NG (UVC) | 2010-2012 | 01 | | узнать цену | | 014 | 22762877 | APPLIQUE, L/GATE CTR (W/RR LIC PLT LP) (INCLS 11, 12) (12.182) | NG (EXC UVC) | 2010-2012 | 01 | | узнать цену | | 015 | 20888156 | HARNESS, RR LIC PLT LP WRG | N (UVC) | 2010-2012 | 01 | | узнать цену | | 016 | 11561987 | RETAINER, T/LP (TOP) | N | 2010-2013 | 02 | | узнать цену | | 017 | 22774014 | LAMP, TAIL (INCLS 20-22, 24, 27) | N (EXC T89) | 2010-2013 | 01 | L | узнать цену | | 017 | 22774015 | LAMP, TAIL (INCLS 20-22, 24, 27) | N (EXC T89) | 2010-2013 | 01 | R | узнать цену | | 017 | 22774012 | LAMP, TAIL (INCLS 20-22, 24, 27) | N (T89) (EXPORT) | 2010-2013 | 01 | L | узнать цену | | 017 | 22774013 | LAMP, TAIL (INCLS 20-22, 24, 27) | N (T89) (EXPORT) | 2010-2013 | 01 | R | узнать цену | | 018 | 20853503 | MOLDING, T/LP | N (EXC T89) | 2010-2013 | 01 | R | узнать цену | | 018 | 20853504 | MOLDING, T/LP | N (EXC T89) | 2010-2013 | 01 | L | узнать цену | | 018 | 20853501 | MOLDING, T/LP | N (T89) (EXPORT) | 2010-2013 | 01 | R | узнать цену | | 018 | 20853502 | MOLDING, T/LP | N (T89) (EXPORT) | 2010-2013 | 01 | L | узнать цену | | 019 | 11609539 | SCREW, RD CROWNED WA HD, M4.2X1.41X16, STL ISO 2702, GMW4205 (T/LP) | | 2010-2013 | 04 | | узнать цену | | 020 | 20813433 | RETAINER, T/LP (PART OF 17) (LOWER) | N | 2010-2013 | 02 | | узнать цену | | 021 | 15782706 | BULB, B/U LP (PART OF 17) (CLEAR) (ACDelco #15782706) | N (EXC T89) | 2010-2013 | 02 | | узнать цену | | 022 | 15829331 | BULB, T/SIG (PART OF 17) (TRADE # WY21W) (2.596) (ACDelco #15829331) | N (EXPORT) | 2010-2013 | 02 | | узнать цену | | 022 | 15821754 | BULB, T/SIG (PART OF 17) (TRADE 7440) (8.991) (ACDelco #15821754) | N (EXC T89) | 2010-2013 | 02 | | узнать цену | | 022 | 15829331 | BULB, T/SIG (PART OF 17) (TRADE # WY21W) (2.596) (ACDelco #15829331) (SERV CMP OF LAMP KIT 22773651) | N | 2011-2013 | 02 | | узнать цену | | 023 | 11610510 | NUT, PUSH-IN, M4.2X1.41, 0.7-2.15 PNL THK, SAE 1050-65, GMW3359 W/BLK SEAL (T/LP) | | 2010-2013 | 04 | | узнать цену | | 024 | 25984639 | SOCKET, RR T/SIG LP (PART OF 17) (DOMESTIC) (ACDelco #LS273) | N | 2010-2013 | 01 | | узнать цену | | 024 | 25984640 | SOCKET, RR T/SIG LP (PART OF 17) (EXPORT) (ACDelco #LS274) | N (EXPORT) | 2010-2013 | 01 | | узнать цену | | 025 | | HARNESS, BODY WRG (SEE GROUP 13.000 "WIRING HARNESS/BODY" FOR DETAILED ILLUSTRATED VIEW) | | 2010-2013 | | | | | 026 | 25879751 | RETAINER, T/LP (MIDDLE) | N | 2010-2013 | 02 | | узнать цену | | 027 | 25879750 | STUD, T/LP (PART OF 17) | N | 2010-2013 | 02 | | узнать цену | | 028 | 25881881 | REFLECTOR, RR | N | 2010-2013 | 01 | L | узнать цену | | 028 | 25881882 | REFLECTOR, RR | N | 2010-2013 | 01 | R | узнать цену | | 029 | 10369649 | RETAINER, R/END SPLR (PART OF 3) (14.683) | N | 2010-2013 | 08 | | узнать цену | | 030 | 15949210 | NOZZLE, R/WDO WA | N | 2010-2013 | 01 | | узнать цену | | 031 | 11513599 | NUT, U-TYPE, M4.2X1.41, 0.65-3.80 PNL THK, PZ (PART OF 3) (ACDelco #11513599) | | 2010-2013 | 02 | | узнать цену | | 032 | 11609522 | BOLT, R/END SPLR (11.655) | N | 2010-2013 | 02 | | узнать цену | | 033 | 11589289 | RETAINER, PUSH-IN, FITS 6.5 HOLE, 2-4.5 THK PNL, NYLON 6/6 PER GMP.PA66.0 (T/LP MLDG) | | 2010-2013 | 02 | | узнать цену |
|
|
