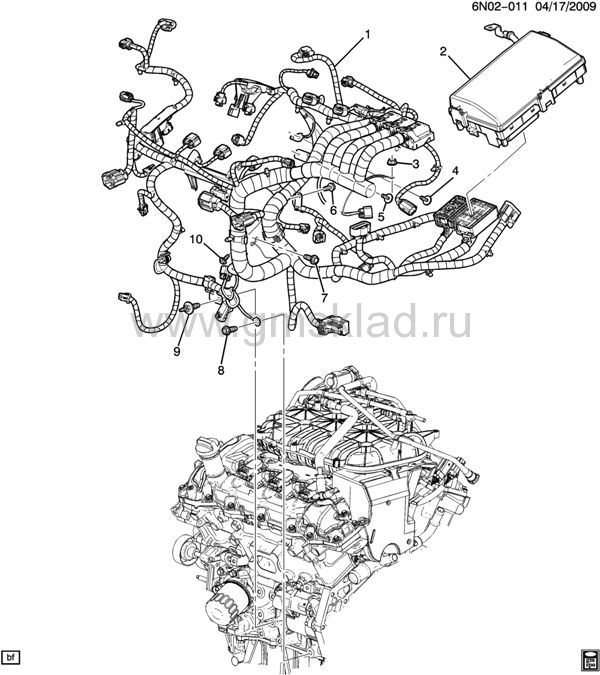

(6N02-011) 2012-2013 N ЖГУТ ПРОВОДОВ ДВИГАТЕЛЯ (LFW/3.0-5,LFX/3.6-3)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 20896237 | HARNESS, ENG WRG (LABELED 20896237 OR 13784015) (FOR 2ND DES SEE 22917936) | NG (LFW, LFX) (1ST DES) | 2012-2012 | 01 | | узнать цену | | 001 | 22917936 | HARNESS, ENG WRG (NOT LABELED 20896237 OR 13784015) (FOR 1ST DES SEE 20896237) | NG (LFW, LFX) (2ND DES) | 2012-2012 | 01 | | узнать цену | | 002 | | BLOCK, ENG WRG HARN JUNC (SEE GROUP 02.000 "RELAYS/ENGINE COMPARTMENT" FOR DETAIELD ILLUSTRATED VIEW) | | 2012-2013 | | | | | 003 | 11609716 | NUT, HFH, M6X1X5.85, 14.2 OD, 9 STL, GMW3200 (ENG WRG HARN BAT LEAD) | | 2012-2013 | 01 | | узнать цену | | 004 | 11609669 | BOLT, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG WRG HARN GND) | | 2012-2013 | 01 | | узнать цену | | 005 | 11609669 | BOLT, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG WRG HARN BRKT) | | 2012-2013 | 01 | | узнать цену | | 006 | 11588564 | BOLT, HEX W/FL WA, M8X1.25X25, 15.85 THD, 17 OD, 9.8, GMW3200M, MACH, MAT-PT (ENG WRG HARN BRKT) | | 2012-2013 | 01 | | узнать цену | | 007 | 11562004 | BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ENG WRG HARN ECM GND) | | 2012-2013 | 01 | | узнать цену | | 008 | 11562004 | BOLT, HEX W/FL WA, M10X1.5X30, 19 THD, 20 OD, 8.8, GMW3200, MACH, M-PT (ENG WRG HARN GND) | | 2012-2013 | 01 | | узнать цену | | 009 | 11570985 | BOLT, ENG WRG HARN (HEX W/CON WA, M10X1.5X35, M6X1X16, 28 OD, 10.9, GMW3200) | N | 2012-2013 | 01 | | узнать цену | | 010 | 11609669 | BOLT, HX HD FLT WA, M6X1.0X25.0, GM500M (9.8) STL, GMW3200 (ENG WRG HARN CLIP BRKT) | | 2012-2013 | 01 | | узнать цену |
|
|
