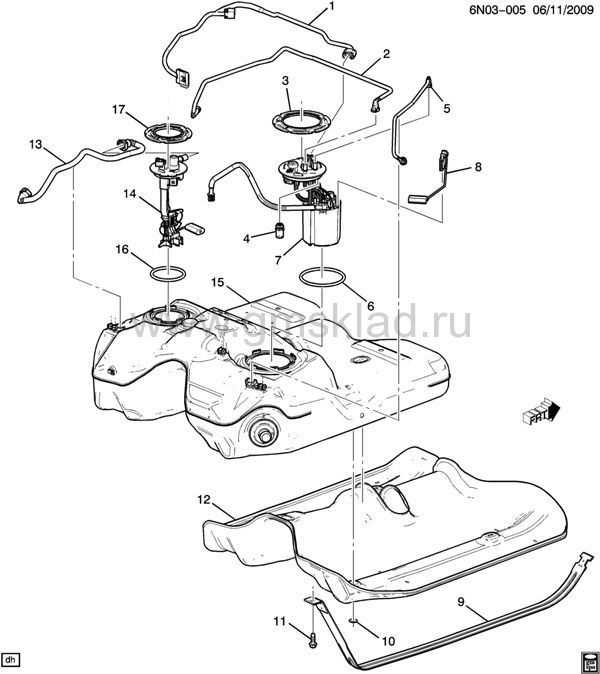

(6N03-005) 2010-2013 N ТОПЛИВНЫЙ БАК (EXC EXTERNAL FILTER KX2)
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25896666 | HARNESS, CHAS WRG | N | 2012-2013 | 01 | | узнать цену | | 002 | 25896667 | PIPE, FUEL FEED (ATTACHES TO TOP OF FUEL TANK) | N (FHO, FHS) | 2012-2013 | 01 | | узнать цену | | 003 | 10325852 | CAM, FUEL SDR (130 MM OPENING CAM LOCK RING) (3.115) (ACDelco #TR26) | N (FHO, FHS) | 2012-2013 | 01 | | узнать цену | | 004 | | VALVE, F/TNK VENT (PART OF 7) | | 2010-2013 | | | | | 005 | 25896938 | HOSE, F/TNK FIL EVAP EMIS | N (FHS, NT7, NU5) | 2012-2013 | 01 | | узнать цену | | 005 | 25896937 | HOSE, F/TNK FIL EVAP EMIS | N (FHO, NA3, NE9) (EXC KX2) (EXPORT) | 2012-2013 | 01 | | узнать цену | | 005 | 25896938 | HOSE, F/TNK FIL EVAP EMIS | N (FHO, NQU) (EXC KX2) (EXPORT) | 2012-2013 | 01 | | узнать цену | | 005 | 25896938 | HOSE, F/TNK FIL EVAP EMIS | N (FHS, NF9) (EXPORT) | 2012-2013 | 01 | | узнать цену | | 006 | 22682111 | SEAL, F/PMP (O RING) (PART OF 7) (APPROX SIZE:147.5MM X 6MM) (ACDelco #G41) | N | 2010-2013 | 01 | | узнать цену | | 007 | 13578368 | MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) | N (FHS, NF9, NT7, NU5) | 2012-2012 | 01 | | узнать цену | | 007 | 13578368 | MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (3.107) | N (FHS, NF9, NT7, NU5) | 2012-2012 | 01 | | узнать цену | | 007 | 20919757 | MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (ACDelco #M10282) | N (FHO, NA3, NE9) (EXC KX2) (EXPORT) | 2012-2013 | 01 | | узнать цену | | 007 | 20919757 | MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (3.107) (ACDelco #M10282) | N (FHO, NA3, NE9) (EXC KX2) (EXPORT) | 2012-2013 | 01 | | узнать цену | | 007 | 13578360 | MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (ACDelco #M100026) | N (FHO, NQU) (EXC KX2) | 2012-2013 | 01 | | узнать цену | | 007 | 13578360 | MODULE KIT, F/TNK F/PMP (W/O FUEL LVL SEN) (INCLS 4, 6) (3.107) (ACDelco #M100026) | N (FHO, NQU) (EXC KX2) | 2012-2013 | 01 | | узнать цену | | 008 | 13581735 | SENSOR KIT, FUEL LVL (INCLS 6) (ACDelco #SK1396) | N | 2010-2013 | 01 | | узнать цену | | 009 | 22755976 | STRAP, F/TNK | N | 2010-2013 | 02 | | узнать цену | | 010 | 10009923 | NUT, BOLT RETAINING SPRING, M8X1.25, 25 O.D., ZOR (F/TNK SHLD) | | 2010-2013 | 04 | | узнать цену | | 011 | 11515767 | BOLT, HFH, M10X1.5X35, 32THD, 22.3 O.D., MACH, 10.9, 7114M (F/TNK STRP) (T/W 12345493) | | 2010-2013 | 02 | | узнать цену | | 012 | 15871538 | SHIELD, F/TNK HT | N | 2012-2013 | 01 | | узнать цену | | 013 | 25896681 | HOSE, EVAP EMIS | N | 2012-2013 | 01 | | узнать цену | | 014 | 13580096 | SENDER KIT, FUEL (INCLS 16) (SECONDARY) (ACDelco #SK1393) | N (FHO, NQU) (EXC KX2) | 2012-2013 | 01 | | узнать цену | | 014 | 13580096 | SENDER KIT, FUEL (INCLS 16) (SECONDARY) (ACDelco #SK1393) | N (FHS, NF9, NT7, NU5) | 2012-2012 | 01 | | узнать цену | | 014 | 20820553 | SENDER KIT, FUEL (INCLS 16) (SECONDARY) (ACDelco #SK1341) | N (FHO, NA3, NE9) (EXC KX2) | 2012-2012 | 01 | | узнать цену | | 015 | 22744668 | TANK, FUEL (MUST USE T/W SENDER KIT 13580096) | N (FHS, NF9, NT7, NU5) | 2012-2012 | 01 | | узнать цену | | 015 | 22744668 | TANK, FUEL (MUST USE T/W SENDER KIT 13580096) | N (FHO, NQU) (EXC KX2) | 2012-2012 | 01 | | узнать цену | | 015 | 22773762 | TANK, FUEL | N (FHO, NA3, NE9) (EXC KX2) | 2012-2012 | 01 | | узнать цену | | 016 | 15776433 | SEAL, F/PMP (O RING) (PART OF 14) (APPROX SIZE:112.5X6.0) (3.112) (ACDelco #G48) | N | 2010-2013 | 01 | | узнать цену | | 016 | 22682111 | SEAL, F/PMP (O RING) (PART OF 14) (APPROX SIZE:147.5MM X 6MM) (ACDelco #G41) | N | 2010-2013 | 01 | | узнать цену | | 017 | 15776431 | CAM, FUEL SDR (95 MM TANK OPENING CAM LOCK RING) (ACDelco #15776431) | N (FHO, FHS) | 2012-2013 | 01 | | узнать цену |
|
|
