Каталог запчастей > cadillac > SRX 2012 > 05 - ТОРМОЗА-ЗАДНИЙ МОСТ-КАРДАННЫЙ ВАЛ-КОЛЕСА > (6N05-003) 2010-2013 N КРЕПЛЕНИЕ КАРДАННОГО ВАЛА (ALL-WHEEL DRIVE F46)

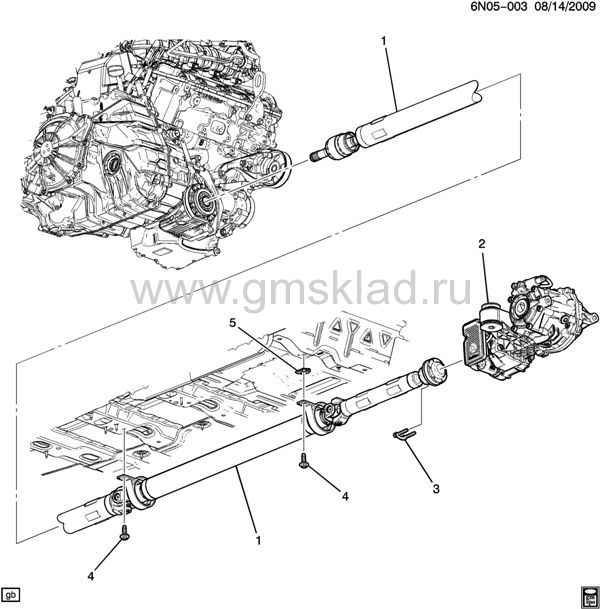

(6N05-003) 2010-2013 N КРЕПЛЕНИЕ КАРДАННОГО ВАЛА (ALL-WHEEL DRIVE F46)
Рис. Номер Описание Примен. Номенкл. Кол. Р. Цена 001 22885388 SHAFT, PROP (INCLS 3) (SEE GROUP 05.000 "PROP SHAFT"" FOR DETAILED ILLUSTRATED VIEW)N (F46 )2010-2013 01 узнать цену 002 22824224 CARRIER, DIFF (CODE 0105 4224) (SEE GROUP 05.000 "DIFFERENTIAL CARRIER/REAR" FOR DETAILED ILLUSTRATED VIEW) (FOR VEH W/O INBOARD SLINGERS ORDER T/W SEAL 20986535 (QTY 2))N (LFW , F46 )2012-2012 01 узнать цену 002 22931259 CARRIER, DIFF (CODE 0104 1259 4223) (SEE GROUP 05.000 "DIFFERENTIAL CARRIER/REAR" FOR DETAILED ILLUSTRATED VIEW) (FOR VEH W/O INBOARD AXLE SHF SLINGERS & W/ BLK AXLE SHF SEALS ORDER T/W 20986535 (QTY 2)N (LFX , F46 )2012-2012 01 узнать цену 002 22931260 CARRIER, DIFF (CODE 1260) (SEE GROUP 05.000 "DIFFERENTIAL CARRIER/REAR" FOR DETAILED ILLUSTRATED VIEW) (FOR VEH W/O INBOARD AXLE SHF SLINGERS & W/ BLK AXLE SHF SEALS ORDER T/W 20986535 (QTY 2)N (LFW , F46 )2012-2012 01 узнать цену 003 20813566 RETAINER, PROP SHF RR (PART OF 1)N (F46 )2010-2013 03 узнать цену 004 11589166 BOLT, HEX W/CON WA, M10X1.5X39.8, 25.45 THD, 28 OD, 10.9, GMW3359, M-PT (PROP SHF BRG SUPT) 2010-2013 04 узнать цену 005 12575210 SHIM, PROP SHF CTR SUPT BRG (PURPLE AND WHITE) (OVERALL HEIGHT 3MM)N (F46 )2010-2013 02 узнать цену
