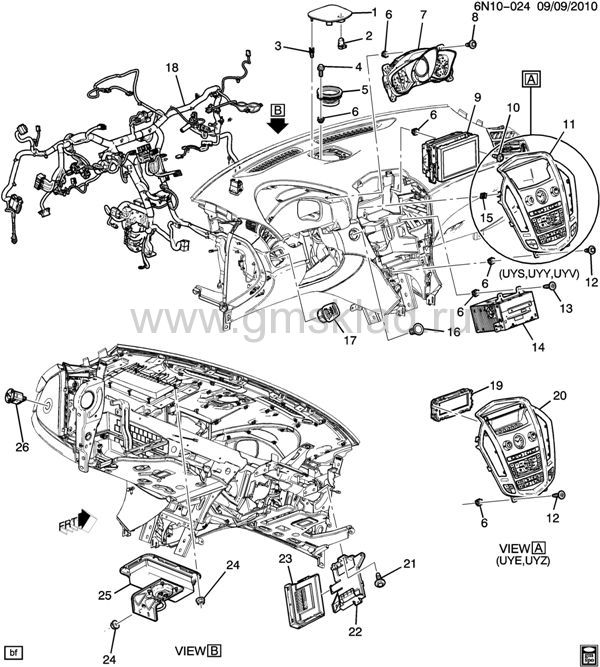

(6N10-024) 2011-2012 N ПРИБОРНАЯ ПАНЕЛЬ PART 3 ELECTRICAL
| Рис. | Номер | Описание | Примен. | Номенкл. | Кол. | Р. | Цена | | 001 | 25926825 | GRILLE, RDO FRT SPKR (INCLS 2, 3) (BLACK) | N (4AA, 4AJ, 4A5) | 2011-2012 | 01 | | узнать цену | | 001 | 20900341 | GRILLE, RDO FRT SPKR (INCLS 2, 3) (BROWNSTONE) | N (4AF) | 2011-2012 | 01 | | узнать цену | | 002 | 13578465 | SENSOR, SUN LOAD TEMP & DAYTIME RUNNING LP AMB LGT (PART OF 1) (ACDelco #13578465) | N | 2011-2012 | 01 | | узнать цену | | 003 | 11588650 | CLIP, 12X14X16.6, GM4345M (PART OF 1) | | 2011-2012 | 04 | | узнать цену | | 004 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO FRT CTR SPKR) | | 2011-2012 | 02 | | узнать цену | | 005 | 25840446 | SPEAKER, RDO FRT CTR (ACDelco #25840446) | N (UQA, UQS) | 2011-2012 | 01 | | узнать цену | | 006 | 11610157 | NUT, PNL, M4.2X1.41, 8.5X11.9, 2.3-2.8 PNL, FITS 11.2X9.2 HOLE, 1050, GMW33 (I/P CARR) (10.701) | | 2011-2012 | 40 | | узнать цену | | 007 | 22786454 | CLUSTER, INST (ACDelco #22786454) | N (LFW, LFX, U30) (EXC UC2, U19) | 2012-2012 | 01 | | узнать цену | | 007 | 22786455 | CLUSTER, INST (ACDelco #22786455) | N (LFW, LFX, UC2, U19, U30) (EXPORT) | 2012-2012 | 01 | | узнать цену | | 008 | 11589012 | BOLT, HWH, M4.2X1.41X25, 16.4 THD, 12.5 OD, GM6010M STL, GMW4205 (INST CSTR) (9.665) | | 2011-2012 | 04 | | узнать цену | | 009 | | DISPLAY, DRVR INFO (SEE GROUP 09.000 "RADIO MOUNTING & DISPLAY" FOR DETAILED ILLUSTRATED VIEW) (9.680) | | 2011-2012 | | | | | 010 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (DRVR INFO DISPLAY) | | 2011-2012 | 02 | | узнать цену | | 011 | | CONTROL, AM/FM STEREO & CLK & CD PLYR RDO (INCLS 15) (SEE GROUP 09.000 "RADIO MOUNTING & DISPLAY" FOR DETAILED ILLUSTRATED VIEW) (ARGENT) | | 2011-2012 | | | | | 012 | 11589015 | BOLT, HWH W/FL WA M4.2X1.41X20, 12.5 O.D., DOG PT, 6010M, 7253M (RDO CONT) | | 2011-2012 | 02 | | узнать цену | | 013 | 11609457 | SCREW, ROUNDWA, M4.2X1.41X20, 14.1 THD, 11.35 OD, 6010M, GMW4205, TAP, (RDO) | | 2011-2012 | 04 | | узнать цену | | 014 | | RADIO, AM/FM STEREO & VIDEO DISC PLYR & NAVN&MP3&HARD DR (SEE GROUP 09.000 "RADIO MOUNTING & DISPLAY" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2012 | | | | | 015 | | CLIP, STEREO & CLK RDO (PART OF 11, 20) | | 2011-2012 | | | | | 016 | 20911718 | SWITCH, IGN & START (ACDelco #20911718) | NG | 2011-2012 | 01 | | узнать цену | | 017 | 20888228 | SWITCH, HDLP (ARGENT) | N (LHD) (EXC T79, T84, T96) | 2011-2012 | 01 | | узнать цену | | 017 | 20888243 | SWITCH, FOG LP & HDLP (ARGENT) (ACDelco #20888243) | N (LHD, T96) (EXC T79, T84) | 2011-2012 | 01 | | узнать цену | | 017 | 22753504 | SWITCH, FOG LP & HDLP (ACDelco #22753504) (LABELED 22753504) | N (CV5, LHD, T85) (EXPORT) | 2011-2012 | 01 | | узнать цену | | 017 | 20888246 | SWITCH, FOG LP & HDLP (ARGENT) (ACDelco #20888246) | N (LHD, T79, T84, T96) (EXPORT) | 2011-2012 | 01 | | узнать цену | | 017 | 20888249 | SWITCH, FOG LP & HDLP (ARGENT) (ACDelco #20888249) | N (LHD, T79, T96) (EXC T84) (EXPORT) | 2011-2012 | 01 | | узнать цену | | 018 | | HARNESS, I/P WRG (SEE GROUP 02.000 "WIRING HARNESS/INSTRUMENT PANEL" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2012 | | | | | 019 | | DISPLAY, DRVR INFO (SEE GROUP 09.000 "RADIO MOUNTING & DISPLAY" FOR DETAILED ILLUSTRATED VIEW) | | 2011-2012 | | | | | 020 | | CONTROL, AM/FM STEREO & CLK & CD PLYR RDO (INCLS 15) (SEE GROUP 09.000 "RADIO MOUNTING & DISPLAY" FOR DETAILED ILLUSTRATED VIEW) (ARGENT) | | 2011-2012 | | | | | 021 | 11561674 | BOLT, HEX W/FL WA, M6X1X20, 12 THD, 24 OD, 9.8, GMW3359, M-PT (BCM BRKT) | | 2011-2012 | 02 | | узнать цену | | 022 | 25824019 | BRACKET, BCM | N (LHD) | 2011-2012 | 01 | | узнать цену | | 023 | 13580696 | MODULE, BODY CONT (SEE GROUP 02.000 "MODULE/BODY CONTROL" FOR DETAILED ILLUSTRATED VIEW) (ACDelco #13580696) | N | 2012-2012 | 01 | | узнать цену | | 023 | 13580696 | MODULE, BODY CONT (SEE GROUP 02.000 "MODULE/BODY CONTROL" FOR DETAILED ILLUSTRATED VIEW) (2.560) (ACDelco #13580696) | N | 2012-2012 | 01 | | узнать цену | | 024 | 11570142 | NUT, I/P AIRBAG | N | 2011-2012 | 08 | | узнать цену | | 025 | 22803596 | AIRBAG, I/P | N (AY0) (EXC CV3, EF7, Z49) | 2012-2012 | 01 | | узнать цену | | 025 | 22814346 | AIRBAG, I/P | N (AY0, CV3, EF7, Z49) | 2012-2012 | 01 | | узнать цену | | 026 | 13268602 | SWITCH, I/P AIRBAG (BLACK) | N (C99) (EXPORT) | 2011-2012 | 01 | | узнать цену |
|
|
